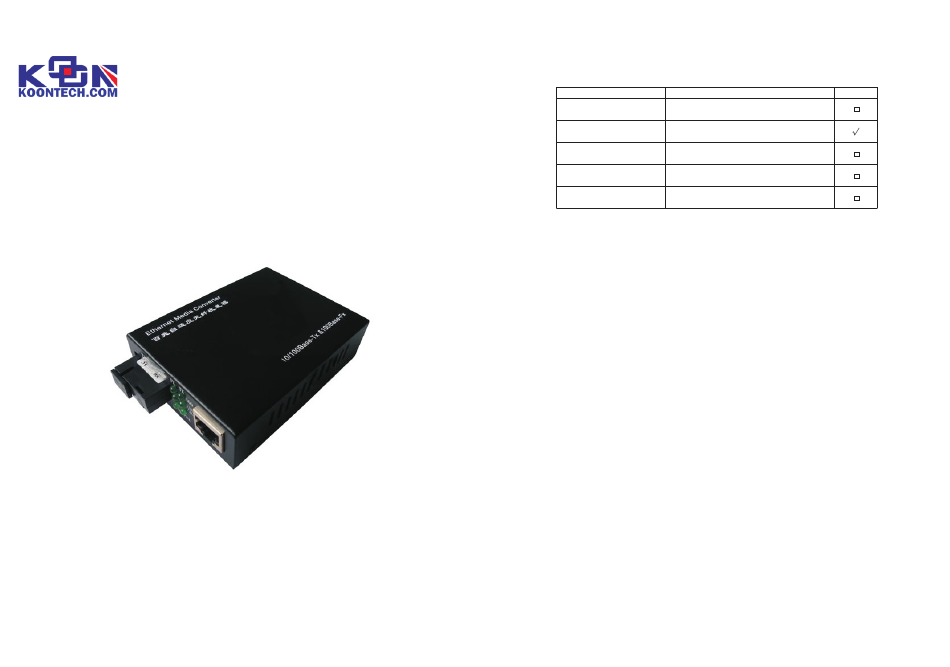

10/100M Fiber Media Converter
(external power)
Model:
Brief introduction
Many thanks for purchasing Fast Ethernet optical transceiver! This product supports
IEEE802.3UI100Base-Tx/Fx protocol, as well as full duplex and half duplex mode. This
manual is for adaptive 100M, 10M/100M transceivers. The following purchasing guide is
for customer's reference.
Purchasing guide for optical transceivers
Fax:0086755 29790278
www.koontech.com
A3
Model
10100E-MCM-2
10100E-SCM-25
10100E-SCM-40
10100E-SCM-60
10100E-SCM-100
Installation
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical length of 100 meter. It
features the function of automatically identifying the through line and cross wire
(10/100M).
Fiber interface
SC/ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX.
When the two sets of optical transceiver are interfaced or connected to switch with fiber
interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for
single optical fiber).
2. Connection
The network device (work station, hub or switch) with RJ-45 interface is connected to
RJ-45 jack of optical transceiver through twisted-pair. And the multi/single mode fiber is
connected to SC/ST fiber interface of the optical transceiver. Then switch on. The
corresponding LED is on for correct connection.(See the table below for the LED indicator
lamp)
1
Specifications
10/100M adaptive, multi mode 2km,
10/100M adaptive, single mode 25km,
SC
10/100M adaptive, single mode 40km,
SC
10/100M adaptive, single mode 60km,
SC
10/100M adaptive, single mode 100km,
SC
