Summary of Contents for Dust Right Downdraft Table

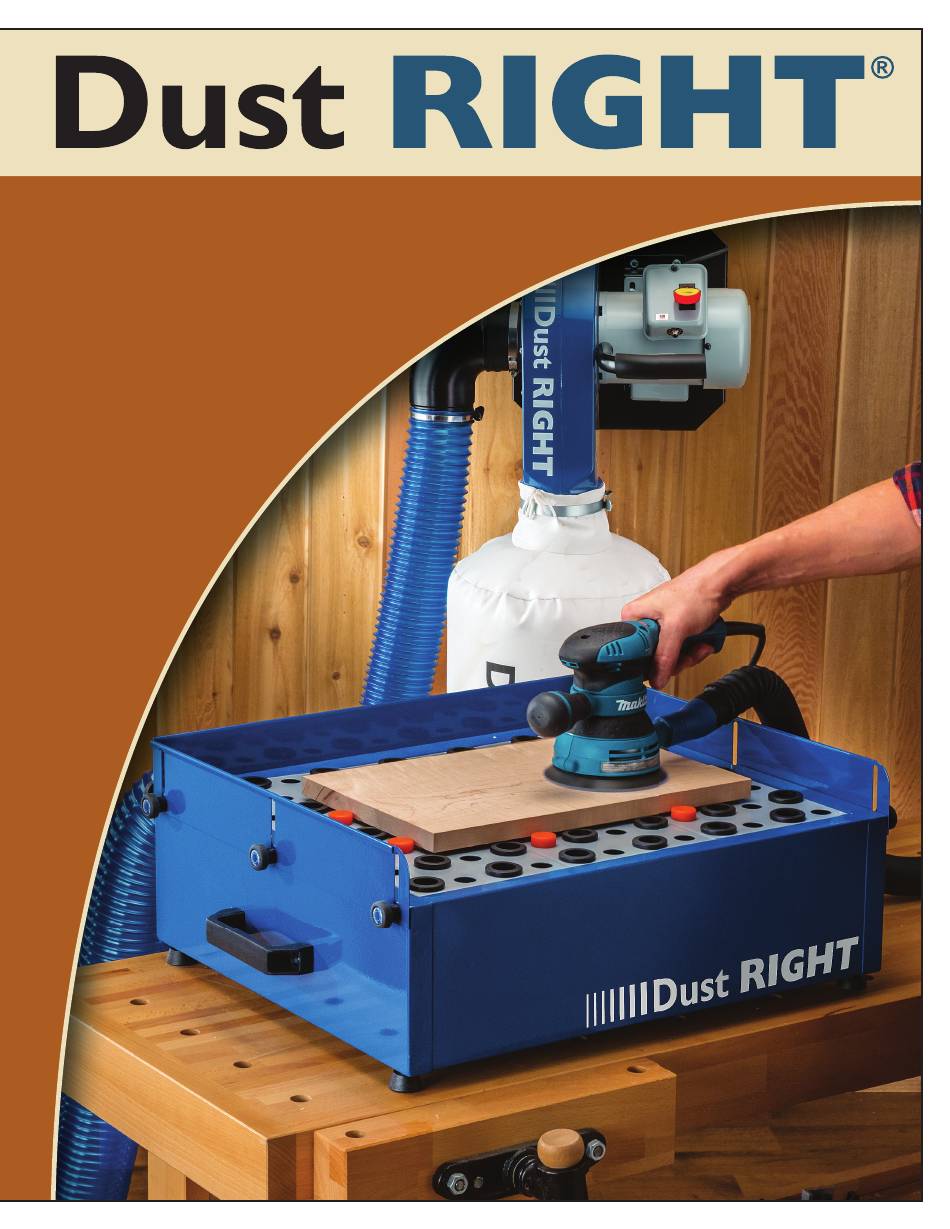

- Page 1 Downdraft Table Assembly Instructions Review full instruction manual prior to use for important safety information. Always check Rockler.com to confi rm that you are using the most recent manual version for your product.
- Page 2 GENERAL SAFETY WARNINGS This product is designed for specific applications as defined in the instructions and should not be modified and/or used for any other applications. Before using the Dust Right Downdraft Table, read, understand and follow all ® instructions and safety information provided. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 3 Dust Port Assembly PARTS LIST Quantity Quantity 1 Case 9 Rubber Grommets 2 Leveling Foot 10 Handle 3 Adjustment Nut 11 Lock Knob 4 Dust Port 12 Stopper Bolt 5 Right Edge Lip 13 Stopper Nut 6 Left Edge Lip 14 Large Pan-head Screw 7 Rear Edge Lip 15 Small Pan-head Screw...
- Page 4 Downdraft Plates in the Case. Check Rockler.com for updates. If you have further questions, please 2. If your workpiece won’t fit within the Downdraft Table, contact our Technical Support Department at 1-800-260-9663 you can lower the Right and Left Edge Lip (4 and 5) and or support@rockler.com...
