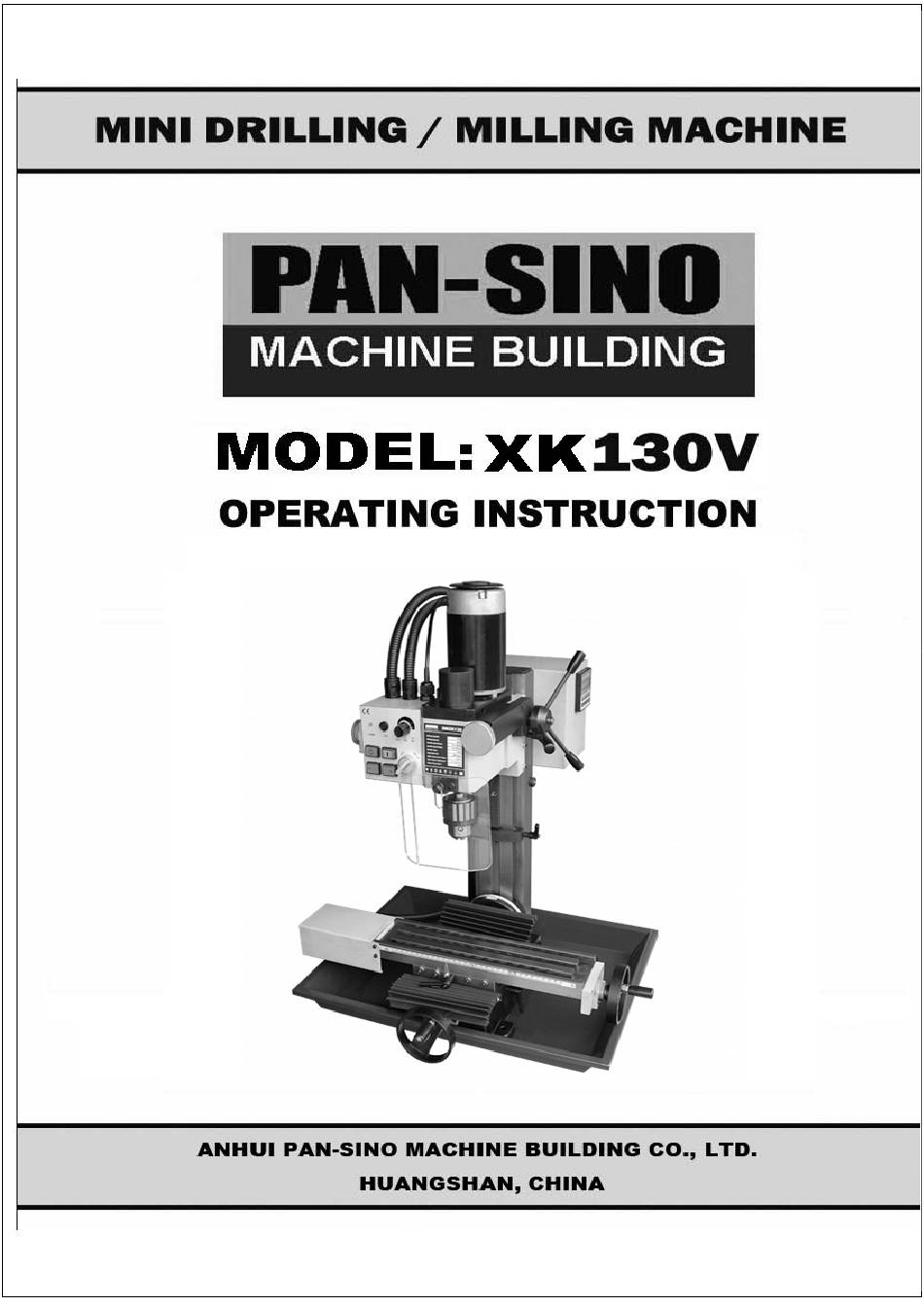

Summary of Contents for Pan-Sino XK130V
-
Page 2: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES. CONNECT your machine ONLY to the matched and specified power source. ... -
Page 3: Specific Safety Instructions
SPECIFIC SAFETY INSTRUCTIONS This machine is designed for drilling, deep milling and face milling of small pieces with a limit size of approx. 12” x 8” x 8”. It is highly recommended that you read this manual carefully before operating this machine. ... - Page 4 XK130V – FEATURES A： 550W MOTOR B：SPEED ADJUSTABLE BOADD C：FINE FEEDING WHEEL D：CONTROL BOX E：EMERGENCY SWITCH F：ELECTRICAL BOX G：SPINDLE H：COLUMN I：LIMIT BLOCK J：BALANCE MECHANISM K：WORKING TABLE L：HANDLE WHEEL M：SLIDE SADDLE N：STEP MOTOR + COVER O：CROSS FEED WHEEL P：BASE...

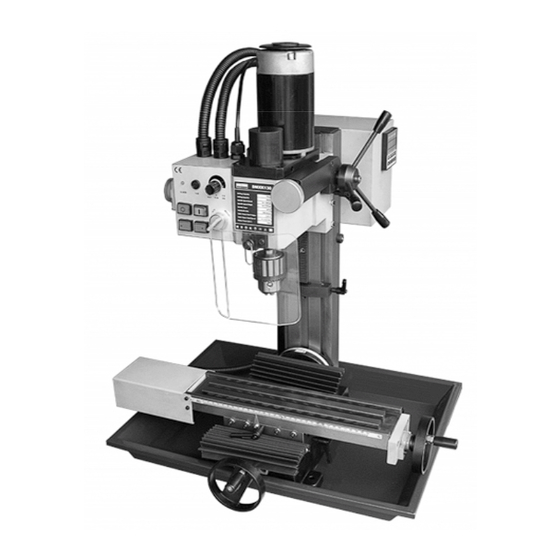

- Page 5 The XK130V Mini Milling / Drilling Machine has multiple functions on either face milling or drilling and there are various sizes and kinds or cutters that can be used with this machine.
- Page 6 XK130V – STANDARD ACCESSORIES Description Large Wrench S: 36 Drill Chuck & Taper Shank Oil Can Fixing Pin L Hex. Wrench S: 3, 4, 5, Socket Head Wrench D: 45 – 52 Double End Wrench 8-10, 14-17, 17-19 Drill Chuck Holder...
- Page 7 Disconnect the machine from the power source with the plug before servicing and when changing accessories. XK130V – MACHINE INSTALLATION MACHINE LOCATION & SET UP The machine should be fixed on the working table with four hexagon holts. Please install it to an appropriate location in order to meet with the precision requirements of the machine.
- Page 8 (4) Pay close attention when selecting your spot to ensure that there is enough room around the machine for the cross feed & longitudinal hand wheel can be extended during future use. (5) Adjust the machine accordingly and affix to the worktable with 4 M10 bolts & nuts. CHECK THE FOLLOWING BEFORE SWITCHING YOUR MACHINE ON (1) Remove all fixtures that were used while initial set up of your machine took place.
- Page 9 XK130V – MECHANISM ADJUSTMENT INSTALATION OF THE TAPER SHANK (1) Turn the main power off before replacing the cutter. (2) Pull out the protective cover (a) (3) Wipe the spindle sleeve and the taper shank from any debris or dirt.
- Page 10 (C) Variable Speed Control Knob (D) Fuse Socket Note – After using the Emergency Stop control, it will be necessary to reset the spindle ON and RPM control knob, and the spindle rotation toggle switch XK130V – FEEDING SPEED ADJUST STEP MOTOR CONTROLLER...
-
Page 11: Mechanism Adjustment
MECHANISM ADJUSTMENT TEST RUN & SPINDLE BREAK IN The CJ(X)9510 has two spindle speeds: Low – 0 ~ 1100 & High – 0 ~ 2500 RPM. It is important to break the machine in properly before consistently using your machine. This will ensure better overall performance. Once you have read this entire manual and have familiarized yourself with the machine, you can begin the process. -
Page 12: Travel Adjustment
MECHANISM ADJUSTMENT TRAVEL ADJUSTMENT Using the limit block you can control the traveling of the spindle box. (1) Loosen the handle (a) beside the limit block (2) Adjust the limit block in position (3) Tighten the handle (4) The travel position can be referred to the measurement guide of the column ADJUST THE ANGLE OF THE COLUMN (1) Turn the main power off before making this adjustment (2) Hold the column with your hands in order to prevent the column from free fall once it is loose. -
Page 13: Miter Wedge Adjustment
MITER WEDGE ADJUSTMENT After long term use & contact motion to the machine function, errors may occur due to relative surface motion. The miter wedge acts as an interface on each slide face. In order to eliminate this error, make use of the adjusting screw by keeping pressure between two machine parts (example –... - Page 14 OPERATIONS & TECHNIQUES METHOD OF OPERATION – DRILLING & DEEP MILLING (1) Install the appropriate tool and tighten & make sure your adjustments are firm. (Make sure the power is turned to OFF at this time) (2) Select an appropriate speed level. WHEN THE SPINDLE IS RUNNING, DO NOT CHANGE THE SPEED BETWEEN HIGH &...
- Page 15 Power Feeding of Working Table Control of working table (see circuit diagram #1) 1. Working table traveled at left and right directions by step-motr(220V/2.4N.m) drive or manual. The operator should select the switches button against requirement. By step-motor drive, is tobe controlled step-motor by programmer controller.
-
Page 16: Inspection During Operation
OPERATIONS & TECHNIQUES INSPECTION DURING OPERATION During operation it is important to be aware at all times not only of your work piece and machine but of your surroundings. The machine will not perform to the best of its abilities under the following conditions. -
Page 17: Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM... -
Page 18: Maintenance
MAINTENANCE LUBRICATION In order to ensure precision and maintenance of your machine, you must keep your machine properly lubricated. Part of your standard accessories there is an oil can, you can use this to lubricate your machine. It is recommended that you use two to three drops on all contact points shown in the diagram below with ISO 68 or SAE 20W oil or similar lubricant. - Page 19 To get the most out of your machine, it is imperative that you maintain it. Daily, weekly, monthly and yearly maintenance is highly recommended and keeping a log of your maintenance is also recommended. DAILY MAINTENANCE (1) Inspect each operation part to ensure the condition of lubrication. (2) Ensure that the mounting bolts are secure.
-
Page 20: Assembly Diagram
ASSEMBLY DIAGRAM... - Page 21 ASSEMBLY DIAGRAM...
- Page 22 ASSEMBLY DIAGRAM...
-
Page 23: Parts Listing
PARTS LISTING... - Page 24 PARTS LISTING...
