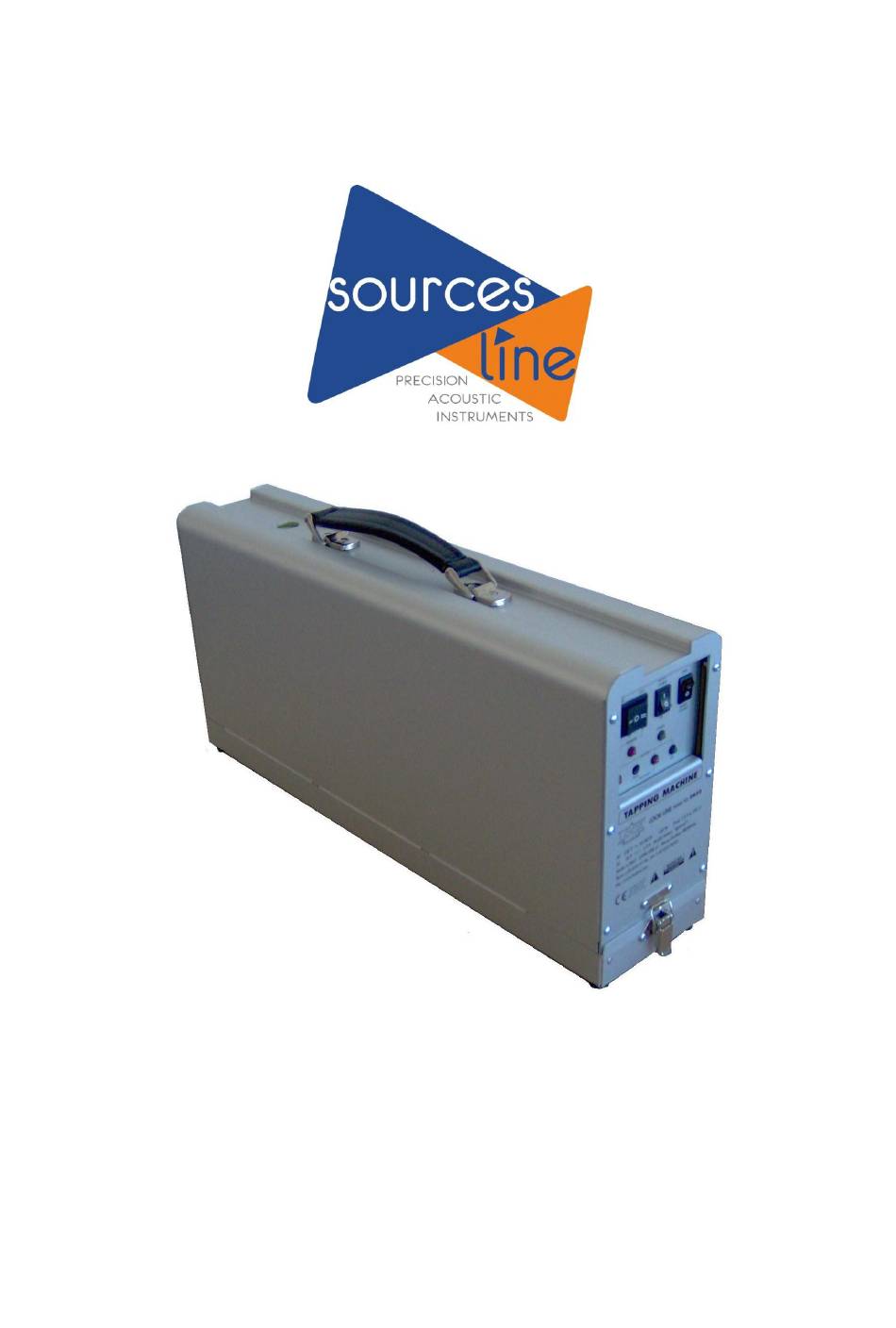

ELECTROMAGNETIC TAPPING MACHINE
EM 50
(rev.
)
IV
(High precision impact system)
Owner's manual
(small)
Thank you for purchasing our electromagnetic tapping machine SOURCES LINE EM 50.
To guarantee the correct working and the best performance of the machine, please read this
manual carefully before activating the appliance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM 50 and is the answer not in the manual?

Questions and answers

Summary of Contents for SOURCES LINE EM 50

  • Page 1 (High precision impact system) Owner’s manual (small) Thank you for purchasing our electromagnetic tapping machine SOURCES LINE EM 50. To guarantee the correct working and the best performance of the machine, please read this manual carefully before activating the appliance.

  • Page 2: Precautions Before Use

    (Select the mains voltage AC 115v / 230v using the Switch below) HANDLING When you don’t use the “EM 50 Tapping Machine, switch off the button (n.1) on the front panel and ”put it into the “flight case” or the padded transport bag .

  • Page 3: Specifications

    (inserted within VDE electricity supply AC “rear side” near to battery doorway). -1 pieces :6 A POLYSWITC(auto-restore fuse) inserted within the Ni-MH Battery Pack STANDARD EQUIPEMENT - EM 50: (Tapping Machine). - CABAC-EM1/EM2: (AC 115v/ 230 v electrical cable) : Plug to VDE (4-5 meter) - O.MAN-EM50: Owner’s manual: (small) OPTIONAL ACCESSORIES / SPARE PARTS - RC 50: (Kit Remote Control) Tx + Rx (R.F.
  • Page 4 TURN THE TAPPING MACHINE ON - Unhook the two clips, open the Aluminium Bottom Carter, and remove it. - Select the AC Mains voltage of your country 115v / 230v (see red selector located at the bottom) - Open completely the three support bearings as in the photo...
  • Page 5 (see photo) POSITION OF THE MACHINE DURING USE Avoid putting EM 50 near sources of heat or in dusty places, with low temperatures or humidity. Place EM 50 on the floor to test with attention. To remove the machine, don’t drag it on the floor, but raise it avoiding possible damages to the hammers that normally lean on the floor.

  • Page 6: Front Panel

    FRONT PANEL 1) SWITCH ON BUTTON Press it to switch on the machine. To the left it is to “BATTERY DC”, to the right it is to “(115v) 230 v AC “ 2) SWITCH TO CHARGE THE BATTERY PACK To charge the (optional) battery pack , you need to press this switch and the switch n. 1 ( AC 230 v ) 3) START SWITCH / REMOTE CONTROL Selector to select the type of functioning, manual or remote-controlled.
  • Page 7 To clean the hammers use a cotton cloth and alcohol. The best results from the tapping machine SOURCES LINE EM 50 are obtained when you test floors that are very uniform and horizontal. ( pict. 1) Using the bidirectional level on the generator, choose ,if possible, points to test with good building characteristics.
  • Page 8 12 hours. When the charge finishes, the internal circuit of the Tapping Machine SOURCES LINE EM 50, disconnects automatically, and the green led ( N.9) turns on . ATTENTION : For a good operation close well the connectors to three poles before turning the instrument Remove the “Battery Pack”...
  • Page 9 INFORMATION ABOUT THE FUNCTIONING AND THE MAINTENANCE OF THE BATTERIES Ni-MH batteries, used in the Tapping Machine, can work for some years, but just if used correctly. Their life is longer if they are used regularly and in the correct way, instead if they are used a few times the life of the batteries will be shorter.
  • Page 10 CHECK OF THE CHARGE OF THE Ni-MH BATTERY Through the Voltmeter placed on the rear panel ( near the AC 115/230V socket input) and pushing the right button it will be possible to measure the Battery Pack potential difference. Just in case of continuous functioning(switch n.3 on START side; or after having turned the device On using the starting button with the “optional”...
  • Page 11 ( apart from the hammers). It does not require any kind of maintenance. Another important feature of EM 50 is that it has small vibrations because the lifting of the hammers is very soft. The mechanical models are operated by an electrical engine that moves some cams that, to lift the hammers, strike against them creating dangerous vibrations.

  • Page 12: Warranty

    1) The obligations of SOURCES LINE are limited to the repairing of the failures. The substitution or repairing of the faulty parts is subordinated to its final decision. 2) All the repairs under guarantee must be made by SOURCES LINE or by an authorized Technical services centre. The repairs made at...

  • Page 13: Declaration Of Ce Conformity

    -EN 60065 (06/2004) + A1 (01/2007): Audio video and similar electronic apparatus. Safety requirements. Relating to Electromagnetic Compatibility 2004/108/EC, conformity is proven by compliance with the following standards: EN 55024 (09-1998) + A1 (10-2001)+A2(01-2003)+S1(03-2008) : Immunity EN 55022 (01-2009): Emission Date 01/04/2011 The legal representative of SOURCES LINE Maurizio Bergamini...
  • Page 14 Model name : EM50 (TM50-XM50-BAS004) Type of equipment : Tapping machine For tests of sound insulation of floor tapping, declares that “ EM 50” answers the following prescriptions of these regulations: ISO: 140 / 10140 / 16283 / 717; DIN 52210; BS 5821; ASTM E 492...
