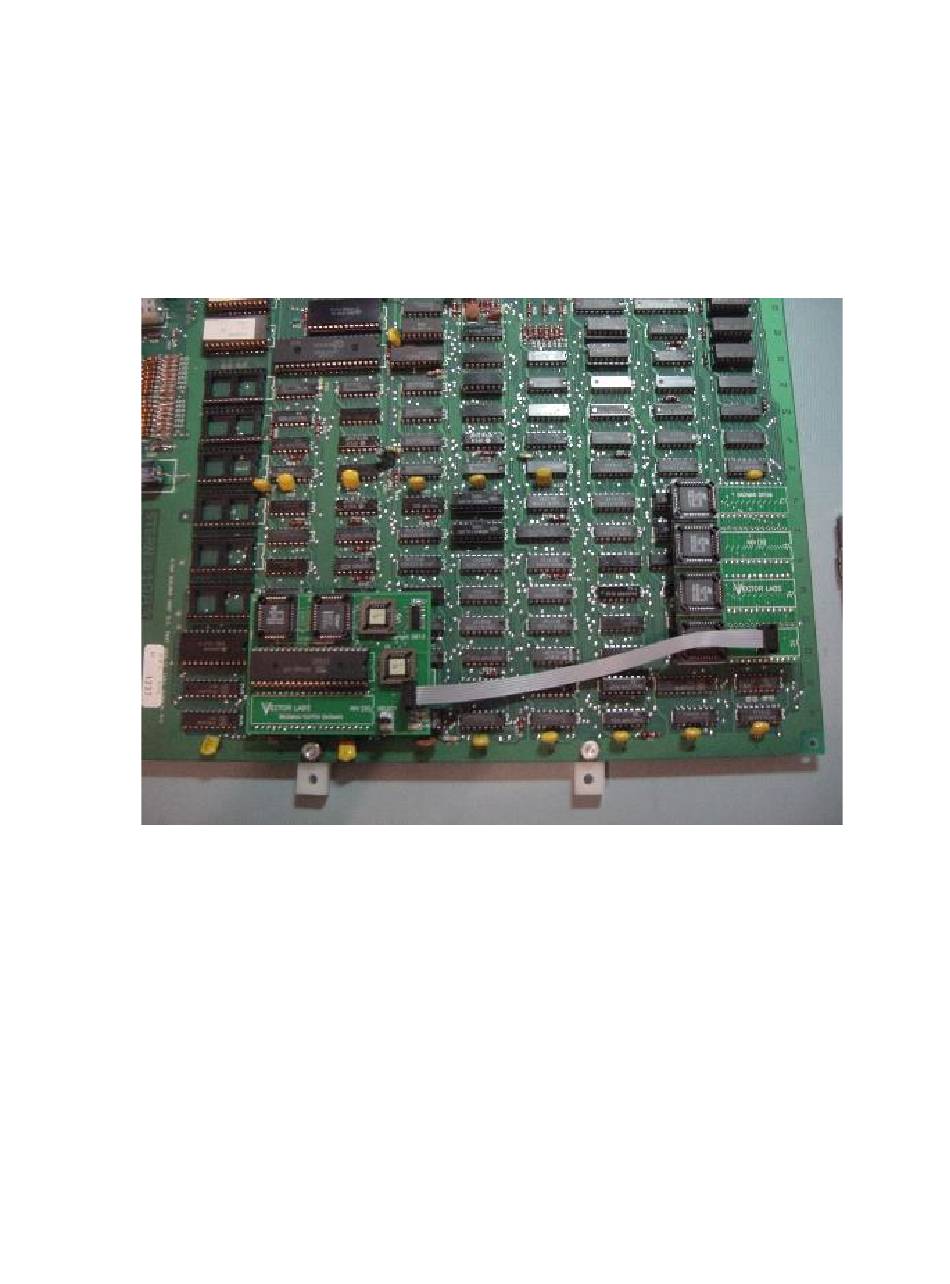

- Page 1 Bagman / Super Bagman Kit INSTALL GUIDE The Bagman / Super Bagman 2 in1 kit installed in the picture above. There are 2 PWB’s that come with the kit as pictured from left to right 1. PROCESSOR PWB 2. ROM PWB...
- Page 2 Some of the tools that may be needed for the install are pictured below. IMPORTANT INFORMATION PLEASE READ AND UNDERSTAND FULLY The Bagman / Super Bagman kit allows current users of a Bagman stand up arcade game to play Bagman & Super Bagman games on your original game PWB.
- Page 3 REMOVE THE Z80A CPU AS SHOWN ABOVE AND SET ASIDE. PLUG THE PROCESSOR PWB INTO THE Z80A SOCKET AS SHOWN ABOVE.
- Page 4 PLUG THE Z80A PROCESSOR BACK INTO THE PROCESSOR PWB AS SHOWN ABOVE, BEING CAREFUL NOT TO PARTIALLY UNPLUG THE PROCESSOR PWB WHEN PRESSING THE CHIP INTO THE SOCKET. REMOVE THE 6 EPROMS [9E, 9F, 9H, 9J, 9K & 9M] AND KEEP IN A SAFE PLACE SO IN CASE YOU EVER DECIDE TO UN-INSTALL THE KIT.
- Page 5 REMOVE THE 4 EPROMS [1C, 1E, 1F & 1J] AND KEEP IN A SAFE PLACE SO IN CASE YOU EVER DECIDE TO UN-INSTALL THE KIT. PLUG IN THE KIT ROM PWB AS SHOWN ABOVE, BE VERY CAREFUL TO ALIGN THE PINS BEFORE PRESSING INTO PLACE, A SINGLE BROKEN PIN CAN CAUSE THE KIT TO DISPLAY GARBLED GRAPHICS.
- Page 6 INSERT 6 PIN RIBBON CABLE AS SHOWN ABOVE INTO THE ROM PWB. INSERT OTHER END OF THE CABLE INTO THE PROCESSOR PWB.
- Page 7 THE BOARD INSTALL IS NOW COMPLETE!!! TAKE NOTE OF THE SELECT CONNECTOR AS THE BOARD IS SHIPPED WITH A SHORTING JUMPER, THIS CAN BE REMOVED TO INSTALL THE OPTIONAL SELECTOR SWITCH AS DESCRIBED AT THE START OF THE INSTALL GUIDE.
- Page 8 IF YOU HAVE AND PROBLEMS OR SUGGESTIONS ON HOW TO IMPROVE THIS INSTALL GUIDE PLEASE CONTACT VECTOR-LABS@TX.RR.COM THANK YOU FOR YOUR PURCHASE...
