ModemSupply MS51p1 User Manual

Single-port adsl2+ modem router w/broadcom 6332 chipset
Hide thumbs

Advertisement

Quick Links

Download this manual

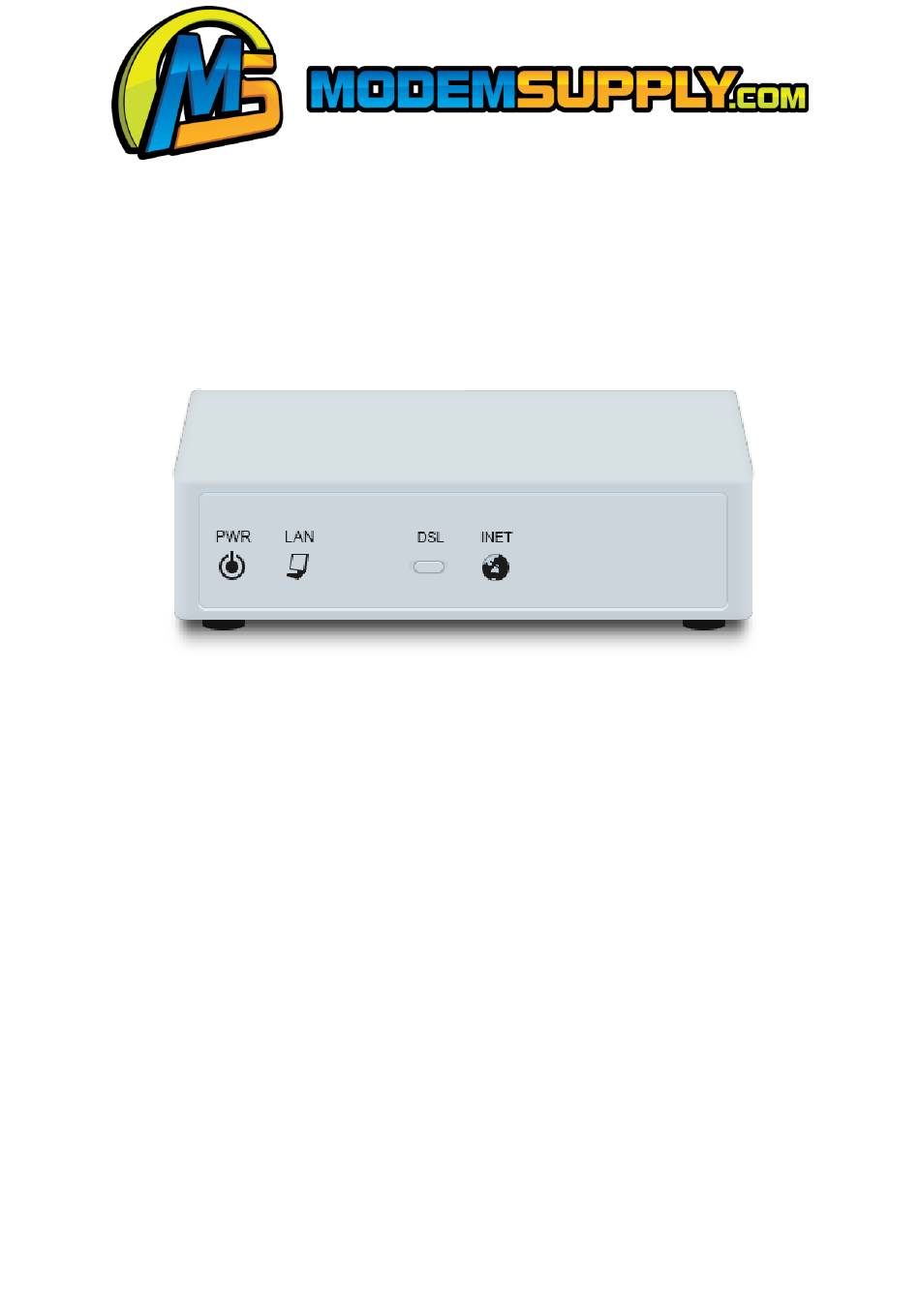

MS51p1 ADSL Router
User Manual
SINGLE-PORT ADSL2+ MODEM ROUTER w/Broadcom 6332 chipset
NOTICE
This document contains proprietary information protected by copyright. This manual and all
the accompanying hardware, software and documentation are copyrighted. All rights are
reserved.
Global411 Ventures LLC does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either expressed
or implied, with respect to the quality, performance, merchantability, or fitness for a particular
purpose of the software or documentation. Global411 Ventures LLC reserves the right to
make changes to the hardware, software and documentation without notification of any
individual or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
Global411 Ventures LLC
All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS51p1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ModemSupply MS51p1

  • Page 1 MS51p1 ADSL Router User Manual SINGLE-PORT ADSL2+ MODEM ROUTER w/Broadcom 6332 chipset NOTICE This document contains proprietary information protected by copyright. This manual and all the accompanying hardware, software and documentation are copyrighted. All rights are reserved. Global411 Ventures LLC does not warrant that the hardware will work properly in all...

  • Page 2: Packing List

    Introduction The MS51P1 is a single port ADSL2+ access device that supports multiple line modes. The device provides high-speed ADSL2+ broadband connection to the Internet or Intranet for high-end users. downlink up to 24 Mbps and uplink up to 1 Mbps.
  • Page 3 Features Broadcom 6332 The device supports the following features:  ANSI T1.413 issue 2  VLAN tagging  Downstream: Up to 24Mbps  Max upstream speed: 1Mbps.  1483Briged/1483Routed/MER/IPoA access  Multiple PVCs (up to eight) and these PVCs can be isolated from each other ...

  • Page 4: Hardware Installation

    Hardware Installation Front Panel Step 1 Connect the DSL interface of the device and the Modem interface of the splitter through a telephone cable. Connect the phone to the Phone interface of the splitter through a cable. Connect the incoming line to the Line interface of the splitter Color Function...
  • Page 5 Step 2 Connect the LAN interface of the device to the network card of the PC through an Ethernet cable (MDI/MDIX). Note: Use twisted-pair cables to connect with the hub or switch. Step 3 Plug one end of the power adapter to the wall outlet and connect the other end to the Power interface of the device. Installing a telephone directly before the splitter may lead to failure of connection between the device and the central office, or failure of Internet access, or slow connection speed.
  • Page 6 Note: Without the splitter, transient noise from the telephone can interfere with the operation of the ADSL router. As a result, the ADSL router may introduce noise to the telephone line. To prevent this from happening, a small external splitter must be connected to each telephone.

  • Page 7: Quick Setup

    Quick Setup If there are no pre-configured PVCs in the router, you can find the Quick Setup option on the left of router configuration page. The user can also delete the PVCs pre-configured to find the option. 1. From home page, choose Quick Setup. 2.
  • Page 8 PPP over Ethernet (PPPoE) Select PPP over Ethernet (PPPoE) as connection type, and select LLC/SNAP-BRIDGING as encapsulation mode.
  • Page 9 3. Input the PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password. Just remember to enable NAT and Firewall as shown below.
  • Page 10 connected to the remote, since the DHCP server within the ADSL gateway only has a single IP address to assign to a LAN device.  NAPT and firewall are disabled when this option is selected.  The gateway becomes the default gateway and DNS server to the computer through DHCP using the LAN interface IP address.
  • Page 11 Item Description This is the IP address that other devices on your local network will use IP address to connect to the modem. Subnet mask This defines the size of your network. The default is 255.255.255.0. The DHCP server assigns an IP addresses from a pre-set pool of addresses upon request from DHCP client (e.g.
  • Page 12 6. Click on the Save/Reboot button to save your configurations. PPP over ATM (PPPoA) Select PPP over ATM (PPPoA) as connection type, and select VC/MUX as encapsulation mode. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password.
  • Page 13 The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes. The PPP IP Extension is a special feature deployed by some service providers.
  • Page 14 Item Description This is the IP address that other devices on your local network will use IP address to connect to the modem. Subnet mask This defines the size of your network. The default is 255.255.255.0. The DHCP server assigns an IP addresses from a pre-set pool of Disable / Enable addresses upon request from DHCP client (e.g.
  • Page 15 5. Make sure that the settings below match the settings provided by your ISP. 6. Click on the Save/Reboot button to save your configurations. Bridging (RFC 2684) Select the bridge operation mode at the suggestion of your ADSL service provider. To configure the bridging option, instructions are as follows: Select Bridging (RFC 2684) as the connection type.
  • Page 16 The summary page presents the entire configuration summary. Click Save if the settings are correct or Back to change any of the settings. Note: If you would like to cancel all modification that you make on the router, please select “ManagementSettingRestore Default Settings” to restore the router to its factory default settings.
