Summary of Contents for Leica Geosystems MC 200 Depthmaster

Page 1 MC 200 Depthmaster User Manual Version 1.1 English...
Page 2 The type and the serial number of your product are indicated on the type plate. identification Enter the model and serial number in your manual and always refer to this informa- tion when you need to contact your agency or Leica Geosystems authorized service workshop. Type: _______________ Serial No.:...
Page 3 Symbols The symbols used in this manual have the following meanings: Type Description Danger Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Warning Indicates a potentially hazardous situation or an unintended use which, if not avoided, could result in death or serious injury.
Page 4 Table of Contents MC200 Table of Contents In this manual Chapter Page Description of the System Buttons Operation Care and Transport Safety Directions Technical Data...
Page 5 1 Description of the System Warning This product may be installed on building machinery only by an appropriately trained and qualified specialist. Warning Unauthorized modification of machines by mounting the product may alter the func- tion and safety of the machine. Precautions: Follow the instructions of the machine manufacturer.

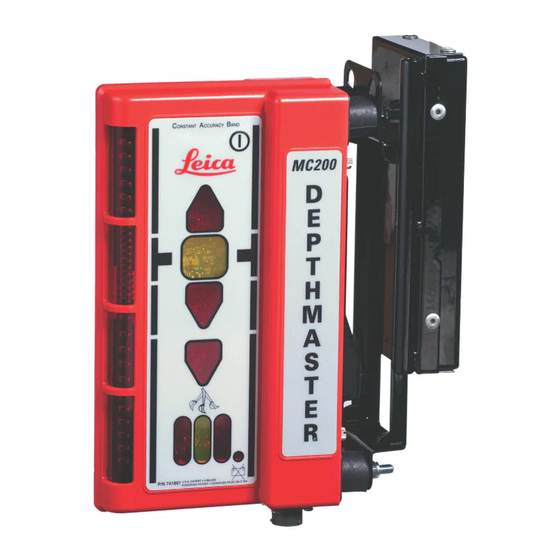

Page 6 Description of the System MC200 Features and main components 200° * Reception Area (Top View) a) Power Button Press the button on the side you will be viewing to activate the indicators for that side, or press both at start-up to activate both sides. The Power Button only func- tion when the battery pack powers the laser sensor.
Page 7 b) Hidden Switch See "3.4 Optional Functions" on page 3-8. c) Grade Position Indicators Blink rapidly to indicate the position of the machine’s cutting edge relative to grade (See below.) d) Plumb Indicators Blink rapidly to show the vertical position of the machine’s arm. (See below.) e) Low Battery Indicators Become lit when the battery pack has less than 6 hours of operating charge.
Page 8 Description of the System MC200 g) Mounting Clamps Allow you to easily attach the laser sensor to square and round mounting poles without having to lift the laser sensor over the top of the pole. The laser sensor includes shock isolators to absorb and dampen vibrations from the machine. Magnetic Mount: Allows the sensor to be attached to the arm of the machine.
Page 9 h) Battery Pack The rechargeable batteries provide power to the laser sensor for over 48 hours on a single charge. Recharge the battery pack by connecting a 778855 Charger, 100-240 VAC to the charger connector. Plug the DC power cable into the battery pack before plugging it into the mains socket.
Page 10 Buttons MC200 2 Buttons Button Machine Control Operation Off-Grade, Low* -0.5 to -3.0 in. (-12 to -75 mm) Near On-Grade, Low -0.16 to -0.5 in. (-4 to -12 mm) On-Grade ±0.16 in. (±4 mm) Near On-Grade, High +0.16 to +0.5 in. (+4 to +12 mm) Off-Grade, High +0.5 to +5.3 in.
Page 11 Button Excavator/Backhoe Operation Below Grade* -0.5 to -3.0 in. (-12 to -75 mm) Below Grade (Narrow only) -0.16 to -0.5 in. (-4 to -12 mm) On-Grade Wide: ±0.5 in. (±12 mm) Nar: ±0.16 in. (±4 mm) Above Grade (Narrow only) +0.16 to +0.5 in.
Page 12 Operation MC200 3 Operation In this chapter Topic Page Battery Excavator/Backhoe Operation Machine Control Operation Optional Functions...
Page 13 +10°C to +20°C/+50°F to +68°F if possible. • It is normal for the battery to become warm during charging. Using the chargers recommended by Leica Geosystems, it is not possible to charge the battery if the temperature is too high. Operation/Discharging •...
Page 14 Operation MC200 Excavator/Backhoe Operation a) Rotating Laser b) Arm c) Laser Sensor d) Plane of Laser Light...
Page 15 Procedure 1. Set up and level the Rotating Laser in a convenient location. Make sure there will be a clear path between the rotating laser and laser sensor at all times and that the laser signal will be within the 200° range of the laser sensor.
Page 16 Operation MC200 attaching it. When using mounting clamps, tighten the laser sensor at the correct height. 6. Continue digging until a grade check is normally required and take a grade check. • Move the bucket to the same position as it was in Step 3 and lower it almost to the cut.
Page 17 Machine Control Operation a) Rotating Laser b) Hub Stake c) Blue Top d) Laser Sensor e) Plane of Laser Light Operation MC200...
Page 18 Operation MC200 Procedure 1. Set up and level the Rotating Laser in a convenient location. Make sure there is a clear path between the Rotating Laser and the MC 200 Depthmaster laser sensor. 2. Move the machine to the area to be graded and set the blade to a position that is at finished grade, such as a Hub Stake or a “Blue Top.”...
Page 19 In machine control mode, only the top three lights will function and the sensor will be in narrow band. Disabling Sleep The MC 200 Depthmaster will go into a “sleep mode” if no movement is seen in the Mode plumb indicator lights after five minutes. In certain applications (ie: dozers, trenchers) it is desirable to disable this function.
Page 20 Operation MC200 To disable the Press and hold the marked switch left of the Leica Logo, then turn on the sensor. sleep mode - Turn The sensor will go through it’s normal power-up sequence, then the two outer plumb off the sensor. lights will flash to indicate the sleep mode has been disabled.
Page 21 4 Care and Transport In this chapter Topic Page Transport Storage Cleaning and Drying Care and Transport MC200...
Page 22 Always carry the product in its transport container and secure it. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, transport container and cardboard box, or its equiva- lent, to protect against shock and vibration. Shipping, transport...
Page 23 Storage Product Respect the temperature limits when storing the equipment, particularly in summer if the equipment is inside a vehicle. Refer to "6 Technical Data" for information about temperature limits. Field adjustment After long periods of storage inspect the field adjustment parameters given in this user manual before using the product.
Page 24 Care and Transport MC200 Cleaning and Drying Product Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these liquids may attack the polymer components. Damp products Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C / 108°F and clean them.
Page 25 5 Safety Directions In this chapter Topic Page General Intended Use Limits of Use Responsibilities International Warranty Hazards of Use Electromagnetic Compatibility EMC 5-13 FCC Statement, Applicable in U.S. 5-15 Safety Directions MC200...
Page 26 Safety Directions MC200 General Description The following directions should enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid operational hazards. The person responsible for the product must ensure that all users understand these directions and adhere to them.
Page 27 • Use of products with obviously recognizable damages or defects. • Use with accessories from other manufacturers without the prior express approval of Leica Geosystems. • Inadequate safeguards at the surveying site, for example when measuring on roads. • Controlling of machines, moving objects or similar monitoring application without additional control- and safety installations.
Page 28 Safety Directions MC200 Warning Adverse use can lead to injury, malfunction and damage. It is the task of the person responsible for the equipment to inform the user about hazards and how to counteract them. The product is not to be operated until the user has been instructed on how to work with it.
Page 29 Limits of Use Environment Suitable for use in an atmosphere appropriate for permanent human habitation: not suitable for use in aggressive or explosive environments. Danger Local safety authorities and safety experts must be contacted before working in hazardous areas, or in close proximity to electrical installations or similar situations by the person in charge of the product.
Page 30 Geosystems, is responsible for supplying the product, including the user manual and original accessories, in a completely safe condition. Manufacturers of The manufacturers of non Leica Geosystems accessories for the product are responsible for developing, implementing and communicating safety concepts for Leica Geosystems...
Page 31 International Warranty The International Warranty can be downloaded from the Leica Geosystems home page at http://www.leica-geosystems.com/internationalwarranty or received from your Leica Geosystems dealer. Safety Directions MC200...
Page 32 Safety Directions MC200 Hazards of Use Warning The absence of instruction, or the inadequate imparting of instruction, can lead to incorrect or adverse use, and can give rise to accidents with far-reaching human, material, financial and environmental consequences. Precautions: All users must follow the safety directions given by the manufacturer and the direc- tions of the person responsible for the product.
Page 33 Caution If the accessories used with the product are not properly secured and the product is subjected to mechanical shock, for example blows or falling, the product may be damaged or people may sustain injury. Precautions: When setting-up the product, make sure that the accessories, for example tripod, tribrach, connecting cables, are correctly adapted, fitted, secured, and locked in position.
Page 34 Always ensure that the survey site is adequately secured. Adhere to the regulations governing safety and accident prevention and road traffic. Warning Only Leica Geosystems authorized service workshops are entitled to repair these products. Caution During the transport, shipping or disposal of batteries it is possible for inappropriate mechanical influences to constitute a fire hazard.
Page 35 Warning Using a battery charger not recommended by Leica Geosystems can destroy the batteries. This can cause fire or explosions. Precautions: Only use chargers recommended by Leica Geosystems to charge the batteries. Warning High mechanical stress, high ambient temperatures or immersion into fluids can cause leackage, fire or explosions of the batteries.
Page 36 Safety Directions MC200 5-12 • By disposing of the product irresponsibly you may enable unauthorized persons to use it in contravention of the regulations, exposing themselves and third parties to the risk of severe injury and rendering the environment liable to contamination.
Page 37 Warning Electromagnetic radiation can cause disturbances in other equipment. Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. Caution There is a risk that disturbances may be caused in other equipment if the product is...
Page 38 Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that the product may be disturbed by very intense electromagnetic radiation, for example, near radio transmitters, two-way radios or diesel generators.
Page 39 • Consult the dealer or an experienced radio/TV technician for help. Warning Changes or modifications not expressly approved by Leica Geosystems for compli- ance could void the user's authority to operate the equipment. Safety Directions MC200 5-15...
Page 40 Safety Directions MC200 5-16 Labelling MC200 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 41 6 Technical Data Accuracy for Excavator/Backhoe ±1/2 in. (±12 mm) “On-Grade” Operation - using Wide Band Accuracy for Excavator/Backhoe ±1/6 in. (±4 mm) “On-Grade” Operation - using Narrow Band Accuracy for Machine Control Operation ±1/6 in. (±4 mm) “On-Grade” - using Narrow or Wide Band ±1/2 in.
Page 42 Technical Data MC200 Battery Features “Shake-to-Wake” Stand-By - 5 Minutes of No Movement Auto Shut-Off - 90 Minutes of No Movement Laser Requirement All Rotating Lasers (HeNe or Diode) in wavelength range of 635 nm - 785 Verticality Sensing (Factory Setting) ±...
Page 43 Traction Force 450 lbs. (220 kg) Technical Data MC200...
Page 45 Environmental Management Systems (ISO standard 14001). Leica Geosystems AG 742679-1.1.0en CH-9435 Heerbrugg (Switzerland) Phone +41 71 727 31 31 Printed in Switzerland - Copyright Leica Geosystems AG, Heerbrugg, Fax +41 71 727 46 73 Switzerland 2005 Original text www.leica-geosystems.com...
