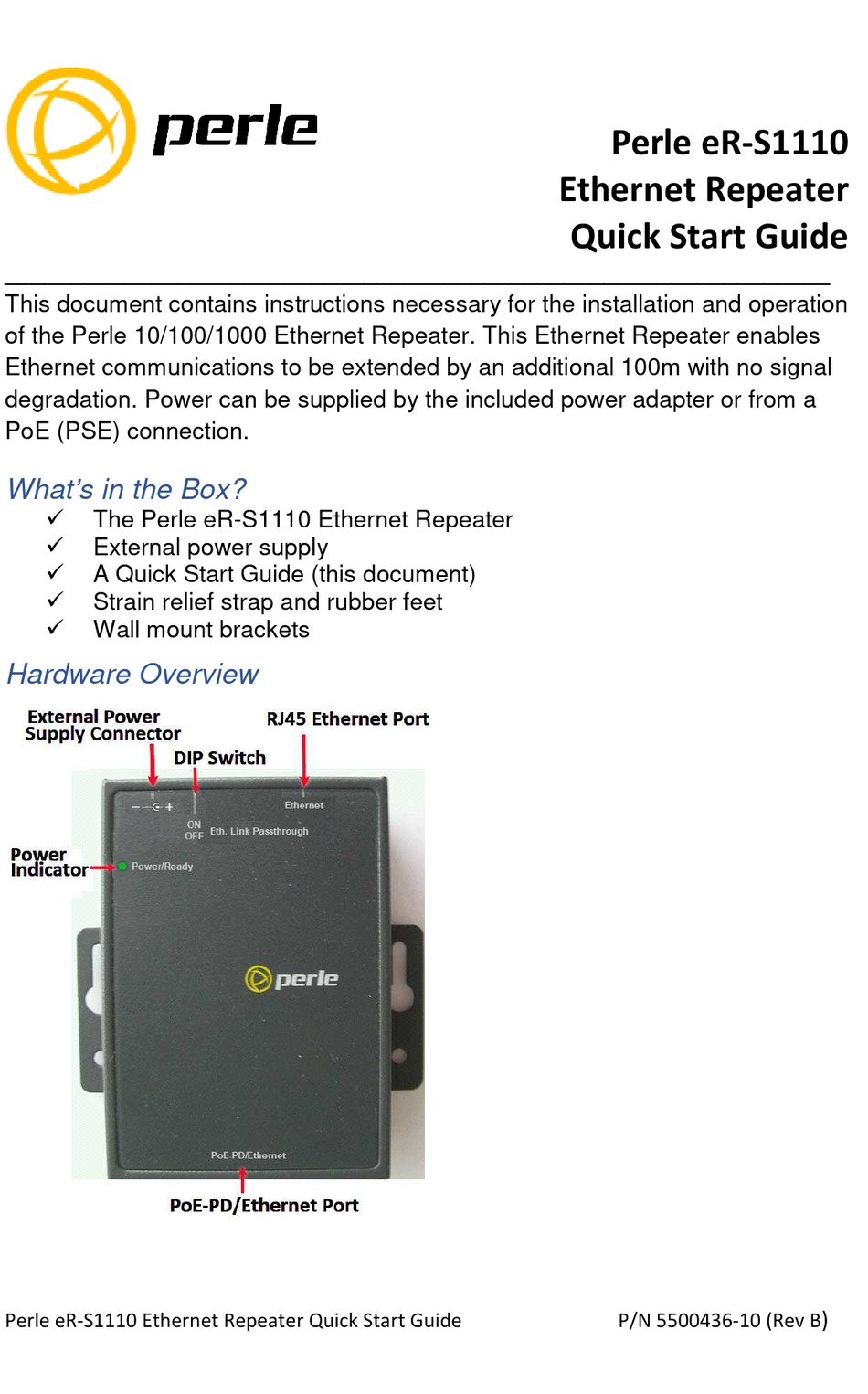

This document contains instructions necessary for the installation and operation
of the Perle 10/100/1000 Ethernet Repeater. This Ethernet Repeater enables
Ethernet communications to be extended by an additional 100m with no signal
degradation. Power can be supplied by the included power adapter or from a
PoE (PSE) connection.
What's in the Box?
The Perle eR-S1110 Ethernet Repeater
External power supply
A Quick Start Guide (this document)
Strain relief strap and rubber feet
Wall mount brackets

Hardware Overview

Perle eR-S1110 Ethernet Repeater Quick Start Guide
Perle eR-S1110
Ethernet Repeater
Quick Start Guide
P/N 5500436-10 (Rev B
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eR-S1110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Perle eR-S1110

  • Page 1 ______________________________________________________________ This document contains instructions necessary for the installation and operation of the Perle 10/100/1000 Ethernet Repeater. This Ethernet Repeater enables Ethernet communications to be extended by an additional 100m with no signal degradation. Power can be supplied by the included power adapter or from a PoE (PSE) connection.
  • Page 2 Amber—10 Mbps (flashes with activity) Link 10/100/1000 • Amber/Green—both LEDS slow blinking on the port means that Ethernet Link Passthrough is enabled and this port’s Ethernet is detected, but the peer port’s Ethernet is down. Perle eR-S1110 Ethernet Repeater Quick Start Guide...
  • Page 3 Category 5e UTP or STP • Straight through or Ethernet crossover RJ-45 Connector Warranty / Registration Details can be found at: www.perle.com/support_services/warranty_reg.asp Registering the Ethernet Repeater You should register your Ethernet Repeater online at: www.perle.com/support_services/warranty_reg.asp Perle eR-S1110 Ethernet Repeater Quick Start Guide...
  • Page 4 Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. www.perle.com/support_services/support_request.shtm Technical Specifications 9-30 v DC via barrel connector Power Input (5.5m x 9.5mm x 2.1 mm) PoE capable (PD) as per 802.3at PD specifications Operating Temperature -10°C to 50°C (14°F to 122°F)
