CENDVDLFM
Multimedia player with RDS AM/FM Radio
Before attempting to connect or operate this product, please read the
instructions completey.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CENDVDLFM and is the answer not in the manual?

Questions and answers

Related Manuals for Centurion CENDVDLFM

Summary of Contents for Centurion CENDVDLFM

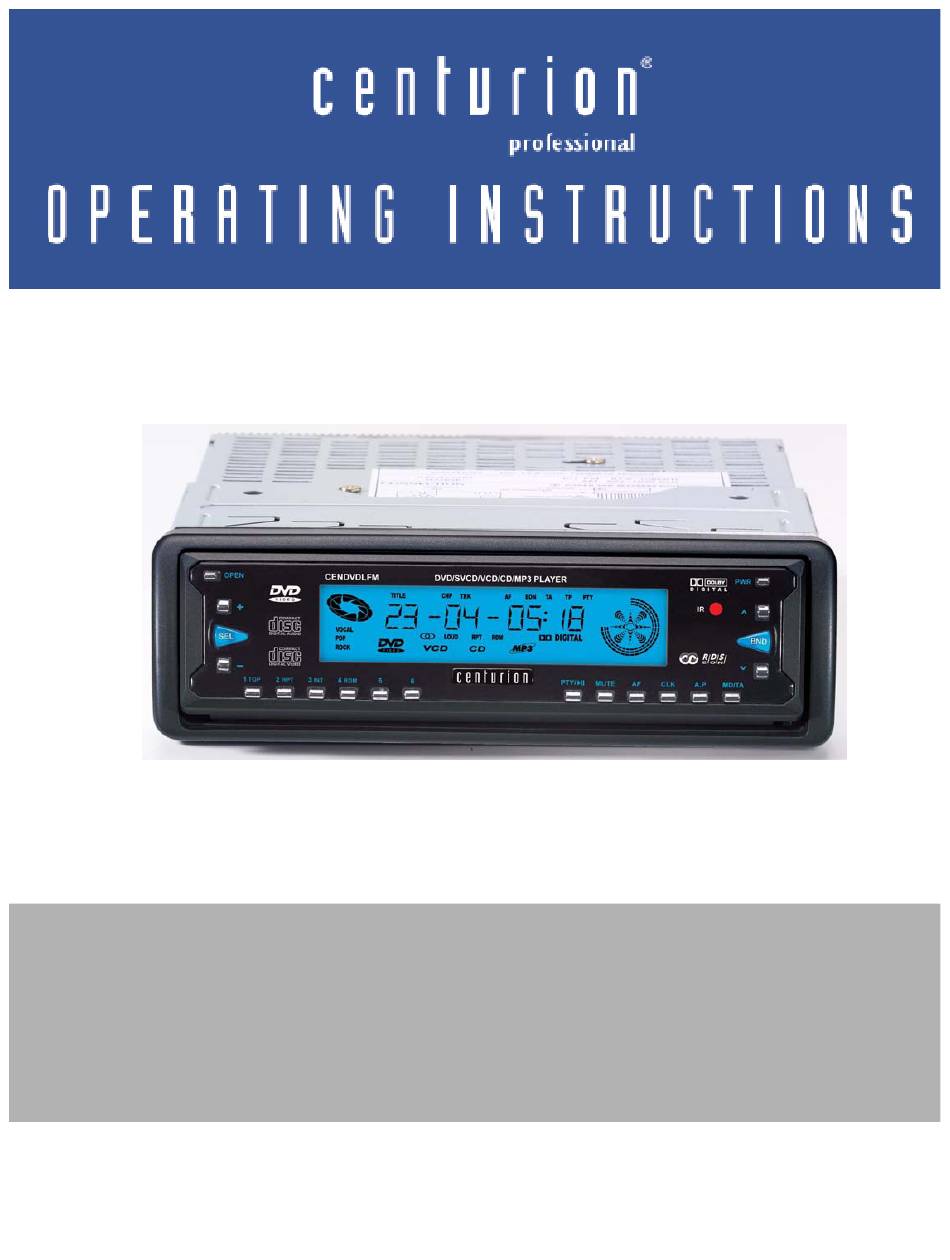

  • Page 1 CENDVDLFM Multimedia player with RDS AM/FM Radio Before attempting to connect or operate this product, please read the instructions completey.

  • Page 2: Table Of Contents

    Radio Operation 9 – 11 Disc Basic Operation 11 – 13 Disc Advanced Operation 14 – 17 Reset System Settings 18 – 21 About the removable front face Troubleshooting Specification General Specification DVD Deck Specification Audio Specification Radio Specification CENDVDLFM...

  • Page 3: Safety Precautions / Operating Precautions

    • Do not turn the product on or off in short intervals. When turning the unit off, wait for at least 10 seconds prior to turning the unit on again. • Do not operate the player with scratched, bent, broken, or irregularly shaped discs. CENDVDLFM Page 1...

  • Page 4: Dvd Care

    (e.g off-road travel, etc.) Do not directly touch the disc surface. Never stick labels on the surface of the disc or mark the surface with a pen. Always place a DVD disc back into its case after use. CENDVDLFM Page 2...

  • Page 5: Front Panel Controls

    /INT/RDM BUTTONS 13. POWER BUTTON 14. SOUND MODE AND LEVEL BUTTONS DESCRIPTION OF THE FRONT FACE AFTER TAKING OUT THE FRONT PANEL 1.LED INDICATOR: Flashing when detachable panel is removed. 2.RESET BUTTON: Press to reset the disc position. CENDVDLFM Page 3...

  • Page 6: Remote Control

    21. STOP BUTTON 12. ANGLE BUTTON 22. VOLUME - BUTTON 13. MUTE/LCD COLOUR BUTTON 23. JOG LEFT BUTTON 14. CLOCK BUTTON 24. VOLUME + BUTTON 15. DSP BUTTON 25. ENTER BUTTON 16. TITLE/PBC AND A/P BUTTON 17. AUDIO BUTTON CENDVDLFM Page 4...

  • Page 7: Front Panel Lcd

    7. Dolby digital indicator 8. RDS indicator such as AF, EON, TA, TP and PTY. 9. Disc rotation indicator 10. RANDOM indicator 11. LOUDNESS indicator 12. SPECTRUM indicator 13. VOCAL, POP and ROCK equalizer curve indicators 14. STEREO indicator CENDVDLFM Page 5...

  • Page 8: Removable Front Panel Rear View

    3.Battery leakage may cause damage to the unit. 4.Do not disassemble or short the batteries. 5.Do not throw the batteries into fire. 6.To avoid the risk of accident, keep the batteries out of the reach of children. CENDVDLFM Page 6...

  • Page 9: Glossary

    Caption: The language displayed at the bottom of the picture, normally the translation or the dialogue, which are also recorded on the disc. Angle: Some DVD discs are recorded from different angles so that users can view the same scene from different angles. CENDVDLFM Page 7...

  • Page 10: Common Function Buttons In Disc Or Radio Mode

    + or - button to adjust MINUTE setting. 6. DSP BUTTON Press the DSP button on the front panel or the remote control to select between the preset music equalizer curves: VOCAL, POP, ROCK and DSP off. The sound effect will be changed. CENDVDLFM Page 8...

  • Page 11: Radio Operation

    Press the TA button on the front panel and hold to turn on TA search mode and flash TP. Press the TA button on remote control to turn on TA search mode and flash TP. When traffic announcement is transmitted: CENDVDLFM Page 9...
  • Page 12 (When AF flashes on the LCD, it will search for RDS stations. If AF and TP flash on the LCD, it will only search for traffic announcement stations) During FM mode, when AF is on, SEEK, SCAN and AUTO-MEMORY function can only receive and save RDS programs. Hold down the AF button to access REGION ON/OFF mode. CENDVDLFM Page 10...

  • Page 13: Disc Basic Operation

    DVD title menu and then press the ENTER button on the IR remote control or PLAY/PAUSE button on the IR remote controller or on the front panel of the DVD player to play the selected track/chapter. CENDVDLFM Page 11...
  • Page 14 2. When in PBC OFF mode, if a disc is played from the beginning it will not display the title menu on even if the disc includes a title menu. During playback, press the STOP button to stop playback and then press the PLAY/PAUSE button to play from the beginning of disc again CENDVDLFM Page 12...
  • Page 15 If the DVD player can not eject the disc from the disc compartment after pressing the EJECT button press the EJECT button and hold for more than 3 seconds to make the DVD player eject out the disc from the disc compartment. CENDVDLFM Page 13...

  • Page 16: Disc Advanced Operation

    1X,2X,3X and 4X normal speed for CD/VCD or at 2X,4X,6X and 8X normal speed for MP3/DVD. * While in rapid preview or rapid review the display status is activated along the top of the screen. CENDVDLFM Page 14...
  • Page 17 2RPT button on the front panel are not available. 2. When in PBC OFF mode during playback, press the REPEAT button on the IR remote control or the 2RPT button on the front panel to select REPEAT ONE or REPEAT OFF. CENDVDLFM Page 15...
  • Page 18 2).When in PBC OFF mode, press the OSD button repeatedly to display the time related information about the currently playing disc, such as SINGLE ELAPSED time, SINGLE REMAIN time, TOTAL ELAPSED time, TOTAL REMAIN time, time OFF. CENDVDLFM Page 15...
  • Page 19 21th-29th tracks. Press one of 1-9 NUMBER button and then press the +10 button to display 1- again (depending on the disc used). * During MP3 playback, press the 0 button on the remote control to enter back into ROOT TITLE and then you can select other sub-titles and tracks to play. CENDVDLFM Page 16...
  • Page 20 3. During VCD playback, press the AUDIO button repeatedly to select LEFT VOCAL, RIGHT VOCAL, MONO LEFT and MONO RIGHT sound modes, no language function is available. 4. During CD playback, press the AUDIO button repeatedly to select MONO LEFT, MONO RIGHT and STEREO modes. CENDVDLFM Page 17...

  • Page 21: Reset

    TV screen (select EXIT SETUP item and then press ENTER button to exit setting menu to resume normal playback) GENERAL PAGE TV DISPLAY NORMAL/PS PIC MODE NORMAL/LB ANGLE MARK WIDE OSD LANG CAPTIONS SCR SAVER MAIN PAGE ??????(display the selected item) CENDVDLFM Page 18...
  • Page 22 (select MAIN PAGE item and then press the ENTER button to return back to the SETUP MENU). The changeable items of the GENERAL, AUDIO and PREFERENCES menus are displayed as followings: 1). GENERAL setup menu: NORMAL/PS TV DISPLAY NORMAL/LB WIDE CENDVDLFM Page 19...
  • Page 23 PIC MODE N-FLICKER ANGLE MARK ENGLISH OSD LANG CHINESE CAPTIONS SCR SAVER 2). The AUDIO setup menu is displayed like the following: STEREO L-MONO DUAL MONO R-MONO MIX-MONO FULL DYNAMIC PRO LOGIC AUTO LPCM 48K LPCM LPCM OUTPUT CENDVDLFM Page 20...
  • Page 24 6PG-R 7NC-17 8ADULT NO-PARENTAL PASSWORD CHANGE OLD PASSWORD NEW PASSWORD DEFAULTS RESET CONFIRM PASSWORD SMART NAV WITH MENU 4. Press the JOG button to select the setup item and then press the ENTER button to confirm selection. CENDVDLFM Page 21...

  • Page 25: About The Removable Front Face

    (see fig.3) for safe keeping. 4. Install the front panel back into its bracket and then push it back into the playing position (see fig.4) FRONT PANEL FRONT PANEL (FIG.1) (FIG.2) OPEN BUTTON PROTECTIVE CASE (FIG.3) (FIG.4) FRONT PANEL FRONT PANEL CENDVDLFM Page 22...

  • Page 26: Troubleshooting

    Eject. Error3 A DVD/CD can not Replace with a be played due to non-scratched, scratches, etc. non-warped disc. Error6 A DVD/CD is Eject the disc and loaded upside- reload it properly. Down. CENDVDLFM Page 23...

  • Page 27: Specification

    AUDIO SPECIFICATIONS line Output. > 1 V Frequency Response 20 to 20KHz S/N Ratio(A-vtd) 65dB Separation 55dB RADIO SPECIFICATIONS FM SECTION Frequency range 87.5MHz - 108.0MHz(EUROPE) Usable sensitivity I.F Frequency 10.7MHz AM SECTION Frequency range. 522KHz -1620KHz(EUROPE) CENDVDLFM Page 24...
  • Page 28 • Please keep original cash register receipt (for proof and date of purchase) • For Warranty/Product repairs please return to original point of purchase Head Office: Centurion Electronics plc, Satellite House, City Park, Swiftfields, Welwyn Garden City, Hertfordshire AL7 1LY...
