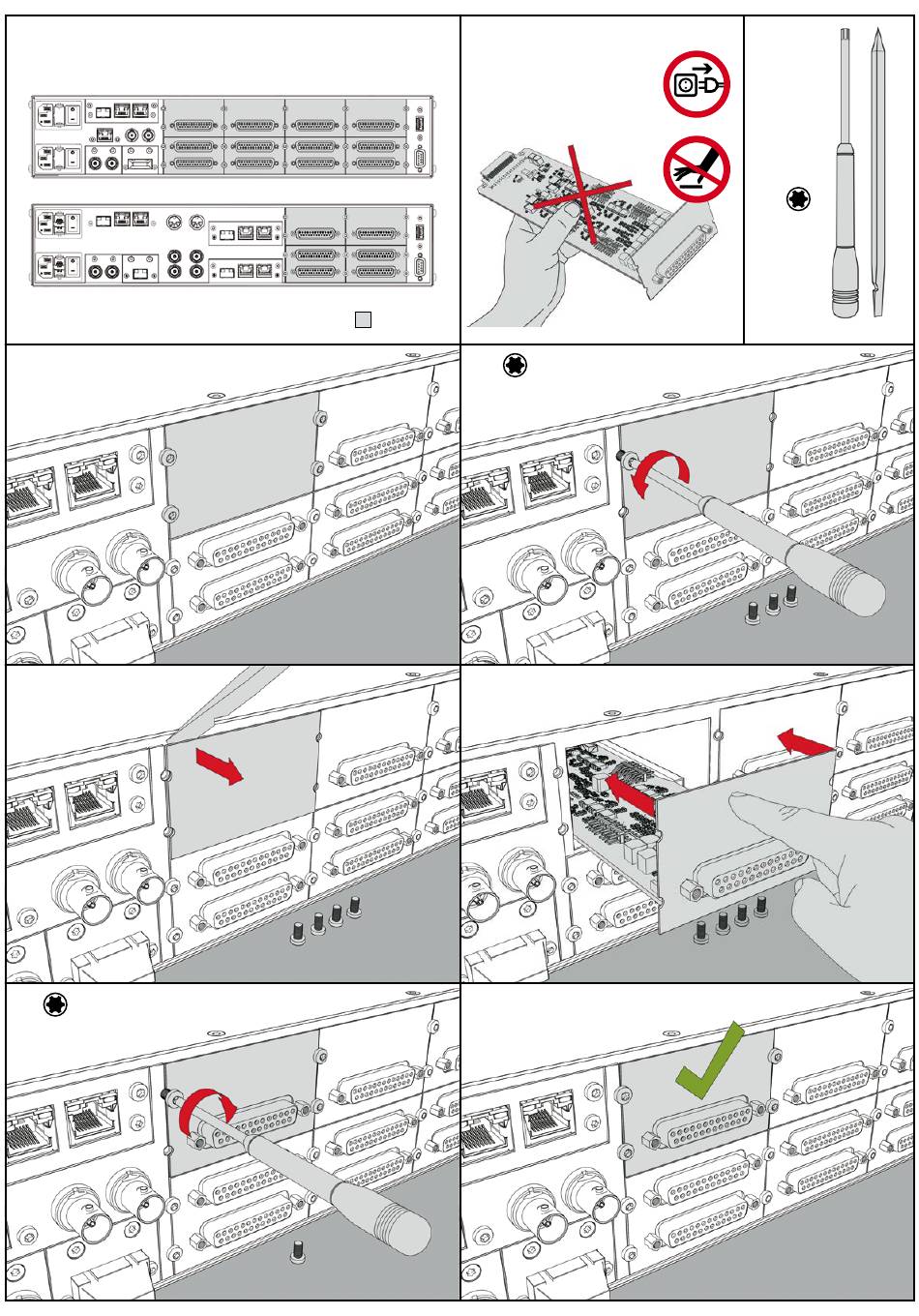

AssEmBling ConvErtEr-moDulE
ProDigY.mC (rear side)
ProDigY.mP (rear side)
The illustrations are exemplary and may differ
from the existing hardware.
A
Device (rear side)
C
Remove Cover Plate
E
Fix Screws 4x
WArning:
The device must be disconnected
from the power supply before
opening the housing. The modules
may be changed only when the
is fully isolated.
device
possible slots
B
Remove Screws 4x
D
Insert Converter-Module
F
Ready!
Don't
touCh surFACE!
You need
torx
T10
