Note: Tools required for assembly: Suitable spanners.
11
4
14
1

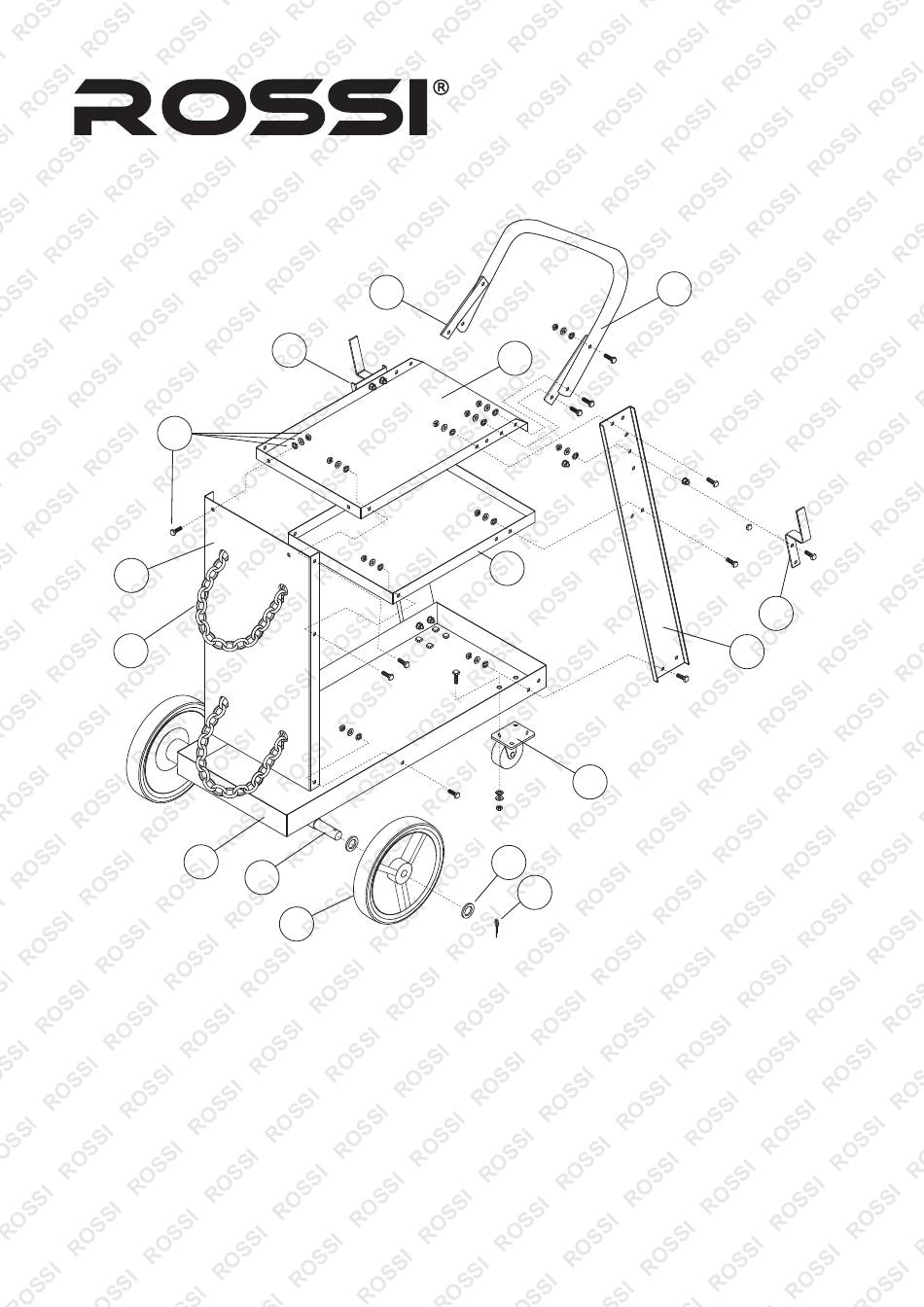

Parts List
1. Base (1)
2. Wheel (2)
3. Caster (2)
4. Rear Panel (1)
5. Shelf (1)
6. Welder Tray (1)
7. Left-Side Support Leg (1)
8. Right-Side Support Leg (1)
SKU WLDCRTROSAN53 Revision 2.0 October 2016
16
8
10
2
Welding Cart with Drawers
Assembly Guide
6
5
3
12
13
9. Hook (2)
10. Axle (1)
11. M6x12 Bolt/Flat Washer/Lock Washer/Nut (35)
12. M12 Flat Washer (4)
13. Split Pin (2)
14. Bottle Chain (1)
15. Handle (1)
16. Handle Brace (2)
15
9
7
Advertisement
Summary of Contents for Rossi 255318
- Page 1 Welding Cart with Drawers Assembly Guide Note: Tools required for assembly: Suitable spanners. Parts List 9. Hook (2) 1. Base (1) 10. Axle (1) 2. Wheel (2) 11. M6x12 Bolt/Flat Washer/Lock Washer/Nut (35) 3. Caster (2) 12. M12 Flat Washer (4) 4.
- Page 2 Welding Cart with Drawers Assembly Guide Install axle (10) to base (1), then on each side place a washer (12) then wheel (2) (wheel “spokes” facing out). Place another washer (12) on outside of wheel, then secure with split pin (13). Bend legs of split pins to prevent them falling out.
- Page 3 ©2018 Rossi. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
