ONV -IoT9000 Product Manual

Iot intelligent box
Hide thumbs

Advertisement

Quick Links

Download this manual

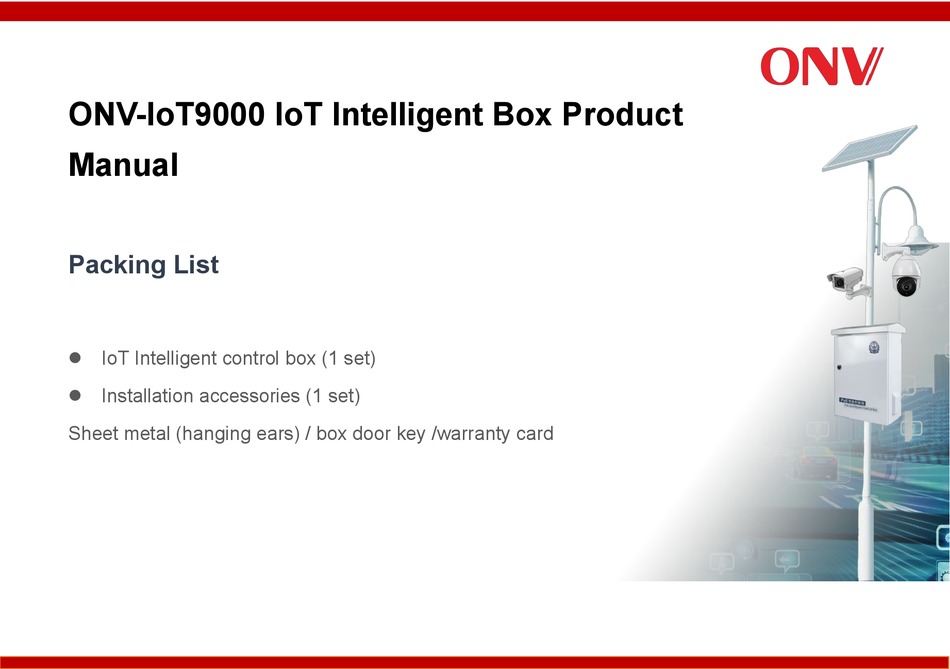

ONV-IoT9000 IoT Intelligent Box Product
Manual
Packing List
 IoT Intelligent control box (1 set)
 Installation accessories (1 set)
Sheet metal (hanging ears) / box door key /warranty card

Advertisement

loading
Need help?

Need help?

Do you have a question about the ONV-IoT9000 and is the answer not in the manual?

Questions and answers

Summary of Contents for ONV ONV-IoT9000

  • Page 1 ONV-IoT9000 IoT Intelligent Box Product Manual Packing List  IoT Intelligent control box (1 set)  Installation accessories (1 set) Sheet metal (hanging ears) / box door key /warranty card...
  • Page 2 ONV company. The safety requirements have not been reflected, and ONV company will not bear any responsibility for the loss caused by the violation of the general safety operation requirements or the violation of the design production and use equipment safety...
  • Page 3 Note This intelligent box is a Class A product. In the living environment, this product may cause radio interference. In this case, users need to take practical measures for their interference. Class A products are EMC class A certified products. During transportation, handling, and installation, avoid collisions between the device and objects such as doors, walls, and shelves.
  • Page 4 The temperature and humidity of the installation site must be kept within the temperature and humidity  range in which the smart box can work normally. For the normal temperature range and relative humidity range of the smart box, refer to the intelligent box product datasheet. The grounding cable of the intelligent box is an important step in the installation process.
  • Page 5 Fourth, pre-commissioning The ONV IoT intelligent box is modular in design, which can be flexibly configured according to the actual  needs of the project, and the optimal matching function module is selected by adding/reducing. If the intelligent box needs to be commissioned, it is recommended to complete it before the smart box is installed on the pole.
  • Page 7 ONV IoT intelligent box equipment support managed PoE switch module for network transmission. You  can pre-configure the PoE switch network management function according to the following operations. (This item is ignored for intelligent boxes without PoE switch) 4.1 Log in to the device for the first time through the web system Know before you log in If the web page is displayed abnormally, the browser version may be too low.
  • Page 8 Use a network cable to connect the computer to any Ethernet port on the Ethernet switch. Configure the computer's IP address to be on the same network segment as the default IP address of the Ethernet switch. Open a browser on your computer, enter 192.168.2.1 in the address bar, and press Enter to display the web network management login interface.
  • Page 9 4.2 Log in to the device for the first time through the console port Know before you log in The console cable is not shipped with the device and must be purchased separately.  Please prepare third-party terminal emulation software (Secure CRT software). For usage, please refer to ...
  • Page 10 Transmission rate: 115200  Data bits: 8  Calibration method: None  Stop bit: 1  Flow control mode: None  Press“Enter”until the following terminal appears on the emulation terminal, prompting the user to enter a username and password. When logging in for the first time, the default user name is“admin”and the password is“system”.

  • Page 11: Notes For Installation

    Fifth, install intelligent box Notes for installation Hold pole installation only supports vertical round pole installation.  When installing the machine, you need to use the matching sheet metal mounting parts and screws.  Wear protective gloves when installing.  It is forbidden to install the intelligent box under power.

  • Page 12: Installation Steps

    Installation preparation tool Labor protection gloves  wrench  Ladder  Installation steps...
  • Page 14 Sixth, connect the intelligent box Description Route the cables connected to the intelligent box through the pole.   The earth wire need to be prepared by the user. It is forbidden to install and remove the intelligent box and power cord with power on to avoid personal ...
  • Page 15 wire of the AC power cord to L and the neutral wire to N. Install the PE wire to the PE ground terminal of the maintenance compartment. All power cables must not have metal parts exposed in the air.  The maximum fiber length supported by the disk box: bare fiber single fiber support a maximum of 20m, ...
  • Page 16 whether the door lock is intact. Power-on check, check whether all the function status of the smart box is normal through the display of the data control unit. Hazardous substances in electronic and electrical products Toxic and harmful substances or elements Name Lead Mercury...
  • Page 17 Plastic and polymer parts ○ ○ ○ ○ ○ ○ Paper accessories ○ ○ ○ ○ ○ ○ This form has been prepared in accordance with SJ / T 11364. ○: indicates that the content of the toxic and harmful substance in all homogeneous materials of the part is below the limit requirement specified in GB / T 26572.
  • Page 18 Optical Network Video Technologies (Shenzhen) Co., Ltd. Tel: 0086-755-33376606 Fax: 0086-755-33376608 Email: onv@onv.com.cn Website: www.onvcom.com Zip: 518000 Headquarter Address: Room 1003, Block D, Terra Building, Futian District, Shenzhen,China Factory Address:The 4-6th Floor, No. 59, Huaning Road, Xinwei Community, Dalang Street, Longhua District,...
