H.264 HDMI Extender over TCP/IP
USER MANUAL

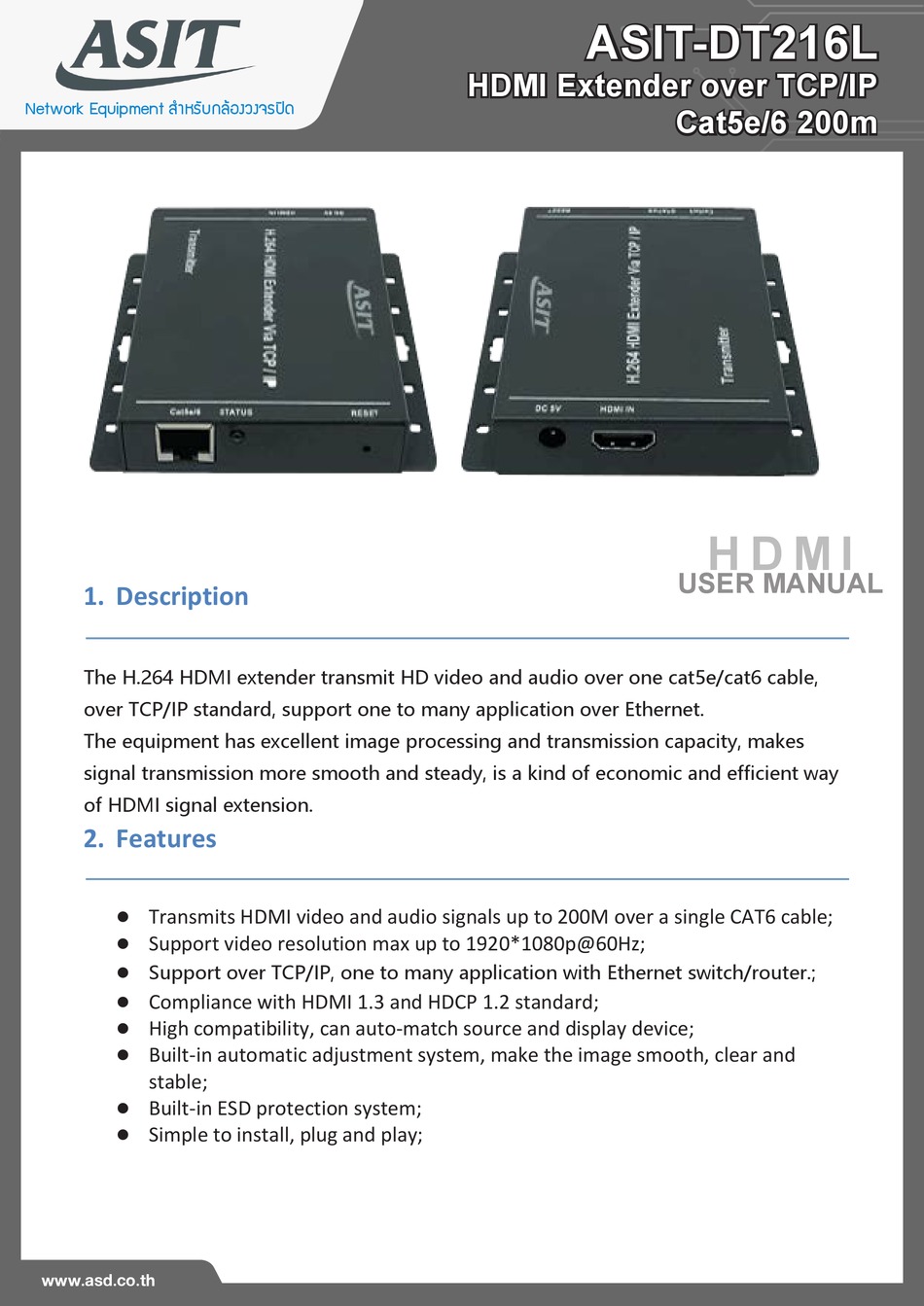

1. Description

The H.264 HDMI extender transmit HD video and audio over one cat5e/cat6 cable,
over TCP/IP standard, support one to many application over Ethernet.
The equipment has excellent image processing and transmission capacity, makes
signal transmission more smooth and steady, is a kind of economic and efficient way
of HDMI signal extension.

2. Features

Transmits HDMI video and audio signals up to 200M over a single CAT6 cable;
Support video resolution max up to 1920*1080p@60Hz;
 Support over TCP/IP, one to many application with Ethernet switch/router.;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and
stable;
Built-in ESD protection system;
Simple to install, plug and play;
www.asd.co.th
ASIT-DT216L
HDMI Extender over TCP/IP
Cat5e/6 200m
H D M I
USER MANUAL
