AMPHORA Ready Assembly Instructions

Assembly Instructions
AMPHORA Ready
Warning
The glazing is very fragile and the edges are
prone to damage during the transport or
assembling.
When working with the shaped pieces of the
body, proceed very carefully, do not use exces-
sive force.
If a light damage occurs, you can use the
supplied silicone caulk or any nail-polish with
similar colour to repaint the discrepancy.
6)
Bolt the holders for accessories
to the opposite side to the side shelf.
Process
+
3)
Bolt partitions between individual legs
(direct the bends inwards). Tighten
all the already applied bolted joints.
7)
Using a bonding agent, glue the bio-mat (part I1 rear bottom according
to the cutting plan of the bio-mat) to the bottom cutout of the bottom rear
plate, place the plate by this bottom side with the bio-mat to a stand.

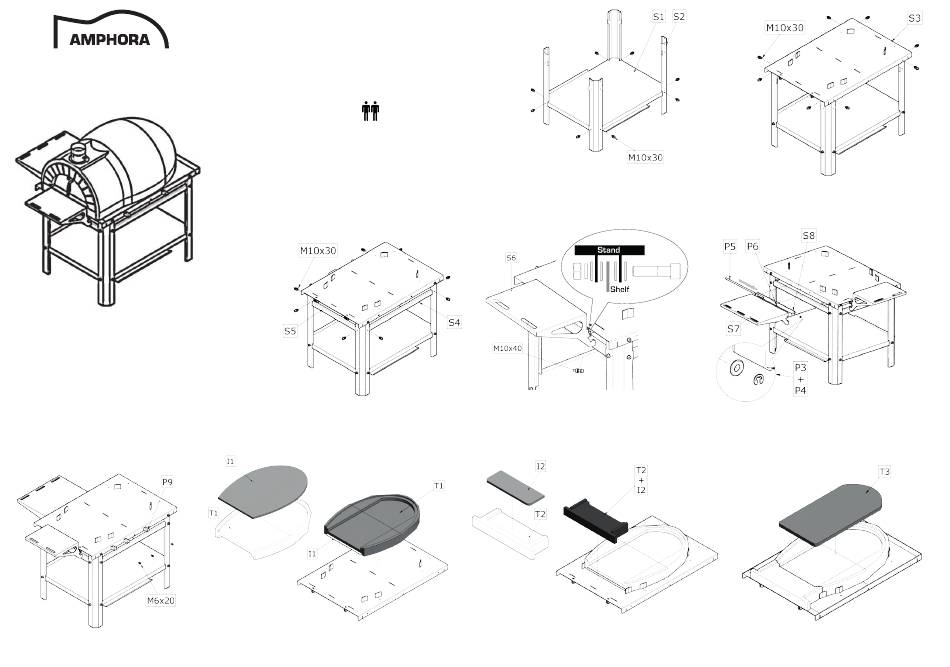

1)
Bolt the bottom plate to the stand legs. Do not
tighten the joints. In case the a screw doesn't easily
fit into a hole, make the hole wider with a file. Paint
over the altered surface with a paint for metal.
4)
Insert the front shelf into the grooves and bolt
it on both sides. Do not tighten the joints
too much, movement of the shelf in the grooves
needs to be secured so that it can tilt.
8)
Using a bonding agent, glue the bio-mat (part I2 front bottom according
to the cutting plan of the bio-mat) into the bottom cutout of the bottom
front plate, place the plate by this bottom side with the bio-mat to the stand.
2)
Screw stand legs to the top plate.
Do not tighten the joints.
5)
Bolt the batten S8 for the
side shelf to the stand. Attach the
shelf to the batten by pulling the axis through and securing it on
both sides against slipping out by washers and lock rings. The side to
which the side shelf is to be mounted may be selected as necessary.
9)
Place the inner plate
into the bottom plate cutout.
