Summary of Contents for TigerTech Smart Doorbell

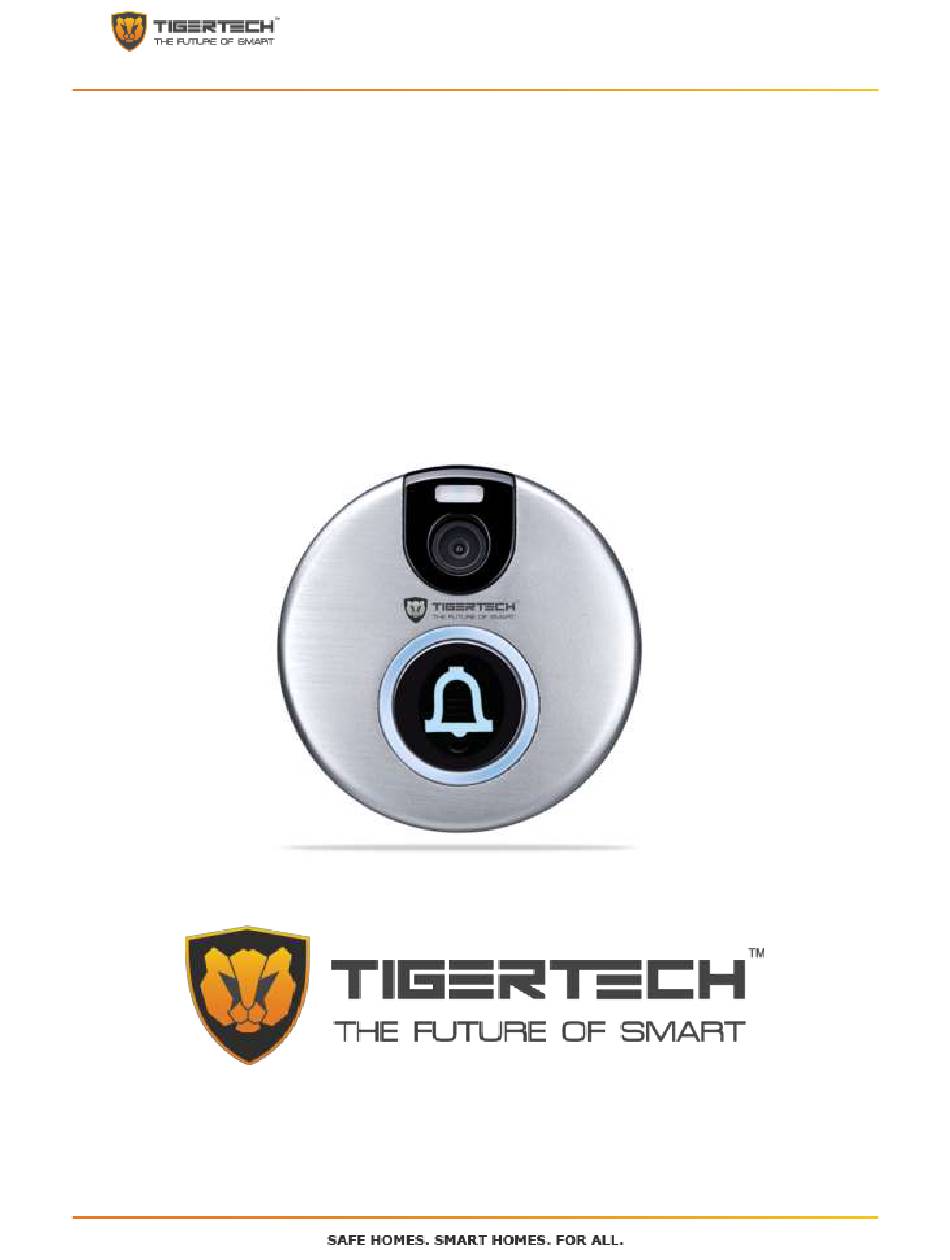

- Page 1 Smart Doorbell User Manual...
- Page 2 The Smart Doorbell has 2 parts that need to work successfully. One is the hardware and the second is the Mobile App. Please read the instructions and safety information in this manual before installing and operating the hardware to ensure the safe and correct use of the device.
-
Page 3: Product Introduction
Wall screws Product Introduction The TigerTech Wi-Fi Video Doorbell is used to remotely see, hear and speak to your visitors at your front door using your Smart Phone. This product supports functions such as remote real-time video conversation, remote snapshots, remote video recording, two-way audio, and motion alerts. - Page 4 Precautions for Safe Use 1. The Smart Doorbell works using [12V ~ 1A DC] supply. Do not connect the device directly to AC mains while wiring the device, otherwise this may cause electric shock and permanent damage to the device.
-
Page 5: Preparing For Installation
Doorbell Installation 1. Doorbell Main unit 2. Wall screws 3. Rear cover 4. Wall marking sticker 5. Stoppers 6. Wall 7. Power adapter Preparing for installation • Before physical installation, please ensure that the device is intact. Check that all the related accessories are available. - Page 6 • Remove the front cover of the wall marking sticker. Align the back cover of the bell with the wall marker and stick it onto the wall sticker. Now insert the screws through the back cover and fix the back cover to the wall. •...
-
Page 7: Install The App
IOS/Android Versions for App The App works on iOS 8.0 or higher and on Android 4.4 or higher. Install the App 1. Download the “WiBell” App on your Smartphone. 2. For iPhone, you can also download the app from App Store by searching for "WiBell" 3. - Page 8 The App will add the Doorbell to the App and a video window will appear on the App with a “Play” button viii. Press the “Play” button to start streaming live video from your Smart Doorbell b. Step 2 - Add the Doorbell to the APP (Option 2) i.
- Page 9 Step 3. Connect the Doorbell to your local Wi-Fi Network: Under the video window on the App screen, you will see a group of icons. Tap the rightmost icon (Settings Icon). ii. Choose “Advanced Setting” and then the “Wi-Fi” option. iii.
-
Page 10: Regular Use
Regular use Answer your Doorbell: When someone rings the bell, you will receive a notification. Tap the notification to open the App. Tap on “Answer” to start the App and show you a live video feed. You will now be able to see and hear a live feed of the surroundings outside your door. -
Page 11: Other Settings
Other Settings Show Stored Pictures & Videos Show Stored videos Advanced Settings List of Events, Alarms, Notifications Show stored pictures Naming the Doorbell 1. Default name given by the App for the bell is “MyBell” 2. Press “Settings” for the Doorbell you want to name. This will take you Edit Menu Screen 3. -
Page 12: Advance Settings
Advance Settings 1. Security Code: This allows you to change the Password for the Doorbell. Enter the old password and then enter the new password twice, followed by OK. 2. Video Quality: Allows you to choose between SD and HD with 5 options provided... - Page 13 3. Video Flip: Allows you to install the Doorbell upside down and flip the video stream upside down or mirror it. 4. Device Tone: This is to select the language. Default is English. 5. Motion Detection: The Doorbell has a video based motion sensor which can trigger an alert to your Smartphone and also start recording automatically whenever an alarm is triggered.
- Page 14 6. Recording Mode: This option allows you to record the video stream continuously or only on alarm (when motion is sensed). Doorbell Reset In case you have entered an incorrect Wi-Fi password, or have moved your Doorbell to a different location or you need setup the Doorbell again, please follow the following steps: 1.
- Page 15 Troubleshooting: Observation Possible Cause Action Doorbell shows Wi-Fi may have switched Go to “Settings” and press “Reconnect” “Offline” Doorbell shows Power may be off Connect Doorbell to UPS supported AC power “Offline” Doorbell shows Doorbell has Delete the doorbell from the App and add it again “Offline”...
-
Page 16: General Specifications
General Specifications Power Supply DC 12V/1000mA Power Usage < 3W Working Temperature -20℃ to 50℃ Working Humidity ≤100% Size of Doorbell Unit Diameter: 67.5mm (Circular) / Thickness: 20.5mm Packing Size L: 144mm x W: 86mm x H: 69mm Gross Weight 320g Image Maximum Resolution 1280 x 800... - Page 17 Please note that the device will not work when Wi-Fi is down and will not provide good results if Wi-Fi is slow. TigerTech does not undertake any responsibility for any losses of any kind and / or service disruption due to network failure or any other causes including force majeure causes.
- Page 18 Keeping the device Within Acceptable Temperatures. The TigerTech device is designed to be operated in regular temperatures in India (-20C to 50C). Extreme Low-or high-temperature conditions might cause the Device to stop working properly. Please keep the device out of direct sunlight.
