Summary of Contents for JOHARI DIGITAL T250

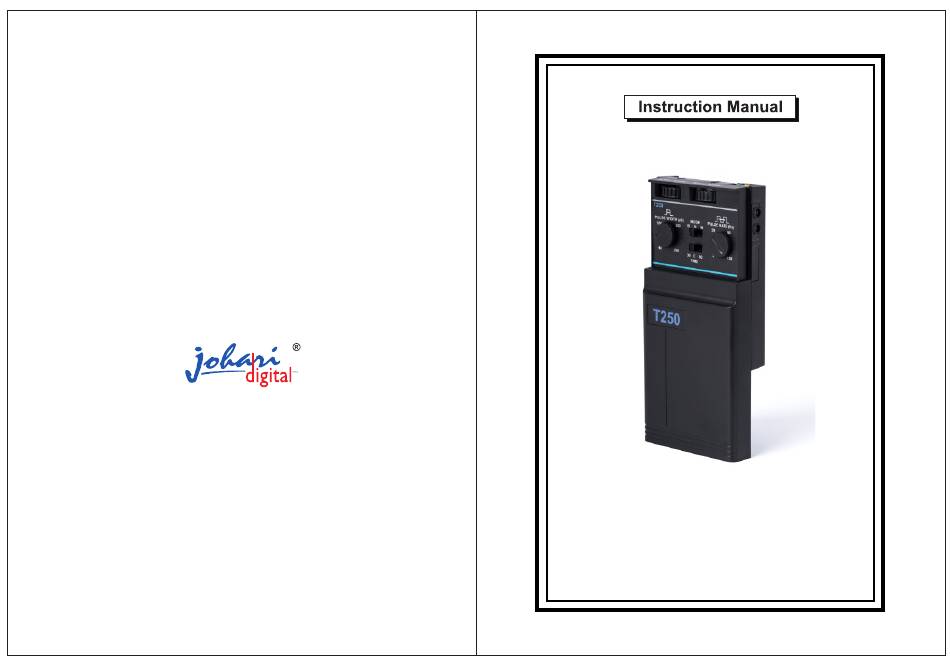

- Page 1 Manufactured by: JOHARI DIGITAL HEALTHCARE LTD. G-582-584, EPIP, Boranada, Jodhpur 342008 Rajasthan, India Tel : +91-291-3091100 www.joharidigital.com T250 18Apr2016...
-
Page 2: Table Of Contents
ACCESSORIES SPECIFICATIONS CONTROLS AND FUNCTIONS HOW TO OPERATE T250 ELECTRODE CARE AND SELECTION Nomenclature: The following are the symbols used in manual and sticker: Hardware symbols: CONNECTING THE DEVICE... -
Page 3: Instructions For The User Of
To be used under doctor prescription and control (not suggestion but Inspect connectors before each use. obligation). The T250 system is not designated to prevent the ingress of water or liquids. If system persist, contact doctor. Ingress of water or liquids could cause malfunction of internal components To be used exclusively on not injured skin. -
Page 4: Indications For Use
Electrical current of this magnitude must not flow through the thorax T250 is indicated to be used for Symptomatic relief and management of because it may cause cardiac arrhythmia. chronic intractable pain and/or as an adjunctive treatment in the Patients with an implanted Neurostimulation device must not be management of post-traumatic and post-surgical acute pain. -
Page 5: Adverse Reaction
The irritation can usually be reduced by using an alternate electrode placement. T250 comes complete with all the necessary accessories and below is a list of items that are included: TENS electrode placement should be based on the guidance of the prescribing physician. -
Page 6: Specifications
T250 INSTRUCTION MANUAL T250 5. SPECIFICATIONS WAVEFORM SPECIFICATIONS: Channels SYSTEM SPECIFICATIONS: Waveform Asymmetrical biphasic Square T250 Unit Pulse Rate Selectable from 2 to 150 Hz Length 9.3cm (3.70”) Pulse Width Selectable from 40 to 260 µS Width 6.4cm (2.54”) Height 3.3cm (1.3”) -
Page 7: Controls And Functions
Channel-2 On/Off and 9 Volt Adaptor Socket Amplitude Control (*Optional) 7. HOW TO OPERATE T250 Slide Cover A cover conceals the controls for the Pulse Rate, Pulse Width, Mode and the Battery compartment. Pull down in order to open the cover. -
Page 8: Electrode Care And Selection
Replace condition. Remember, to slightly change the location of the electrodes reusable electrodes when needed. placed on your body, if T250 device is used continuously for... -
Page 9: Battery Information
Slowly turn the Amplitude Control Knob in a clockwise direction, until unit. Place the T250 unit and accessories in the pouch and store in a cool you reach the settings recommended by your Physician. Repeat with and dry place. -
Page 10: Troubleshooting
Keep the device properly covered, when not in use to keep out dust. If your T250 unit does not seem to be operating correctly, refer to the chart Store the device in a proper and dry place. Damp environment cause below to determine what may be wrong, Should none of these measures rust and affect the functioning of device. -
Page 11: Suggested Electrode Placement Chart
INSTRUCTION MANUAL T250 INSTRUCTION MANUAL T250 14. SUGGESTED ELECTRODE PLACEMENT CHART 15. WARRANTY This product warranty extends to the original consumer /purchaser of the product. Warranty duration This product is warranted to the original consumer for a period of one (1) year from the original purchase date. - Page 12 The repaired or replacement product will be in warranty for the balance of the one-year JOHARI DIGITAL HEALTHCARE LTD. warranty period and an additional one-month period. No charge will be G-582-584, EPIP, Boranada, Jodhpur 342008 Rajasthan, India made for such repair or replacement.
