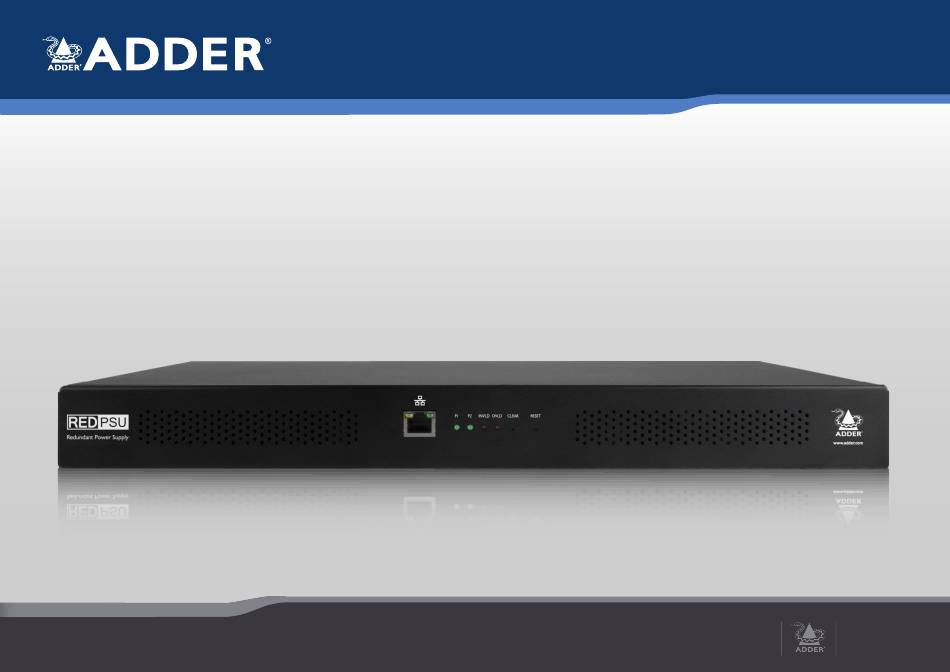

- Page 1 RED-PSU User Guide Experts in Power Connectivity Solutions Solutions...
-
Page 2: Table Of Contents
To remove a power module ..............6 Network connection ..................7 Indicators ......................14 Restoring power outputs .................15 To restore a power output ................15 Resetting the RED-PSU ..................15 Device reset from the front panel ............15 Factory reset from the front panel ............15 Further information Getting assistance ....................16 Warranty ......................17... -
Page 3: Welcome
After start up, each power port is carefully monitored to ensure safety protection while also maintaining The heart of the RED-PSU system is a modular chassis which occupies a 1U 19” rack power consistency to the multiple devices: slot. -
Page 4: Supplied Items
PSU-RED1-16 PSU-RED2-8 PSU-RED2-16 12VDc link cable (2m) 5VDc converter dongle (2m) (one required per 12VDc device) ReD-PSu chassis with (one required per 5VDc device) Part number: VSC48 8 or 16 power output ports Part number: PSU-RPS-5V Secondary power module Part number: PSU-RED-460W... -
Page 5: Installation
To assist with mounting dongles in congested spaces, an optional • The RED-PSU main chassis occupies a single 1U (19”) rack slot and requires either elongated rack bracket is available for AdderLink Infinity units (see page 3) that allows one or two (when the redundancy option is used) mains inputs. -
Page 6: Connections
VSC48 link cable device, you merely need to use a basic cable (part link between the RED-PSU port and the device, while also transforming the voltage level. number: VSC48). However, if you need to power a Each converter dongle has two leads: a 2.5mm power jack and a locking Kycon 3-pin ®... -
Page 7: Fitting/Removing A Power Module
(as well as the indicator on the power module itself) will flash. Note: Module bay 1 is on the left as you view the rear of the RED-PSU chassis, module bay 2 is on the right. -
Page 8: Network Connection
The RED-PSU allows remote monitoring and control via a standard network connection. Note: The patch cable used to link with the RED-PSU must be screened to the S/FTP level. to connect to a network 1 Use a screened patch cable (cross-... -
Page 9: Configuration
Ü 1 If you need to make a temporary connection for configuration 2 Run a web browser on your computer and enter the IP address of the RED-PSU. The purposes, use a standard patch cable (cross-over or straight default IP address setting is: 192.168.1.22 connections are both supported) to link the Ethernet 10/100 3 If requested, enter your username and password to log on. -
Page 10: The Status & Control Page
the StatuS & contRol PaGe This opening page of the manager application provides a useful real time overview of the power input and output status. Using this page you can quickly ascertain the key metrics related to Key metrics for the single, or dual, power module(s), the power modules (e.g. -
Page 11: The General Configuration Page
• Description - a further opportunity to add more information about the RED-PSU unit. • Location - a useful feature if you have multiple RED-PSU units distributed around. • Login required - when ticked, all users will be requested to enter a valid username and password prior to access being granted. -
Page 12: The Network Settings Page
When unticked, use the other options to configure the network settings manually. • IP Address - set the IP address for the RED-PSU. • Netmask - set a subnet mask to accompany the IP address. -
Page 13: The User Accounts Page
PaGe This page allows you to administer the details for users of the RED-PSU unit. By its nature RED-PSU is not an end user access product, so every authorized user is considered as an admin with the same rights. Extra users can be added and deleted, however, the main ‘admin’... -
Page 14: The System Operations Page
Device reset This option will reset the operation of the RED-PSU unit, equivalent to a cold reboot (as if power to it had been removed and restored). All power outputs will be removed and then restored in a staggered manner defined by the start up delay and Channel interval settings within the General configuration page. -
Page 15: Operation
The RED-PSU system is designed to be transparent in operation. inDicatoRS The RED-PSU main chassis contains various indicators to provide you with status information. There are four main indicators on the front panel as well as green and amber indicators on the network port connector. -
Page 16: Restoring Power Outputs
Welcome section, the RED-PSU ports are carefully monitored to If it becomes necessary to reset the entire RED-PSU unit, this can be achieved either ensure safety protection while also maintaining power consistency to the multiple using the management application (see... -
Page 17: Further Information
• Safety information • online solutions and updates – www.adder.com/support • Warranty Check the Support section of the adder.com website for the latest solutions and • Radio frequency energy statements firmware updates. • technical support – www.adder.com/contact-support-form For technical support, use the contact form in the Support section of the... -
Page 18: Warranty
• Power modules contain no user serviceable parts - do not dismantle. Adder will replace or repair it free of charge. No liability can be accepted for damage due • Do not use an unearthed power socket or extension cable. -
Page 19: Radio Frequency Energy
RaDio FRequency eneRGy A Category 5e (or better) twisted pair network cable must be used to connect the units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances. european emc directive 2004/108/ec This equipment has been tested and found to comply with the limits for a class A computing device in accordance with the specifications in the European standard... - Page 20 Web: www.adder.com Contact: www.adder.com/contact-details Support: www.adder.com/support © 2015 Adder Technology Limited All trademarks are acknowledged. www.ctxd.com Documentation by: Part No. MAN-PSU-RED-ADDER • Release 1.0a...
-
