Summary of Contents for Temelsan MAKASMN

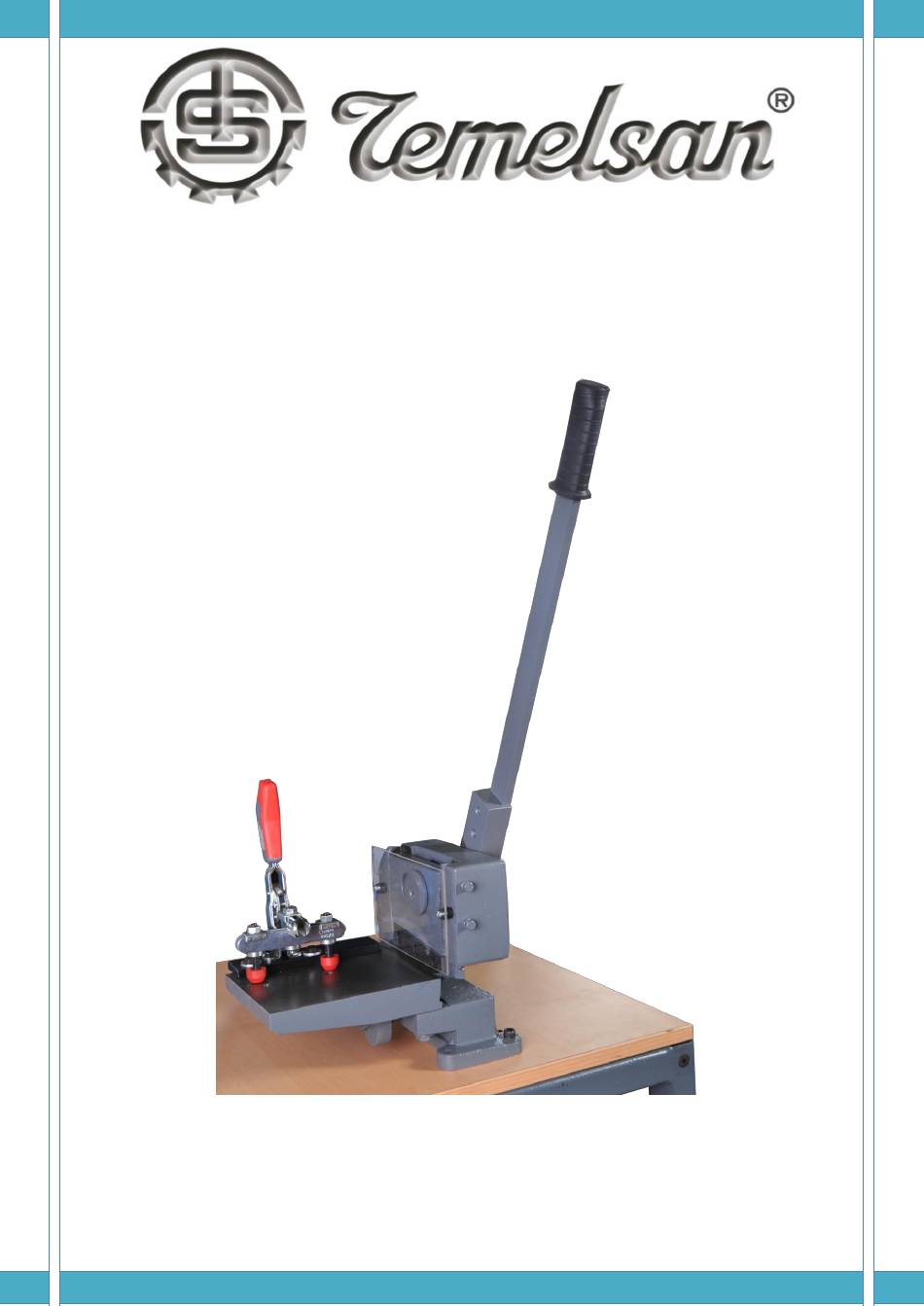

- Page 1 MAKASMN CUTTING MACHINE USER MANUAL Congratulation to your new TEMELSAN Cutting Machine MAKASMN...
-
Page 2: Table Of Contents
ADJUSTMENT OF UPPER BLADE BACK OFF ................7 ADJUSTMENT OF SUPPORT PLATE .................... 7 ADJUSTMENT OF CUTTING PLATE ..................... 8 TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ. Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE TEL: +90 (212) 544-2518 FAX: +90 (212) 577-6557 www.temelsan.com temelsan@temelsan.com... -
Page 3: Basic Informations
Below safety requirements must be applied without skipping anything and priority case to carry out. TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ. Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE TEL: +90 (212) 544-2518 FAX: +90 (212) 577-6557 www.temelsan.com temelsan@temelsan.com... -
Page 4: Qualifield Personnel
Finger protection glass AREAS OF USAGE The Cutting machine of Temelsan MAKASMN is used for any kind of steel bands and band saw blades or bi-metal or carbide tipped band saw blades. The cutting capacity for Band Saw Blades is from minimum 6x0.65mm up to a maximum 100 x1.60mm. -
Page 5: Issues
The costumer is free to montage it on place that is decided from technical personnel. TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ. Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE TEL: +90 (212) 544-2518 FAX: +90 (212) 577-6557 www.temelsan.com temelsan@temelsan.com... -
Page 6: Operation Steps
REMOVING SCREWS GLASS LOWER BLADE BACK EDGE SUPPORT CUTTING PLATE AND SUPPORT ADJUSTMENT SCREWS TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ. Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE TEL: +90 (212) 544-2518 FAX: +90 (212) 577-6557 www.temelsan.com temelsan@temelsan.com... -
Page 7: Service The Cutter
FINGER PROTECTION GLASS SCREWS UPPER BLADE SCREWS UPPER BLADE ÜST BIÇAK ALT BIÇAK TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ. Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE TEL: +90 (212) 544-2518 FAX: +90 (212) 577-6557 www.temelsan.com temelsan@temelsan.com... -
Page 8: Adjustment Of Upper Blade Back Off
Screw it too hard the Support plate do not lose position. SUPPORT PLATE TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ. Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE TEL: +90 (212) 544-2518 FAX: +90 (212) 577-6557 www.temelsan.com temelsan@temelsan.com... -
Page 9: Adjustment Of Cutting Plate
NUT NR 1 NUT NR 2 CUTTING PLATE ADJUSTMENT NUTS TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ. Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE TEL: +90 (212) 544-2518 FAX: +90 (212) 577-6557 www.temelsan.com temelsan@temelsan.com...
