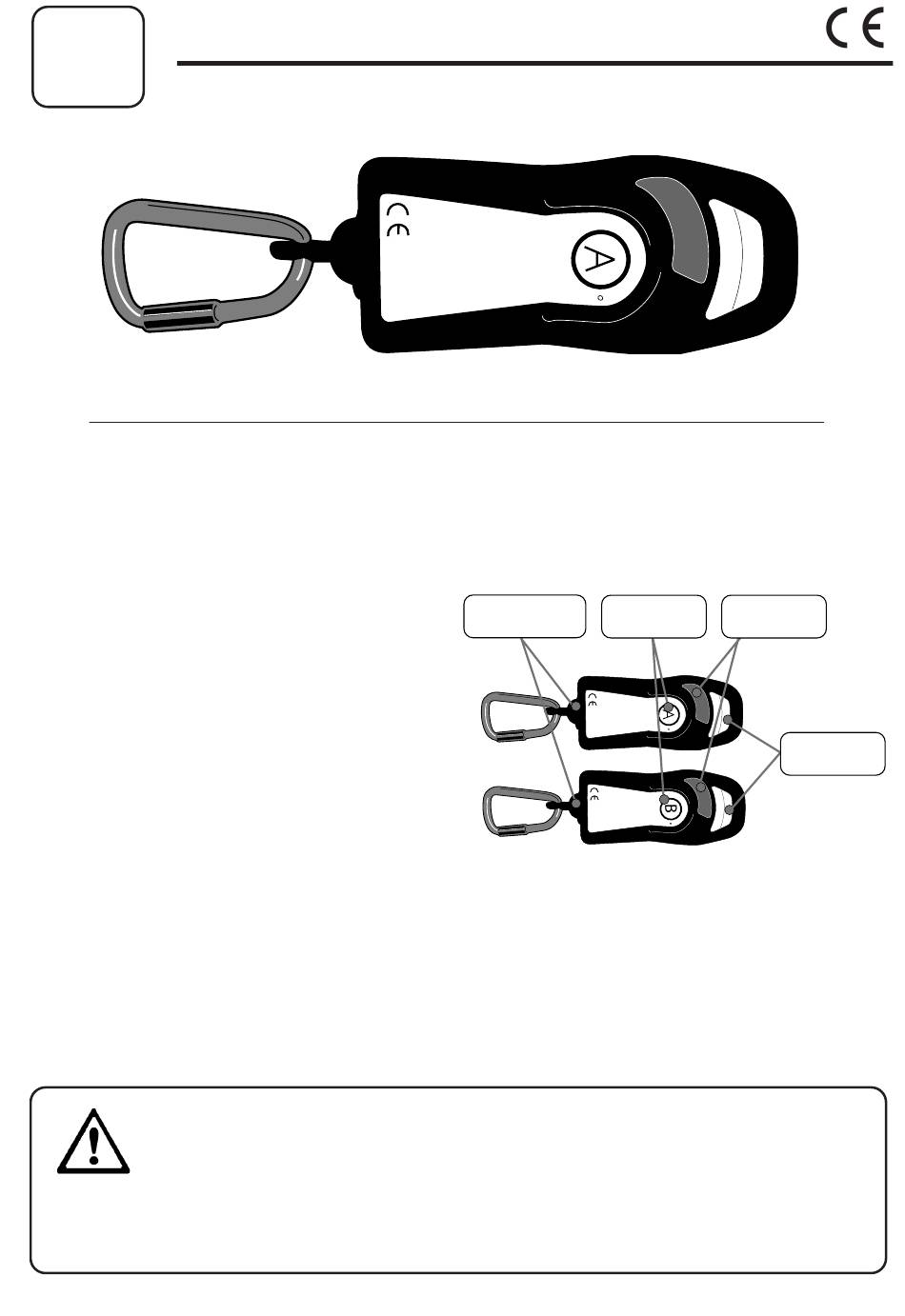

QT412RXA / QT412RXCA
Q
RECHARGEABLE DUAL-ACTION INFRARED / RADIO TRANSMITTER
READ ALL OF THESE INSTRUCTIONS BEFORE USING THIS TRANSMITTER
IF YOU INTEND TO USE THIS TRANSMITTER WITH AN 800 SERIES CALL SYSTEM,
REFER TO THE SEPARATE INSTRUCTION BOOKLET, DOCUMENT NO. DNU4120002.
Quantec's QT412 transmitters allow users to activate calls on a Quantec system. They have a typical
infrared (IR) transmitting range of 10 metres (line of sight) and a typical radio frequency (RF)
transmitting range of approx. 60 metres, dependent on physical conditions / environmental factors.
Each transmitter has two IR emitter
windows (one on each side to maximise
performance), two buttons (A & B) and a
retained 'pull clip'.
Depending on the model purchased,
pressing its buttons, or activating its pull
clip, will generate the following levels of
call on compatible Quantec IR call points, IR
ceiling receivers and/or RF receivers.
Model No.
QT412RXA
QT412RXCA
Note that different levels of call to those listed above can be generated, if required. However, to
do this the transmitter must be reconfigured by an experienced engineer using a QT423
Configurator (see page 4 for details). Note these instructions explain how to use standard factory-
supplied QT412RXA and QT412RXCA transmitters only.
IMPORTANT
• The transmitter must be charged for a period of 14 hours before it is first
used - see RECHARGING THE TRANSMITTER, page 3.
• If using the transmitter with an existing Quantec system please refer to
Button A
Attack Call
Standard Call
Approved Document No: DNU4120001 Rev 4 • Page 1 of 4
PULL CLIP
MECHANISM
Button B
Attack Call
Standard Call
PUSH
IR EMITTER
BUTTONS
WINDOWS
TEXT BOXES
Pull Clip
Attack Call
Attack Call
MARKABLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QT412RXA and is the answer not in the manual?

Questions and answers

Related Manuals for Quantec QT412RXA

Summary of Contents for Quantec QT412RXA

  • Page 1 REFER TO THE SEPARATE INSTRUCTION BOOKLET, DOCUMENT NO. DNU4120002. Quantec’s QT412 transmitters allow users to activate calls on a Quantec system. They have a typical infrared (IR) transmitting range of 10 metres (line of sight) and a typical radio frequency (RF) transmitting range of approx.
  • Page 2 TRANSMITTER BATTERY, page 3 for further details. • The IR and RF signals generated by the transmitter are picked up by any Quantec IR call points, IR ceiling receivers and/or RF receivers within its range which inform Quantec that an attack is taking place.
  • Page 3 TESTING THE TRANSMITTER A Quantec IR test receiver, the QT302RT, is available to verify the correct IR operation of all QT412 range transmitters. It is recommended that at least one is used per system. Please be aware when testing the transmitter’s IR operation that any RF receivers within its range may...
  • Page 4 • Set the transmitter’s User ID code (from 0 to 255). See COMPATIBILITY ISSUES, below. • Assign the transmitter an RF Group Address (0 to 15) to match the set up of any Quantec RF receivers on the system and prevent inadvertent triggering of any local receivers.
