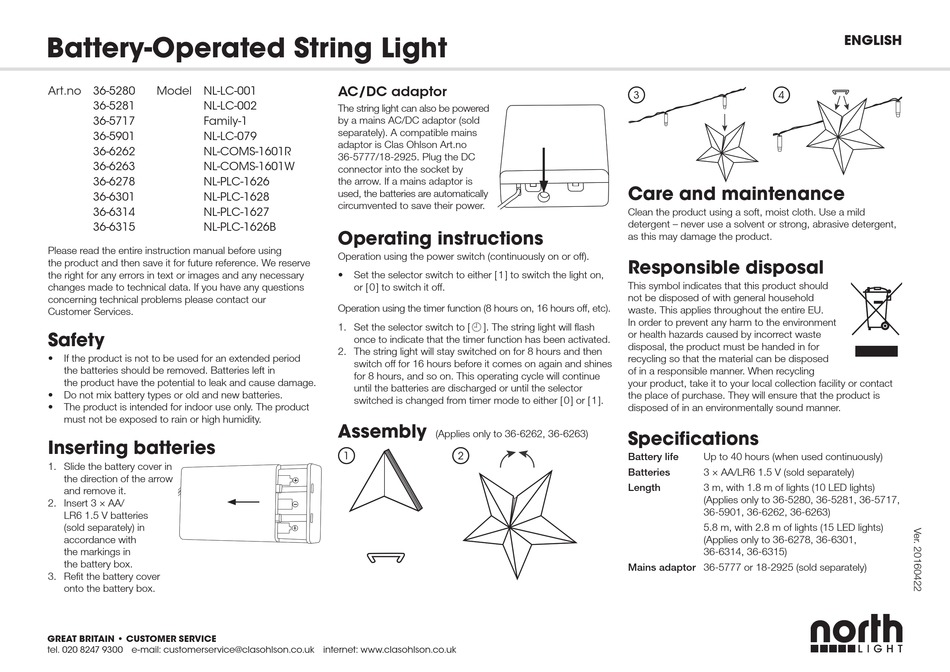

North Light NL-LC-001 Instruction Manual

Battery-Operated String Light
Art.no 36-5280 Model NL-LC-001
36-5281 NL-LC-002
36-5717 Family-1
36-5901 NL-LC-079
36-6262 NL-COMS-1601R
36-6263 NL-COMS-1601W
36-6278 NL-PLC-1626
36-6301 NL-PLC-1628
36-6314 NL-PLC-1627
36-6315 NL-PLC-1626B
Please read the entire instruction manual before using
the product and then save it for future reference. We reserve
the right for any errors in text or images and any necessary
changes made to technical data. If you have any questions
concerning technical problems please contact our
Customer Services.

Safety

• If the product is not to be used for an extended period
the batteries should be removed. Batteries left in
the product have the potential to leak and cause damage.
• Do not mix battery types or old and new batteries.
• The product is intended for indoor use only. The product
must not be exposed to rain or high humidity.

Inserting batteries

1. Slide the battery cover in
the direction of the arrow
and remove it.
2. Insert 3 × AA/
LR6 1.5 V batteries
(sold separately) in
accordance with
the markings in
the battery box.
3. Refit the battery cover
onto the battery box.
GREAT BRITAIN • CUSTOMER SERVICE
tel. 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk

AC/DC adaptor

The string light can also be powered
by a mains AC/DC adaptor (sold
separately). A compatible mains
adaptor is Clas Ohlson Art.no
36-5777/18-2925. Plug the DC
connector into the socket by
the arrow. If a mains adaptor is
used, the batteries are automatically
circumvented to save their power.

Operating instructions

Operation using the power switch (continuously on or off).
• Set the selector switch to either [ 1 ] to switch the light on,
or [ 0 ] to switch it off.
Operation using the timer function (8 hours on, 16 hours off, etc).
1. Set the selector switch to [  ]. The string light will flash
once to indicate that the timer function has been activated.
2. The string light will stay switched on for 8 hours and then
switch off for 16 hours before it comes on again and shines
for 8 hours, and so on. This operating cycle will continue
until the batteries are discharged or until the selector
switched is changed from timer mode to either [ 0 ] or [ 1 ].

Assembly

(Applies only to 36-6262, 36-6263)
1 2
3 4

Care and maintenance

Clean the product using a soft, moist cloth. Use a mild
detergent – never use a solvent or strong, abrasive detergent,
as this may damage the product.

Responsible disposal

This symbol indicates that this product should
not be disposed of with general household
waste. This applies throughout the entire EU.
In order to prevent any harm to the environment
or health hazards caused by incorrect waste
disposal, the product must be handed in for
recycling so that the material can be disposed
of in a responsible manner. When recycling
your product, take it to your local collection facility or contact
the place of purchase. They will ensure that the product is
disposed of in an environmentally sound manner.

Specifications

Battery life Up to 40 hours (when used continuously)
Batteries 3 × AA/LR6 1.5 V (sold separately)
Length 3 m, with 1.8 m of lights (10 LED lights)
(Applies only to 36-5280, 36-5281, 36-5717,
36-5901, 36-6262, 36-6263)
5.8 m, with 2.8 m of lights (15 LED lights)
(Applies only to 36-6278, 36-6301,
36-6314, 36-6315)
Mains adaptor 36-5777 or 18-2925 (sold separately)
ENGLISH
