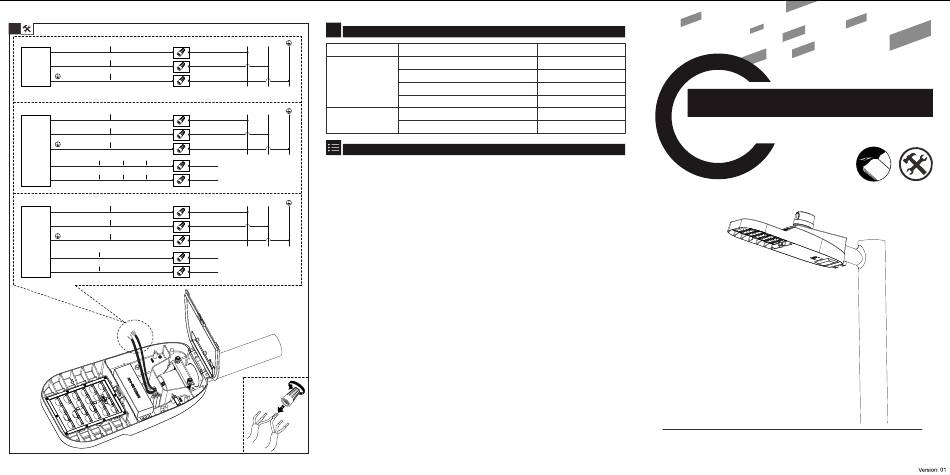

TEKNOLED TRAIL Series Instruction Manual

2.
LINE 1 LINE 2
L
Brown Black
N
Blue White
LIGHT
Yellow-Green Green
Non Dimmable / Daylight Sensor
LINE 1 LINE 2
L
Brown Black
N
Blue White
Yellow-Green Green
LIGHT
LINE 1 LINE 2 LINE 3 LINE 4
DIM+
Blue Brown Purple White
DIM-
White Blue Gray Black
LINE 1 LINE 2
L
Brown Black
N
Blue White
Yellow-Green Green
LIGHT
LINE 1 LINE 2
Da1
Brown Purple
Da2
Blue Gray
?

Troubleshooting

L N
Problem
The power line is improperly connected.
The power plug is loose.
LEDs stop working
The LED driver malfunctions.
The LED chip is damaged.
L N
The output of the driver is abnormal.
LEDs flash on and off
The LED chip breaks down.

Warranty

5 years warranty for original purchaser of LED product that is identified on seller's invoice
reflecting its original purchase (the "Product").
1. In order to make a warranty claim, you must notify seller in writing within sixty(60) days after your
1-10V Dimmable
discovery of the defect, provide proof of purchase such as the invoice and comply with seller's other
warranty requirements. Upon receiving that notice, to ascertain why fixtures stop working, evidences
L N
would be needed for seller's QC Team to analyze. Seller may require you to promptly return the Product
to Seller when necessary, freight prepaid.
2. The determination of whether the Product is defective shall be made by Seller in its sole discretion with
consideration given to the over all performance of the Product.
3. If seller determines the Product is defective, Seller will elect, in its sole discretion, repair the Product
or replace the Product. Seller reserves the right to utilize new, reconditioned, refurbished, repaired or
remanufactured products or parts in the warranty repair or replacement process. Such products and
parts will be comparable in function and performance to an original product or part, as determined by
Seller in its sole discretion, and warranted for the remainder of the original warranty period. However,
Dali Dimmable cost of labor and equipment to remove the defective product and install a repaired or a replacement
Product at the end-user facility are excluded. Supplier's aggregate liability with respect to a defective
product shall in any event be limited to the money paid to buyer for that defective product.
The following circumstances will not be warranted:
1. Damage caused by force majeure such as war, riots, sabotage, cyclones, earthquakes, tidal waves,
flooding, lighting strikes, explosions, fire, flood, etc.
2. Damage caused by user's improper delivery, defects caused by wrong operation, wrong treatment
and destruction of machinery.
3. Dismantling or modification or improper maintenance or repairing of the products without the
supplier's authorization.
4. Damage caused by buyer or installer using bad quality cable or other mismatching electronic parts.
5. This warranty is invalid if the product is not used for the purpose for which is originally designed. Any
disputes occurred shall be applied to the laws and regulations of P.R.C.
The seller has the sole right to interpret and amend the above articles.
Possible Cause Solutions
Reconnect the power cable.
Firmly plug the power in.
Replace with new driver.
Replace with new LEDs.
Replace with new driver.
Replace with new LED chip.
LED Street Light
Instruction Manual
