AllSee PushShare Dongle User Manual

For use with interactive touch display ptxxf
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

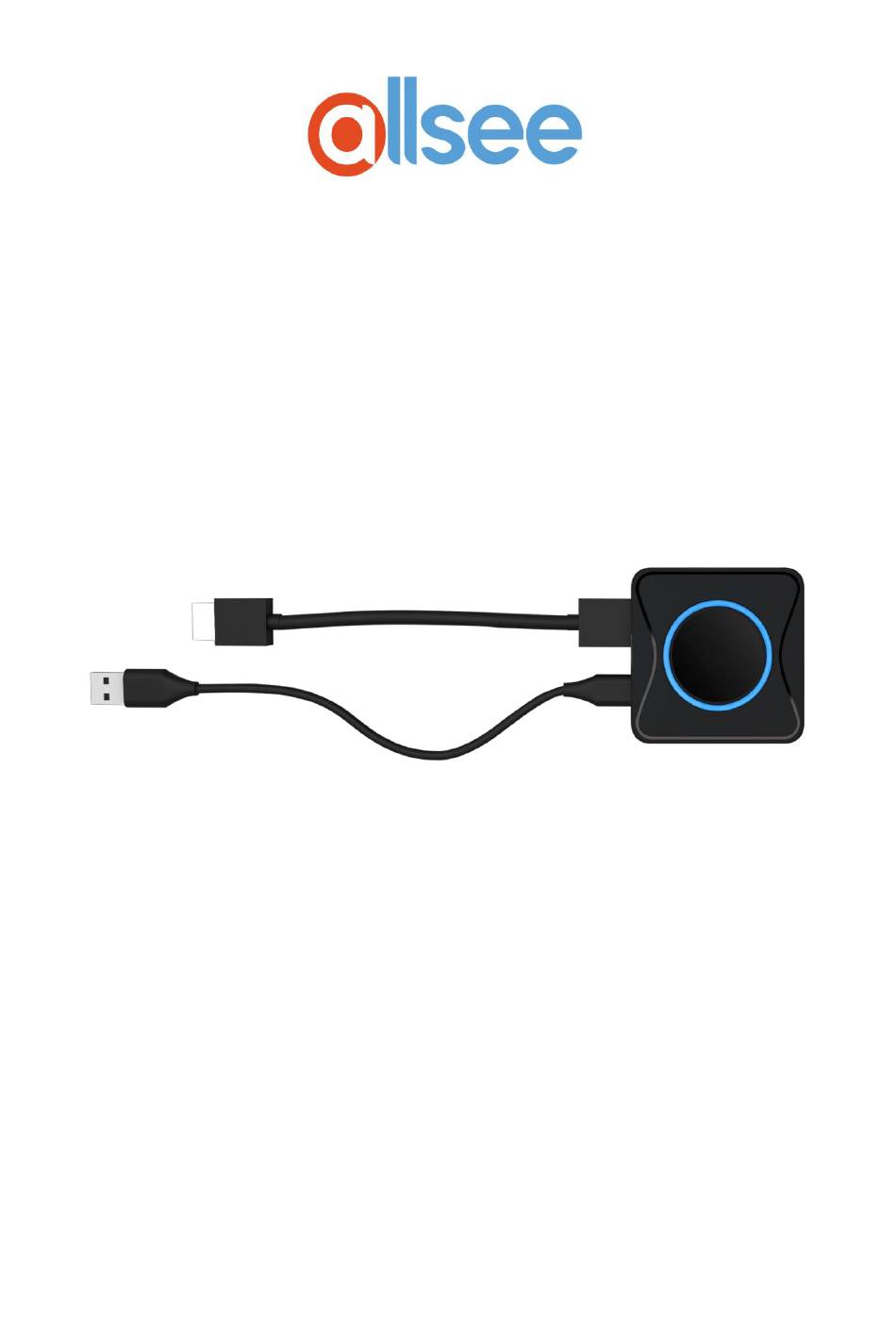

PushShare Dongle
For use with Interactive Touch Display (PTxxF)
User Manual
Manual Version PSDVPTF1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PushShare Dongle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AllSee PushShare Dongle

  • Page 1 PushShare Dongle For use with Interactive Touch Display (PTxxF) User Manual Manual Version PSDVPTF1.1...
  • Page 2 PushShare Dongle (PTxxF) User Manual Safety Instructions • Read the instruction manual carefully before use. • Use only parts or accessories (especially power adapters) recommended by the manufacturer. Unapproved parts may be hazardous and cause injures to the product or users, and will void the warranty.
  • Page 3 PushShare Dongle (PTxxF) User Manual Quick Start Guide NOTE: This section is only relevant if the PushShare application is already installed on your screen. If the PushShare application is not installed on your screen, please go to the Section entitled “Installing the PushShare Application”.
  • Page 4 PushShare Dongle (PTxxF) User Manual 3. Plug the USB cable from the PushShare device to the screen’s “USB” input. This will automatically pair with the screen. 4. Once the pairing is in process, the device will begin to flash. Page 3...
  • Page 5 PushShare Dongle (PTxxF) User Manual 5. Once the flashing process has stopped on the PushShare device, a “Wireless Presentation” notification will appear on the screen. 6. When the “Wireless Presentation” notification appears, please tap “OK”. 7. Remove the PushShare device from the screen. The screen is now paired with the PushShare device.
  • Page 6 PushShare Dongle (PTxxF) User Manual Using the PushShare Dongle 1. Attach the USB and HDMI cable provided in the box to the PushShare device. 2. Insert the USB and HDMI into the PC you wish to project to the screen.
  • Page 7 PushShare Dongle (PTxxF) User Manual 3. Press the button on the PushShare device to activate the device and begin projecting onto the screen. 4. Once the device shows a red light instead of blue, this means the device is now connected and projecting to the screen.

  • Page 8: Table Of Contents

    Introduction ..........................8 Box Contents ........................8 Product Overview ......................8 Installing the PushShare Application ..................9 Pairing the PushShare Dongle ....................12 Using the PushShare Dongle ..................... 15 Mirroring from Mobile Devices ..................15 4.1.1 Apple Devices ......................15 4.1.2...

  • Page 9: Introduction

    PushShare Dongle (PTxxF) User Manual 1. Introduction PushShare allows users to wirelessly mirror their device to a presentation screen at the push of a button. Improve the productivity of your meetings by allowing participants to effortlessly collaborate, without the need for any technical training or software installation. PushShare has universal compatibility with any user device with a HDMI output and is suitable for all spaces, from small huddle rooms to large conference rooms, providing a versatile and hassle-free solution.

  • Page 10: Installing The Pushshare Application

    PushShare Dongle (PTxxF) User Manual 2. Installing the PushShare Application Click here for SRV File Click here for UI File 1. Download the files from the above links. 2. Extract them both onto a blank USB stick. 3. Insert the USB into one of the USB ports on the front of the screen.
  • Page 11 PushShare Dongle (PTxxF) User Manual 6. Select the “SRV” APK, and select “Install”. Page 10...
  • Page 12 PushShare Dongle (PTxxF) User Manual 7. Once installed, do the same again with the “UI” APK. Page 11...

  • Page 13: Pairing The Pushshare Dongle

    PushShare Dongle (PTxxF) User Manual 3. Pairing the PushShare Dongle 1. Remove the PushShare device from the box. 2. Attach the USB and HDMI cable provided in the box to the PushShare device. Page 12...
  • Page 14 PushShare Dongle (PTxxF) User Manual 3. Plug the USB cable from the PushShare device into the screen’s “USB” input. This will automatically pair with the screen. 4. Once the pairing is in process, the device will begin to flash. Page 13...
  • Page 15 PushShare Dongle (PTxxF) User Manual 5. Once the flashing process has stopped on the PushShare device, a “Wireless Presentation” notification will appear on the screen. 6. When the “Wireless Presentation” notification appears, please tap “OK”. 7. Remove the PushShare device from the screen. The screen is now paired with the PushShare device.

  • Page 16: Using The Pushshare Dongle

    PushShare Dongle (PTxxF) User Manual 4. Using the PushShare Dongle 4.1 Mirroring from Mobile Devices 4.1.1 Apple Devices From your home screen, go to Settings > Wi-Fi and make sure Wi-Fi is turned on. Select the name of the secure Wi-Fi network you want to join. This can be located in the top right-hand corner of the “How to Connect”...
  • Page 17 PushShare Dongle (PTxxF) User Manual Tap the “AirPlay” or “Screen Mirroring” option. Tap “MeetingPad-XXXX ” and the display on your device will now be mirrored on screen. Page 16...

  • Page 18: Android Devices

    PushShare Dongle (PTxxF) User Manual 4.1.2 Android Devices From your home screen, go to “Settings > Wireless & Networks > Wi-Fi” and make sure Wi-Fi is turned on. Select the name of the secure Wi-Fi network you want to join. This can be located in the top right-hand corner of the “How to Connect”...
  • Page 19 PushShare Dongle (PTxxF) User Manual On your Android mobile, please download or open a “QR Code Scanner” using the Google play store. Page 18...
  • Page 20 PushShare Dongle (PTxxF) User Manual Open the “QR Code Scanner” and scan the QR code that is located on the bottom right of the “PushShare” app on the screen. 6. Once the QR Code has been scanned, select “Web”. 7. Download “pushshare.apk” when the pop up menu appears.
  • Page 21 PushShare Dongle (PTxxF) User Manual 8. Open the newly downloaded “PushShare” APK from the downloads folder on your Android device. Please install this app. 9. Navigate to the newly installed “PushShare” app and open. 10. Select the device you want to mirror to, listed as “PushShare_XXXX” on the app.
  • Page 22 PushShare Dongle (PTxxF) User Manual 11. Give permission to “Draw over other apps” once prompted on your Android device. 12. The Android device is now connected to the screen and you can mirror by selecting the “Mirroring” option. NOTE: If you would like to browse the internet on your device while mirroring your Receiving Unit, will need to be connected to your network via Ethernet cable.

  • Page 23: Faqs

    Please connect both the HDMI and USB cables provided from the PushShare dongle to your device. The HDMI cable must be connected as well as the USB cable to send the video and audio signals.
  • Page 24 PushShare Dongle (PTxxF) User Manual 1. Attach the USB and HDMI cable provided in the box to the PushShare device. 2. Insert the USB and HDMI into the PC you wish to project to the screen. Page 23...
  • Page 25 PushShare Dongle (PTxxF) User Manual 3. Press the button on the PushShare device to activate the device and begin projecting onto the screen. 4. Once the device shows a red light instead of blue, this means the device is now connected and projecting to the screen.
  • Page 26 Please connect both the HDMI and USB cables provided from the PushShare dongle to your device. The USB cable must be connected as well as the HDMI cable to provide power to the PushShare dongle.
  • Page 27 PushShare Dongle (PTxxF) User Manual 1. Attach the USB and HDMI cable provided in the box to the PushShare device. 2. Insert the USB and HDMI into the PC you wish to project to the screen. Page 26...
  • Page 28 PushShare Dongle (PTxxF) User Manual 3. Press the button on the PushShare device to activate the device and begin projecting onto the screen. 4. Once the device shows a red light instead of blue, this means the device is now connected and projecting to the screen.
  • Page 29 The PushShare dongle must be paired to your Interactive Touch Display or PushShare Receiving Unit. To do this, connect the PushShare dongle to your Interactive Touch Display or PushShare Receiving Unit and wait until the dongle’s indication light turns red.
  • Page 30 PushShare Dongle (PTxxF) User Manual 5.5 I have paired my PushShare dongle to my Interactive Touch Display and connected it to my device via HDMI and USB but the indication light keeps flashing so won’t let me mirror. Please ensure that you have enabled the hotspot setting on your Interactive Touch Display.
  • Page 31 PushShare Dongle (PTxxF) User Manual 5. Navigate to “Portable Hotspot” and tap this button to get into the portable hotspot menu. Page 30...
  • Page 32 PushShare dongle are not long enough. Please use the USB cable provided with the PushShare dongle to provide power, then a longer third party HDMI cable can be used to carry the audio and video signals.
