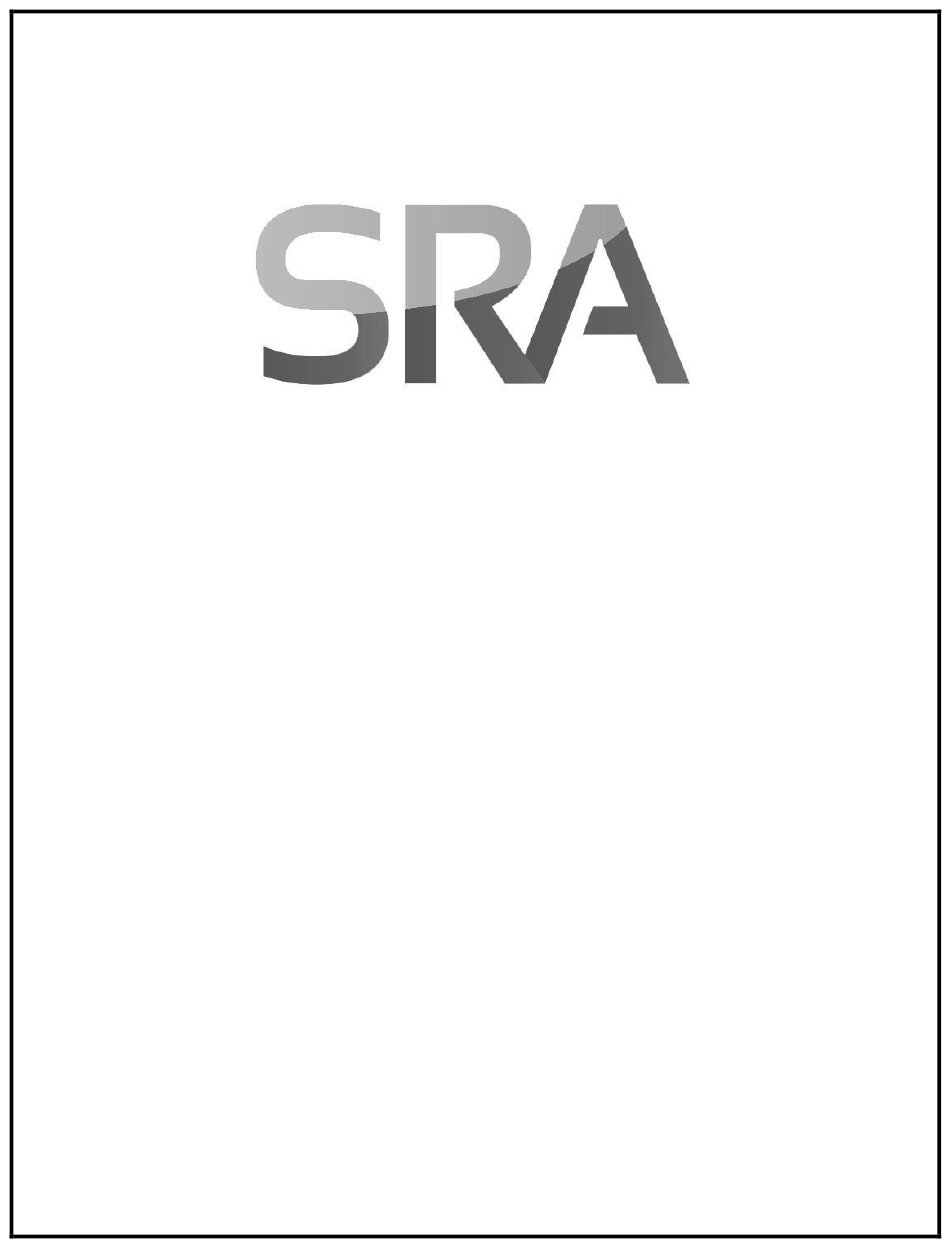

350 H2O Welder
Operating Manual
Congratulations on the purchase of your SRA-350 H20 Welder. With this welding
unit you can now experience the many advantages of the H20 welding process.
The SRA-350 has been designed to use low voltage electricity to dissociate water
into hydrogen and oxygen. It is safe, simple and reliable and ideal for quick, clean
soldering and brazing.
1
Advertisement
Table of Contents
Related Manuals for SRA 350
Summary of Contents for SRA 350
- Page 1 H20 welding process. The SRA-350 has been designed to use low voltage electricity to dissociate water into hydrogen and oxygen. It is safe, simple and reliable and ideal for quick, clean...
-
Page 2: Table Of Contents
Features …………………………………………………………………………………………….……..……..3 Package Contents………………………………………………………………………………….………….3 Specifications……………………………………………………………………………………………………3 Safety Precautions………………………………………………………………………………….………..4 Welder Diagram………….……………………………………………………………………….…………..5 Part List for Welder Diagram………………………………………………………………………….…6 Using the H20 Welder…………..……………………………………………………………….…………7 Routine Maintenance..…………..………………………………………………………………………..9 Tip Size Chart and Gas Reading……………..………………………………………………………..11 Warranty Information………..………………………………………………………………………..…12 24 Walpole Park South, STE #10 Walpole, MA 02081 508-688-6044 1-800-545-4570 www.sra-shops.com... -
Page 3: Features
The torch tip is a hydro dermic needle. Electronic indicator lights for distilled water level. Package Contents: 2 torches Electrolyte Tips Torch Stand Specifications: Model Size Weight Max Power Watts Current SRA-350 15x11x14’’H 55 lbs. 110 or 220V... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS CAUTION BEFORE SETTING UP, OPERATING OR MAINTANING THIS MACHINE, PLEASE READ THE ENTIRE CONTENTS OF THE MANUAL CAREFULLY. MAKE SURE YOU UNDERSTAND THE SAFETY RULES AND HAZARDS FOUND BELOW AND THROUGHOUT THE OPERATING MANUAL Please Refer to the Following Safety Standards: NEVER unscrew the water tank or booster tank unless the machine is turned off NEVER... -
Page 5: Welder Diagram
WELDER DIAGRAM... -
Page 6: Part List For Welder Diagram
PARTS LIST FOR WELDER DIAGRAM PART DESCRIPTION PART DESCRIPTION PART DESCRIPTION PART DESCRIPTION Three position Torch hose fitting Power cable Tank cover switch Minimum level Safety cap Fitting 1/8’’ Cover sensor Maximum level Filling neck Flame arrester cap Rubber ring sensor Power control Shut off valve... -
Page 7: Using The H20 Welder
USING THE H20 WELDER Start Up: 1. Plug the electric cord to the appropriate 110V 220V electrical outlet. 2. Locate the chrome cap on top of the cabinet. This is the water tank inlet spout. Turn the toggle switch to the REFILL position. The greenish yellow minimum light will go on. - Page 8 NOTE: Boric acid powder can be added to the methyl alcohol solution in a ratio of .5 to .7 ounces per quart. This should be premixed. Boric acid with methyl alcohol provides a reducing characteristic to the flame. This will keep your parts cleaner when brazing (hard soldering).
-
Page 9: Routine Maintenance
Routine Maintenance It is essential to perform daily maintenance on your welder. Each day before starting your SRA H20 Welder, perform the following steps and cautions: 1. Remove the booster tank and check the level of methyl alcohol solution. If required, add solution till it reaches the maximum level mark. - Page 10 c. If minimum greenish yellow light comes on, DO NOT operate the machine. Fill with distilled water until the red light comes NOTE: When operating the machine the red light will go off and no lights will be on. This is normal operating level. When greenish yellow light goes on STOP IMMEDIATELY and add distilled water.
-
Page 11: Tip Size Chart And Gas Reading
TIP SIZE AND GAS READING SELECTION CHART FOR TIP SIZE & GAS READING NUMBER OF GAS METER GAUGE I.D. COLOR TORCHES RANGE .010 20-30 .010 25-40 .013 ORANGE 25-35 .013 ORANGE 35-50 .016 BLUE 30-40 .016 BLUE 45-60 .020 LT PURPLE 35-45 .020 LT PURPLE... -
Page 12: Warranty Information
Your H20 welder is warranted to the original purchaser for 1 year from the date of purchase; to be free from defects in materials and workmanship (but not against damages caused by misuse, negligence, accident, and faulty installation or by using materials incompatible with the equipment.) SRA Soldering Products www.sra-solder.com...
