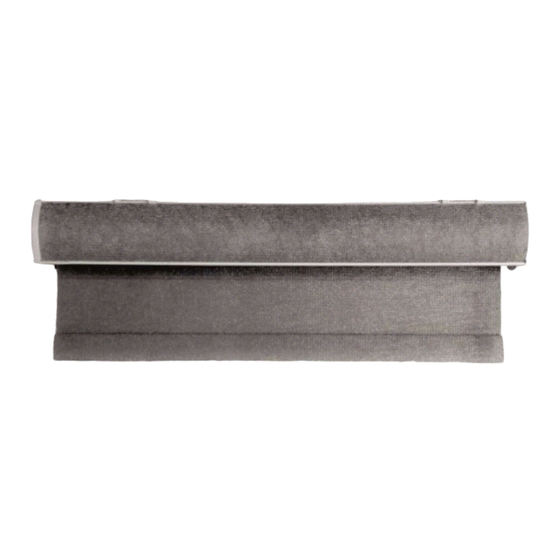

PREMIER DECORATIVE ROLLER SHADES
HORIZONTAL FLAT SHEER SHADING
1. Position the blind:
Inside the recess: Decide the position of the blind so that it will be clear of any latches or fixtures.
Outside recess: Decide the position so that the overlaps on the both side of the recess are equal.
2. Fixing the brackets:
The brackets are designed for face or top fixing to
frame, wall or ceiling.
a. Having decided the positioning of the blind, preset it to
the desired position making sure it is centred and level.
b. Mark the location of each bracket with a pencil, make sure
they are on the same line.
c. Place each bracket on its location markings and mark
through the desired screw hole positions.
d. Use the screws provided to fix the brackets to wall.
3. Installing the blind.
Hold the cassette parallel with brackets, make sure the back
panel of cassette sits on the back hooks of the brackets
where it was attached to the wall. Push it forward until the
locking mechanism clicks.
Attention: After the locking mechanism clicks, if you see the
front hooks of the brackets stay firm into the top edge of
cassette, that is correct.
Warning
Please don't let the front hooks of cassette to lock into
the front top edge of the cassette first, as this will make
it impossible to install.
4. Operating the blind.
The beaded chain side control at the right-hand side or left-
hand side of blind is used to raise or lower the blind to the
desired height.
Advertisement
Table of Contents
Summary of Contents for BOFU BRB23
- Page 1 PREMIER DECORATIVE ROLLER SHADES HORIZONTAL FLAT SHEER SHADING 1. Position the blind: Inside the recess: Decide the position of the blind so that it will be clear of any latches or fixtures. Outside recess: Decide the position so that the overlaps on the both side of the recess are equal. 2.
- Page 2 5. Installing the chain tensioner. Shades with clutch controls come with a continuous chain loop, which should always be screwed to the wall with the included chain tensioner. The chain tensioner should be installed to a flat surface, so the bead chain is taut but not stretched. Be sure not to twist or cross the chain.
- Page 3 BRB23/BRB23D Rechargeable Battery Motor Instruction 042.BRB237D01 Technical data Motor Load Torque: 0.7Nm/34rpm, 1.1Nm/28rpm Battery Specification: Li-ion Batter, 2000mAH, 7.4V. Notify: ●Motor antenna should be as straight as possible in the position far away from metal objects. Directly contact metal objects is prohibited; otherwise, the receivindistance will be influenced seriously.
- Page 4 Item Operation Result Illustration Operation Press UP button on Motor runs up transmitter Press STOP button When Motor stops motor running close to the Setup upper end-point of upper limit limit Press either UP or DOWN Motor runs step by step to button adjust lower limit accurately Motor jogs, the setting has...
