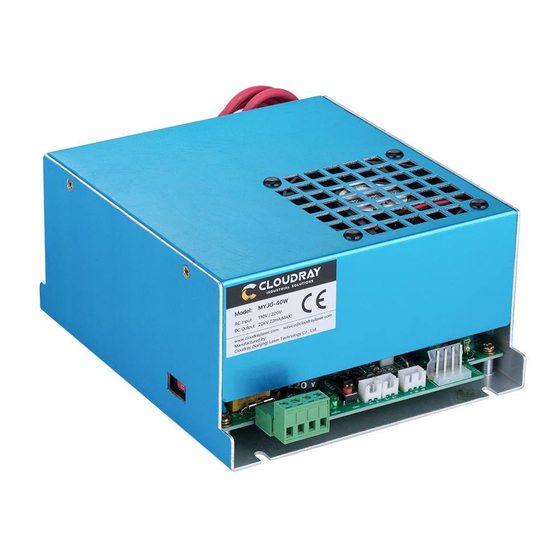

First of all, thanks a lot for you to choose our laser power supply products. To make good
use of our product, please read this manual carefully in advance. Model of this product is
MYJG-40 NW
40W Power Supply for CO
I. Main Features
1.
Good Compatibility: It can be applicable to 40W laser tubes manufactured by
different factories.
2.
High Performance: Fast response, Good engraving effect, it can prolong the service
life of laser tube significantly.
Open Circuit Protection Function: When the earth connection is under good
3.
situation, power can be short time work in open state. It can avoid the laser tube burst
damage caused by laser power supply, prolong the laser tube's service life.
4.
Test Mode: One button to test the output laser manually(50% Max Power).
5.
Application: Sculpture and cut acrylic, fabric, double color sheet, rubber etc.
II. Specification
Input
Maximum Output Voltage
Output
Maximum Output Current
Efficiency
Mean Time Between
Failure (MTBF)
Response Speed
≤1ms（From the switch signal is given to the output current up to 90% of the
setting current）
www.cloudraylaser.com

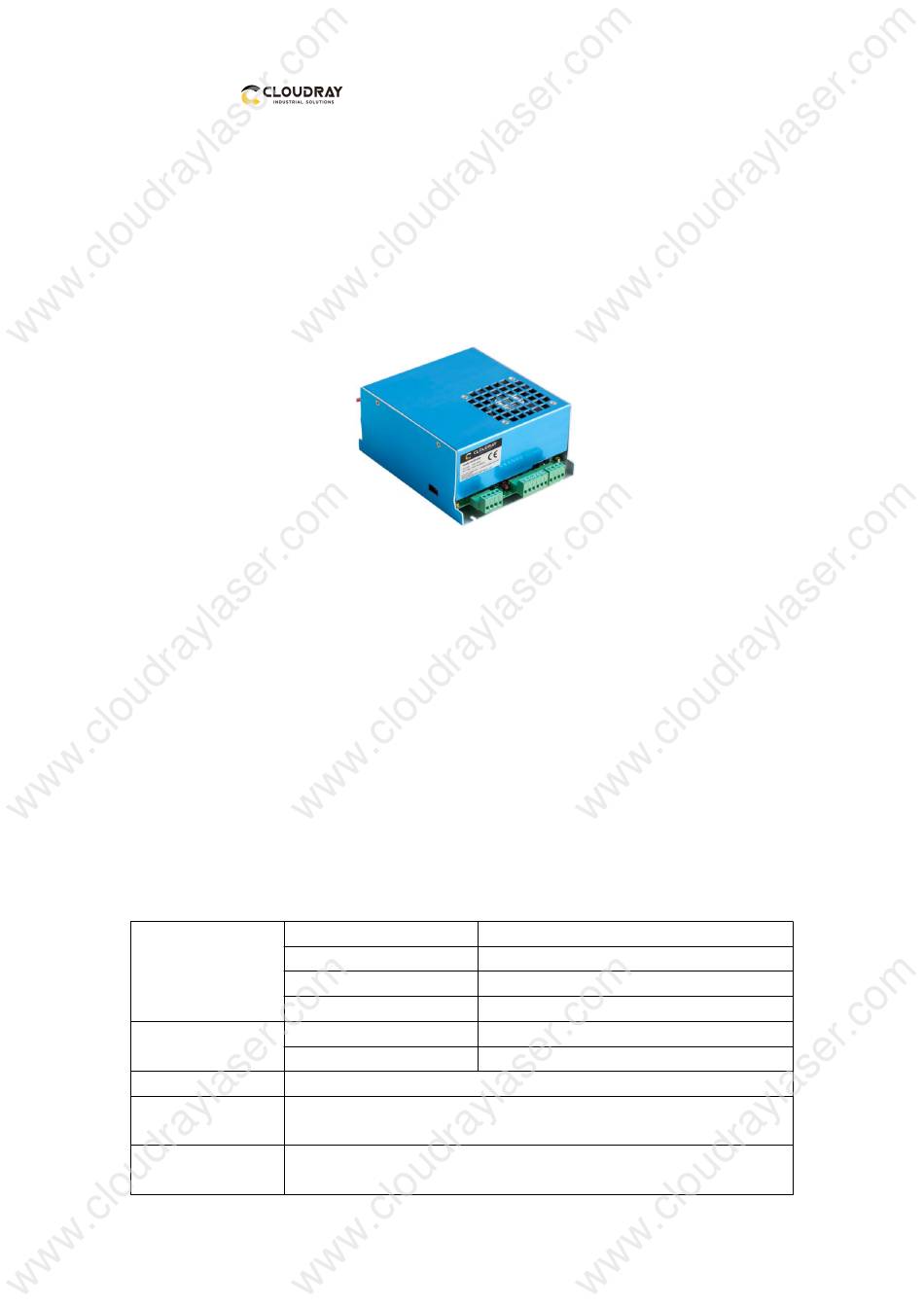

Power Supply MYJG-40 User Manual
Model: MYJG-40 NW
Input Voltage
AC Frequency
Max Input Power
Max Input Current
≥90%(Full Load)
Laser Tubes
2
AC220V or AC110V (Switch Control)
47-440HZ
250W
5A
DC 23KV
DC 20mA
≥10000H
1
Advertisement
Table of Contents
Related Manuals for Cloudray MYJG-40
Summary of Contents for Cloudray MYJG-40
- Page 1 Power Supply MYJG-40 User Manual First of all, thanks a lot for you to choose our laser power supply products. To make good use of our product, please read this manual carefully in advance. Model of this product is MYJG-40 NW...
- Page 2 The control signal shall be reliably connected to control terminal of the power supply MYJG-40 NW, after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal is correct or not(include check the voltage specification and logic), if use PWM control as power control, make sure f≥20KHz,...
- Page 3 Power Supply MYJG-40 User Manual IV. The Instruction of Power Supply and Laser Wiring Diagram and Terminal Terminal Definition as follows： www.cloudraylaser.com...
- Page 4 Power Supply MYJG-40 User Manual Caution : Figure 1 Figure 2 1) WP input terminal can use water switch or fan switch's test terminal, please pay attention that WP is through optocoupler connected with ground (G) as (figure2), not as (figure 1).
- Page 5 Power Supply MYJG-40 User Manual 2. Recommended connection: Low-level light control Output interface water detection 0~5V analog signal or 0~5V 5V amplitude PWM Manual laser operating signal (f ≥20KHz) Low-level light control laser power control Computer System Control Board VII. Check the power supply worked properly or not manually Make sure the power supply and laser tube wiring correct.
- Page 6 Power Supply MYJG-40 User Manual Supply Does No laser emission when Contact with us for 3. Fuse is burned. manual test. repair. not work Check if wire is connected 1. Control wire correctly according to Rewiring correctly connected wrong Operation Instruction 2.
- Page 7 Power Supply MYJG-40 User Manual 5. Internal Transformer Output current is always at Send back factory for broken. 5mA around 6. One circuit does maintenance not work. 7. Others Laser head is not stable during working. Laser Connect earth wire of...
