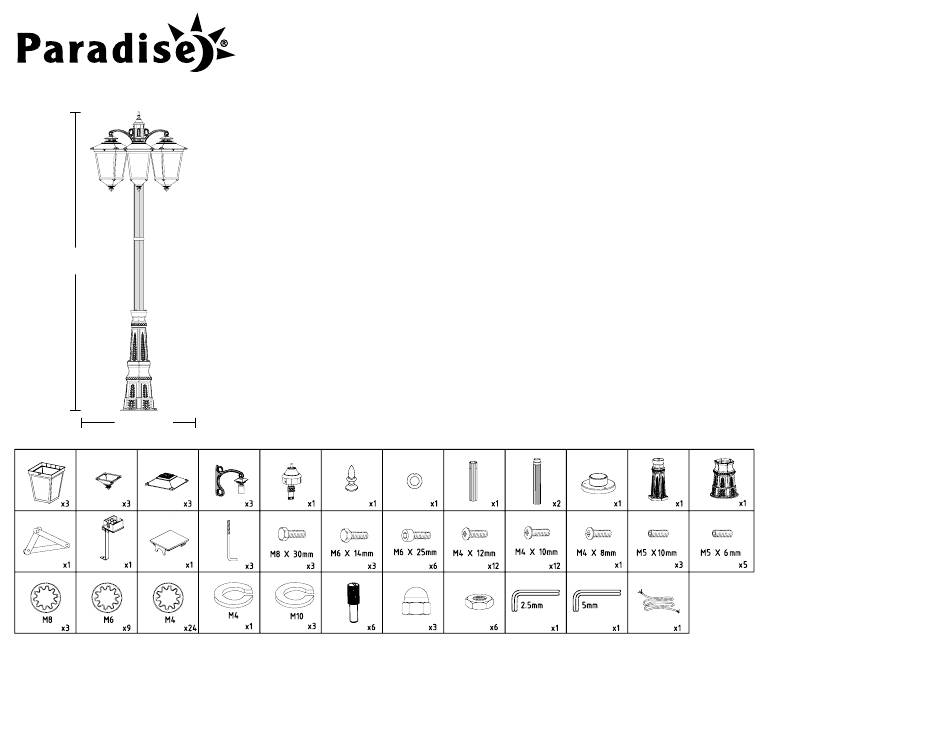

246 cm
96.85 in / po
79.4 cm
31.26 in / po
A
B
C
M
N
O
Y
Z
AA
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
IMPORTANT, CONSERVER POUR RÉFÉRENCE : LIRE ATTENTIVEMENT
IMPORTANTE, CONSERVE PARA REFERENCIA FUTURA: LEA CUIDADOSAMENTE
3 HEAD DELUXE STREETLIGHT
RÉVERBÈRE DE LUXE À TROIS TÊTES
FAROL DE CARRETERA DE 3 LÁMPARAS
INSTALLATION, CARE AND USE INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION, DE SOIN ET D'UTILISATION
INSTRUCCIONES DE INSTALACIÓN, CUIDADO Y UTILIZACIÓN
Questions, problems, missing parts?
For assistance with assembly or installation, parts and customer service, call:
1-888-867-6095 (English), Monday to Friday 9a.m. to 5p.m. - PST, North America.
Questions, problèmes, pièces manquantes?
Pour toute assistance avec le montage, l'installation, les pièces et le service à la clientèle,
composez le : 1-888-926-21 1 1 (français), du lundi au vendredi de 9 heures à 17 heures - EST,
Amérique du Nord.
Preguntas, problemas, piezas faltantes?
Para ayuda con la instalación o montaje, piezas y servicio al cliente, llame al:
1-888-867-6095 (Inglés), del lunes al viernes de 9 a 17 - PST, América del norte.
D
E
F
P
Q
R
AB
AC
AD
G
H
I
S
T
U
AE
AF
AG
L
J
K
V
W
X
AH
AI
ITM. / ART. 280957
Imported by:
Costco Wholesale U.K. Ltd / Costco
Online UK Ltd
Hartspring Lane
Watford, Herts
WD25 8JS
United Kingdom
01923 2131 13
www.costco.co.uk
Distributed by:
Costco Wholesale Iceland ehf.
Kauptún 3-7 , 210 Gardabaer
Iceland
www.costco.is
Distribué par :
Costco France
1, avenue de Bréhat
91 140 Villebon-sur-Yvette (France)
www.costco.fr
5006-280957-TRI_011619
Advertisement
Related Manuals for Paradise Datacom 280957
Summary of Contents for Paradise Datacom 280957
- Page 1 ITM. / ART. 280957 3 HEAD DELUXE STREETLIGHT RÉVERBÈRE DE LUXE À TROIS TÊTES FAROL DE CARRETERA DE 3 LÁMPARAS INSTALLATION, CARE AND USE INSTRUCTIONS INSTRUCTIONS D’INSTALLATION, DE SOIN ET D’UTILISATION INSTRUCCIONES DE INSTALACIÓN, CUIDADO Y UTILIZACIÓN Questions, problems, missing parts?
- Page 2 1. Before you begin • Decide on an appropriate location for your streetlight (see site instructions). • An assistant will be required during the installation of this product. • The installation of the underground power cable and conduit must meet national and local standards. The illustrations showing the conduit and cable installed are only to use as a guide. The type and depth of the conduit and cable may vary from area to area.
- Page 3 5. Wiring and assembly Fig. 1 5.1 Pre-assemble the covers (C) to the arms (D) using the four (4) M4x12 mm (T) screws and teeth washers (Z) (Fig. 3). FINIAL (F) 5.2 Pre-assemble the arms (D) to the spreader section (H) by passing the wire exiting each arm through the holes in the spreader. Join all WASHER (G) three (3) arm wires and connect to the main streetlight cable using the terminal connectors.
- Page 4 6. Test Installation Restore the main power supply and turn the light switch to the ON position. 7. Troubleshooting If the bulbs do not light: 7 .1 Check that the main power supply (main fuse/breaker box) is turned on. 7 .2 Check that the light switch is turned on. 7 .3 Ensure that the bulbs are not defective.
