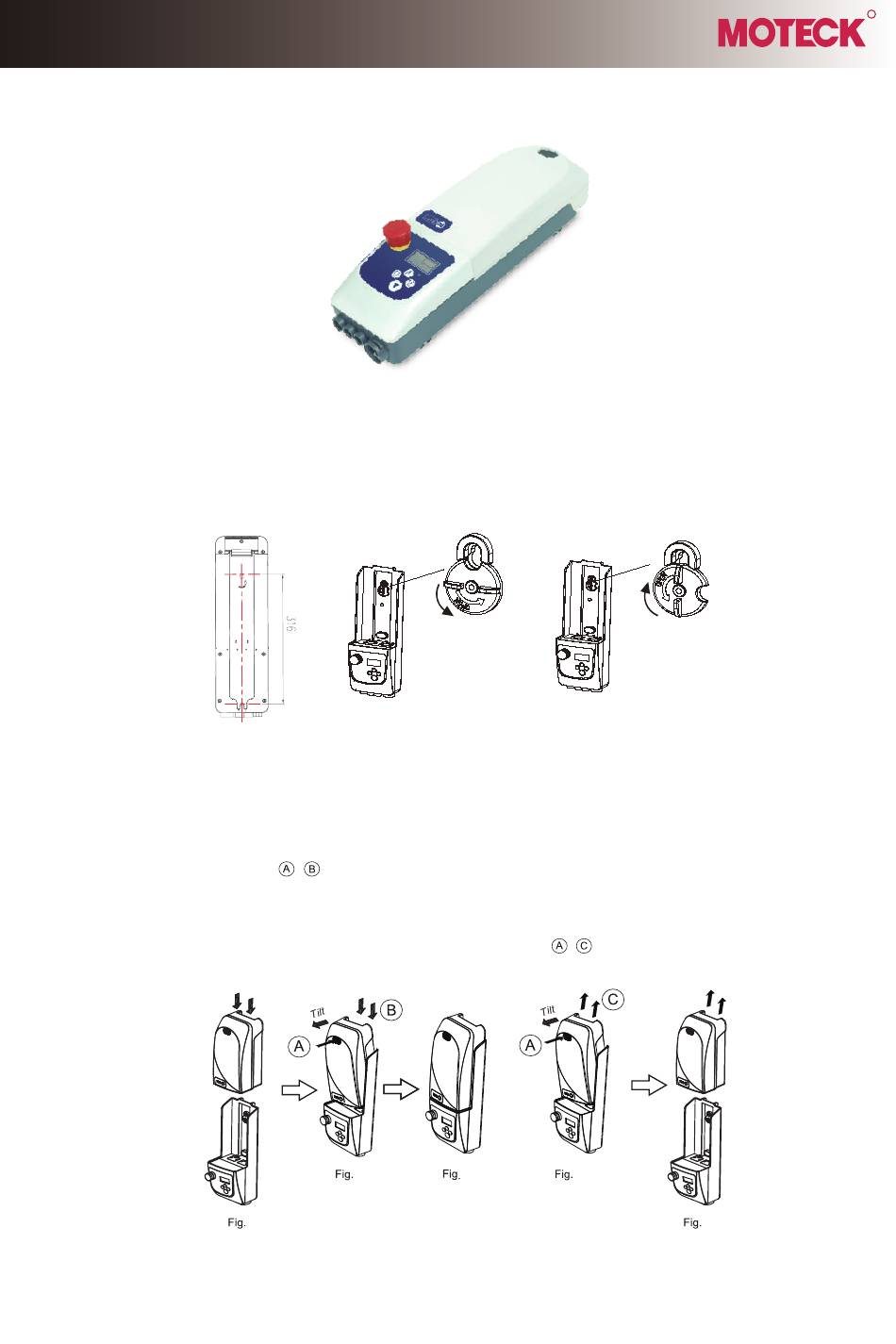

User Guide
Control Box

A. Installation

1.
Control Box
Step 1. Put two mounting bolts (M5 with 8mm head) onto the frame according to the drawing.
Step 2. Turn the locker to "Unlock Position" (CCW) , then mount Control Box onto the bolts of the frame.
Step 3. Turn the locker clockwise to "Locked Position" to fix the Control Box.
2.
Battery Pack
2.1 Insert:
2.1.1 Hold the battery pack downward (Fig. 1)
2.1.2 Tilt the pack a little bit to get a smooth installation and keep pressing the release button
2.1.3 Push the pack downward till you hear "click"(Fig. 3), make sure the pack will not be pulled
2.2 Remove:
2.2.1 Press release button and pull the pack out upward (Fig. 4
2.2.2 Tilt the pack a little bit at the beginning of pulling (Fig. 5), then pull out the battery pack.
Step1 :
Step2 :
(Fig. 2
/
).
out by hand without pressing release button.
2
1
Model: CBP2
Step3 :
Unlocked Position
/
).
click!
3
4
MOTORIZE OUR WORLD
Locked Position
5
R
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBP2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Motech CBP2

  • Page 1 User Guide MOTORIZE OUR WORLD Control Box Model: CBP2 A. Installation Control Box Step 1. Put two mounting bolts (M5 with 8mm head) onto the frame according to the drawing. Step 2. Turn the locker to “Unlock Position” (CCW) , then mount Control Box onto the bolts of the frame.
  • Page 2 Hook Step2 : Step1 : Click! Click! B. Interface Battery pack release button Hook Battery indicator (optional) LCM display Emergency button Spread actuator extends Lifting actuator extends Spread actuator retracts Lifting actuator retracts Hook Connection There are 4 connection ports as indication on following drawing. Charging plug Handset Spread actuator(M2) (Optional)
  • Page 3 2.1 CHP1 is an optional stand alone charger for BTP1 battery pack. User can charge additional battery pack (option) while CBP2 is on duty for use. Be noted that CHP1 equips EI type transformer and has to follow the AC voltage of the country.
  • Page 4 The lifting actuator extends automatically for 2.5 seconds iii. The level bar disappeared means self-learning is on going, till the level bar appears again means the self-learning is done and CBP2 got a new current limit as shown below. done detecting The available range is 5~9A, step 1A.
