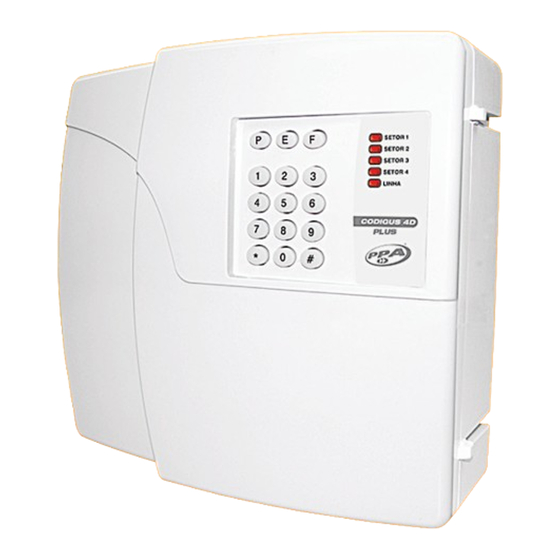

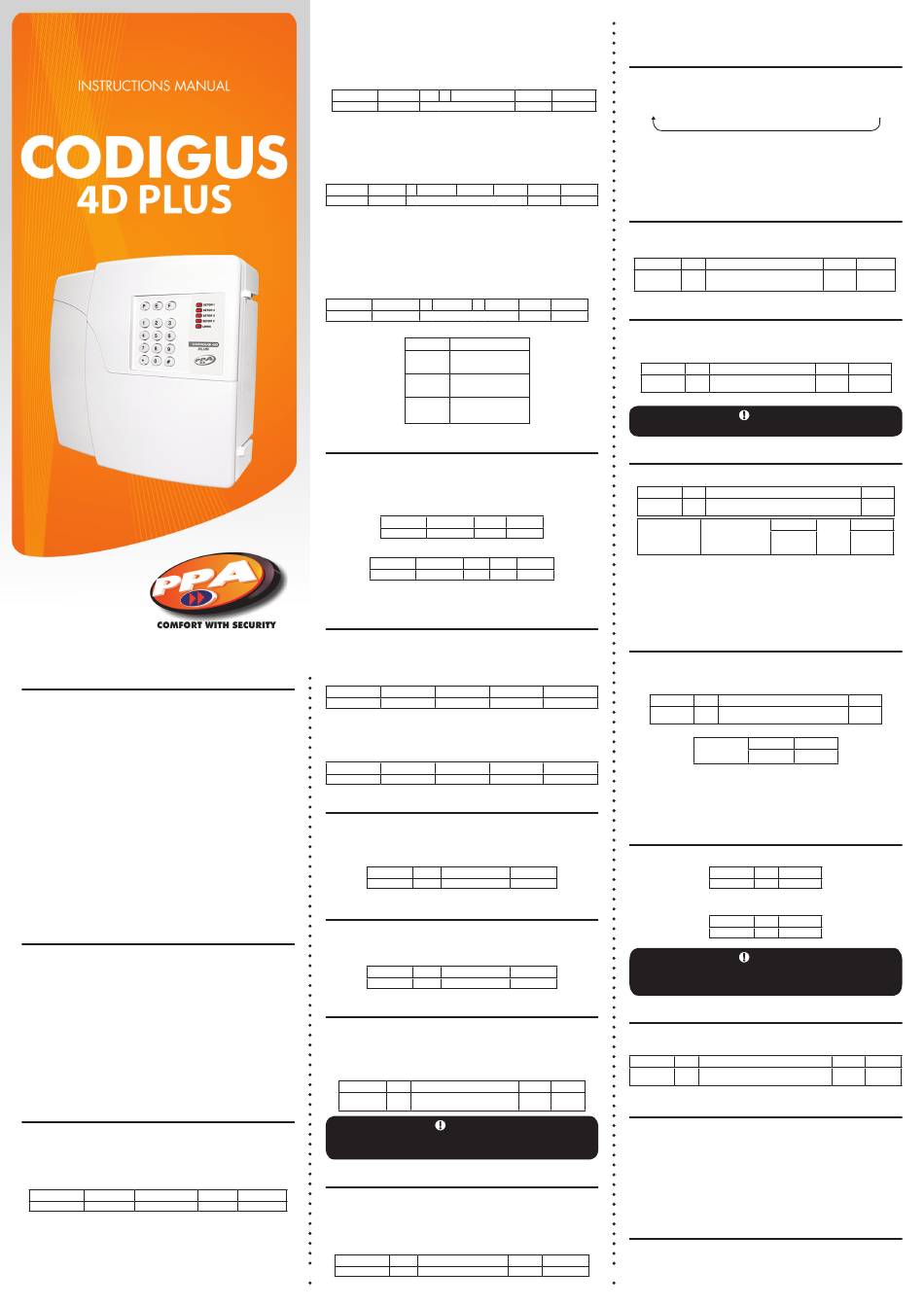

PPA CODIGUS 4D PLUS Instruction Manual

P04433 - Rev. 1
MAIN CHARACTERISTICS
• 4 sectors with and / or wireless that can be armed and disarmed,
independently, by remote control;
• Arm and disarm via remote control, keypad, telephone call or
auxiliary input (optional device);
• Automatic arm in the absence of movement, with programmable time;
• Sector shutdown after 4 violations (programmable);
• Beeps for arming, disarming and arming failure (programmable);
• Programmable input, output and siren time;
• Pulse dialing (decadic) or tone (DTMF);
• Audible or silent panic by remote control (pressed for 3 seconds);
• Dialing up to 6 phone numbers with 22 digits each;
• Supports up to 80 wireless devices, including controls and sensors;
• Low battery warning for wireless sensors (only for sensor models
that have this feature);
• Timed sectors (programmable);
• Configurable A / D (auxiliary) input for pulse or hold;
• Telephone call commands: arming, disarming, status and commands
for LED / PGM output;
• 12 Volt output for configurable external LED / PGM;
• Automatic reset (programmable);
• Smart sectors (programmable).

ACESSING THE PROGRAMMING MODE

In this mode all the alarm parameters are configured. To access, make
sure the board is disarmed and type:
# + installer password
The factory default installer password is 4321.
After each command sequence, typed in the programming
(passwords, indexes, values, confirmation, etc.), the board will emit 3
beeps, indicating if the command or the programming was accepted.
If the command is wrong, the board will sound 1 long beep (error).
While in this mode, the Line LED will remain blinking.
To exit the programming mode, press the * key until the Line LED
stops blinking.
If no key is pressed for up to 20 seconds, the board will automatically
terminate the programming mode.

REGISTERING PHONES

It allows the registration of up to 6 telephone numbers with up to 22
digits each. The corresponding indices are: 01 to 06.

LOCAL CALLS:

To register local phones, type:
# 4321 01 to 06 Up 22 digits
prog. access Índex Telephone Nº
When entering a telefone number with all 22 digits, it is not
necesserry to press confirmation key #, since the last number (22º)
will correspond to the end of the index.

CALLS BY PABX:

In telephone switchboards (PABX), it is necessary to input a command
to access the external line and then insert a pause in the dial.
In the example below, a telephone number will be registered via
extension, adding 0 (zero) and pause of 2 seconds before the number.
Type:
# 4321
Prog Access.
The E key pauses for 2 seconds. If it is necessary to generate a pause
of 6 seconds, for example, press the E key por 3 times, in the position
indicated previously and so on.

LONG DISTANCE CALLS:

Register a phone from another city or region. Type:
# 4321 01 to 06 0 Oper. Nº DDD Nº Tel. Nº
Prog Access. Index
SPECIAL CALLS:
Some phone operators offer services packages that require the code
to make cellular or long distance calls. In these case, is necessary
to program special digits before the desire phone number such as,
* (asterisl) and # (ring). There digits are entered using the P and F,
show in the table.
Exemple:
# 4321 01 to 06
Prog Access.
There are 2 ways to delete a registered telephone:
1.ª) Do not enter a number when accessing the desired index and
press # to confirm. THE CORRESPONDING ARE 01 TO 06.
Exemple:
2.ª) Press the key*in the telephone number position.
# 4321
Prog Access.
PS: The phones must be deleted one at a time by accessing index
by index.
INSTALLER PASSWORD:
It is required to enter the programming mode. The factory setting is
4321. Change to another one of your choice.
For change, type:
# 4321
Prog Access.
USER PASSWORD:
Used to arm, disarm and annul sectors. The factory default is 1234.
Change to another one of your choice.
To change, enter:
# 4321
Prog Access.
Allows the user to enter the protected location to disarm the board
through the keyboard, without triggering the alarm.
The factory default is 00 seconds (input time disabled). To set the
input time, enter:
# 4321
Prog Access.
Allows the user to leave the protected location after arming the
board, without triggering the alarm. The factory default is 00 seconds
(exit time disabled). To set the exit time, type:
# 4321
Prog Access.
After 4 consecutive violations of a single sector, it is automatically
abrogated, avoiding triggering the alarm, ensuring battery life and
avoiding any annoyance with neighbors. To re-integrate the bypassed
sectors into the system, disassemble and reset the panel. To enable /
disable this function, enter:
# 4321
Prog Access.
After it is automatically cancel, the sector will be disabled and will
not detect violations until the system is disarmed and reset.
# #
This function enables / disables and sets the time for self-timer in the
Confirm Out Prog
absence of on-site movement. The board will automatically arm all
sectors. The factory default setting is 00 minutes (automatic arming
disabled). To set the time autoarm, type:
# 4321
Prog Access.
01 to 06 0 E Telephone Nº #
Índex Up 22 digits Confirm
#
Up 22 dígits Confirm
P Oper. Nº E Tel. Nº #
Index Up 22 digits Confirm Out prog.
KEY FUNCTION
Insert pause of
E
2 seconds
Insert the digit *
P
in programming
Insert the digit #
F
In programming

DELETING TELEPHONES

# 4321 01 to 06 # #
Prog Access. Índex Apaga Out prog.
01 to 06 * # #
Index Tel. Nº Apaga Out prog.

CHANGE PASSWORD

07 4 digits 3 beeps
Index New password Confirmation Out prog.
08 4 digits 3 beeps
Index New password Confirmation Out prog.
INPUT TIME
09 2 digits #
Index Time (Up 00 to 99 s) Out prog.
OUTPUT TIME
10 2 digits #
Index Time (Up 00 to 99 s) Out prog.
SECTOR SHUTDOWN
11 1 #
Index LED Sector 1 on = Enable Confirm Out prog.
LED Sector 1 off = Disable
WARNING

AUTOMATIC ARM

12 2 digits #
Index Time (Up 00 to 99 minutes) Confirm Out prog.

TELEPHONE DIALING

Calls registered phones in case of alarm triggering.
See the call cycle:
#
Out prog. Tel. Calls 1 ... Tel. 2 ... Tel. 3 ... Tel. 4 ... Tel. 5 ... Tel. 6 ...
The panel will sound a siren sound for 1 minute via telephone,
alerting the user about the violation.
To interrupt the cycle, disarm the board through the remote control
or keyboard. For security reasons, remote key locking does not
#
interrupt dialing.
Out prog.
BEEPS ON THE ARM AND DISARM
Indicates, through the siren, the arming and disarming of the board.
To enable / disable this function, type:
# 4321 13
Prog Access. Index LED Sector 1 on = Enable beeps
LED Setor 1 off = Disable beeps
#
USING VOICE MODULE
This function enables / disables the use of the voice module. The
voice module plays voice message on the phone in the event of an
alarm being triggered. To enable / disable this function, enter:
# 4321 14
Prog Access. Index LED Sector 1 on = Enable
LED Sector 1 off = Disable
This function must only be enabled if a voice is installed.

REGISTERING CONTROLS

Follow this sequence to register controls:
# 4321 15 Select 1 or more sectors (1 to 4)
Prog Access. Index LED Sector on = Sector enabled for command
LED Sector off = Sector disabled for command
LEDS Keep the control
correspondentes button pressed
aos setores piscam
If the board emits 1 long beep (error), it means that the procedure
did not run correctly or the memory is already full. This procedure
must be carried out in a maximum of 15 seconds. After this time, the
board will automatically terminate the process by sending an error
beep. If you are registering a button that was already recorded, the
sectors of this button will be updated to the currently selected ones.

REGISTERING WIRELESS SENSORS

Perform this operation near the board to prevent interference from
damaging the recording process. Follow the sequence:
#
# 4321 16
Prog Access. Index LED Sector on = Enable sector for sensor
The factory default is LED sector 1 on
LED of sector
corresponding
keep flashing
#
If the board issues 1 long beep (error), it means that the procedure did
not run correctly or the memory is already full. This procedure must be
carried out in a maximum of 15 seconds. After this time, the board will
automatically terminate the process, emitting an error beep.

DELETING WIRELESS SENSORS CONTROLS

To remove all registered records, type:
# 4321
Prog Access.
To delete all registered wireless sensors, type:
# 4321
Prog Access.
Be careful not to access indexes 17 and 18 accidentally, as you
access these indexes, wireless controls and sensors will be
automatically deleted.
DIALING IN PULSE / RING (DTMF)
To select the dialing mode, type:
# 4321 19
Prog Access. Index LED Sector 1 on = dial ring (DTMF)
LED Sector 1 off = pulse dial
#
DIALING TESTS
It allows to test the registered phones, without triggering the siren.
a) Check if the Line LED is off (out of programming mode).
b) Press the F key and the memory number to be checked (1 to 6).
Note that in this case, the number 0 (zero) is not entered.
c) The Line LED will be on while the board is dialing.
d) Verify if the registered telephone received the call and if the siren
sound was heard over the telephone. Otherwise, the registration is
incorrect and must be redone.
FAILURE BEEPS WHEN ARMING
Emits 3 beeps on the siren when trying to arm the board with some
#
open sector. In this case, the board will not be armed. To enable /
disable this function, enter:
1 # #
Confirm Out prog.
1 # #
Confirm Out prog.
WARNING
#
Confirm
3 beeps #
Release
the
Confirmation Out prog.
control
Button
Select 1 sector (1 to 4) #
Confirm
3 beeps #
Confirmation Out prog.
17 #
Index Out prog.
18 #
Index Out prog.
WARNING
1 # #
Confirm Out prog.
