KAS -310-DK User Manual

KAS-310-DK Keypad
User Guide
KAS-302 E Keypad Programming Instructions

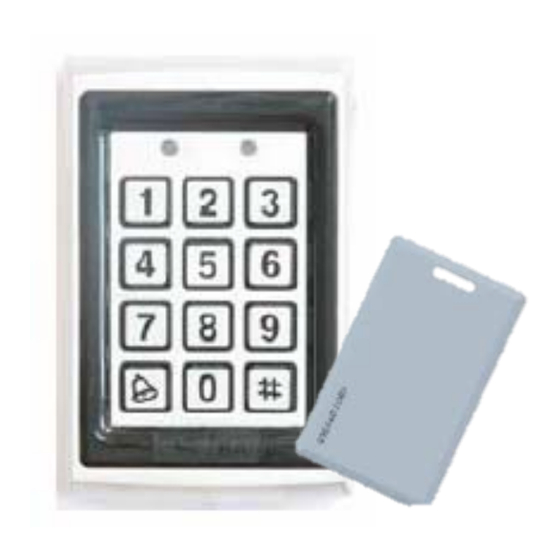

The KAS-302 E Keypad vandal resistant proximity card and keypad access
control unit suitable for external applications. The unit accepts up to 999
users and provides entry via the use of proximity cards and/or pin codes.
Equipment provided
The following is provided as part of an Electric Strike Bundle Kit:
Additional Equipment Required
Electric lock Strike Mechanism F ail Safe (power to lock) or Fail Secure
(power to open)
Power Supply with Backup Battery 12VDC (From a Regulated Power
Supply)
Request to Exit (REX) Button N ormally Open Type-Switch is closed when
pressed.
Technical Specification
Electrical Characteristics
Operating Voltage
Input current:
Not including attached device
Outputs:
Lock Strike Relay ›
Auxiliary Relay ›
Lock Strike Control Output
Auxiliary Control Output
Built-in Proximity Reader
Read Range
Reader
Compatible Cards
Environmental Characteristics ›
Operating Temperature
Mechanical Characteristics
Dimensions:
Weight:
12VDC From a Regulated Power Supply
Standby: 60mA
Max: 130mA
From C, 5A
From C, 5A
Collectors open output (25mA)
Collector Open Output (25mA)
65mm
ASK at 125kHz ›
ALL 26-Bit EM Cards
0 to 5%(Non Condensing)
Suitable for outdoor use
120L*76W*27Hmm
610g
