Summary of Contents for CAME BPT MTMA/08

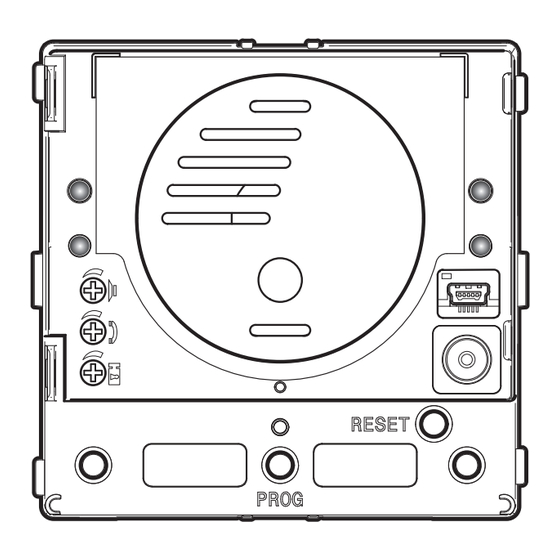

- Page 1 Communication unit for Xip systems FA01403-EN MTMA/08 - MTMV/08 EN English PROGRAMMING MANUAL...
-
Page 2: General Precautions
General precautions IMPORTANT! Important safety instructions: READ CAREFULLY! • Installation, programming, commissioning and maintenance must only be carried out by expert qualifi ed tech- • nicians in full compliance with the regulations in force. Wear anti-static shoes and clothing if working on the electronic circuit board. •... -
Page 3: Entering Programming Mode
PROGRAMMING ENTRY PANELS WITH VA/08 Entering programming mode Press the PROG button on the power supply until the PROG LED lights up. The LEDs and the button LEDs fl ash to show >3’’ >3’’ the buttons are being programmed Programming buttons Press the fi... -
Page 4: Exiting Programming
Programming calls The green LED fl ashes. Lift the internal receiver handset (if present) and press the door lock release and AUX2 buttons On the entry panel, press the call button to be linked to the internal 1 1 . A beep confi rms receiver that the setting has been stored 2 2 . - Page 5 Adjusting the brightness and colour of the unit backlight 1 1 , During call programming you can control the brightness and colour of the unit backlight. Press the left call button to select white 2 2 , and the right call button to 3 3 .
- Page 6 Adjusting the brightness level of the light on the entry panel 1 1 the While programming calls brightness level of the entry panel can be adjusted from any receiver. Pressing the “self-connection ” button on the internal receiver 2 2 activates the video camera on the entry panel for which the brightness level is to be adjusted.
-
Page 7: Restore Factory Default
RESTORE FACTORY DEFAULT To restore the entry panel to the default settings (including the terminal functions ), remove the power supply, press and hold the two call buttons on the unit and power the device. After 5 seconds the entry panel restarts. If the entry panel does not restart, it has not been restored to default settings. - Page 8 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
