Summary of Contents for STUDIOSPARES iPA8

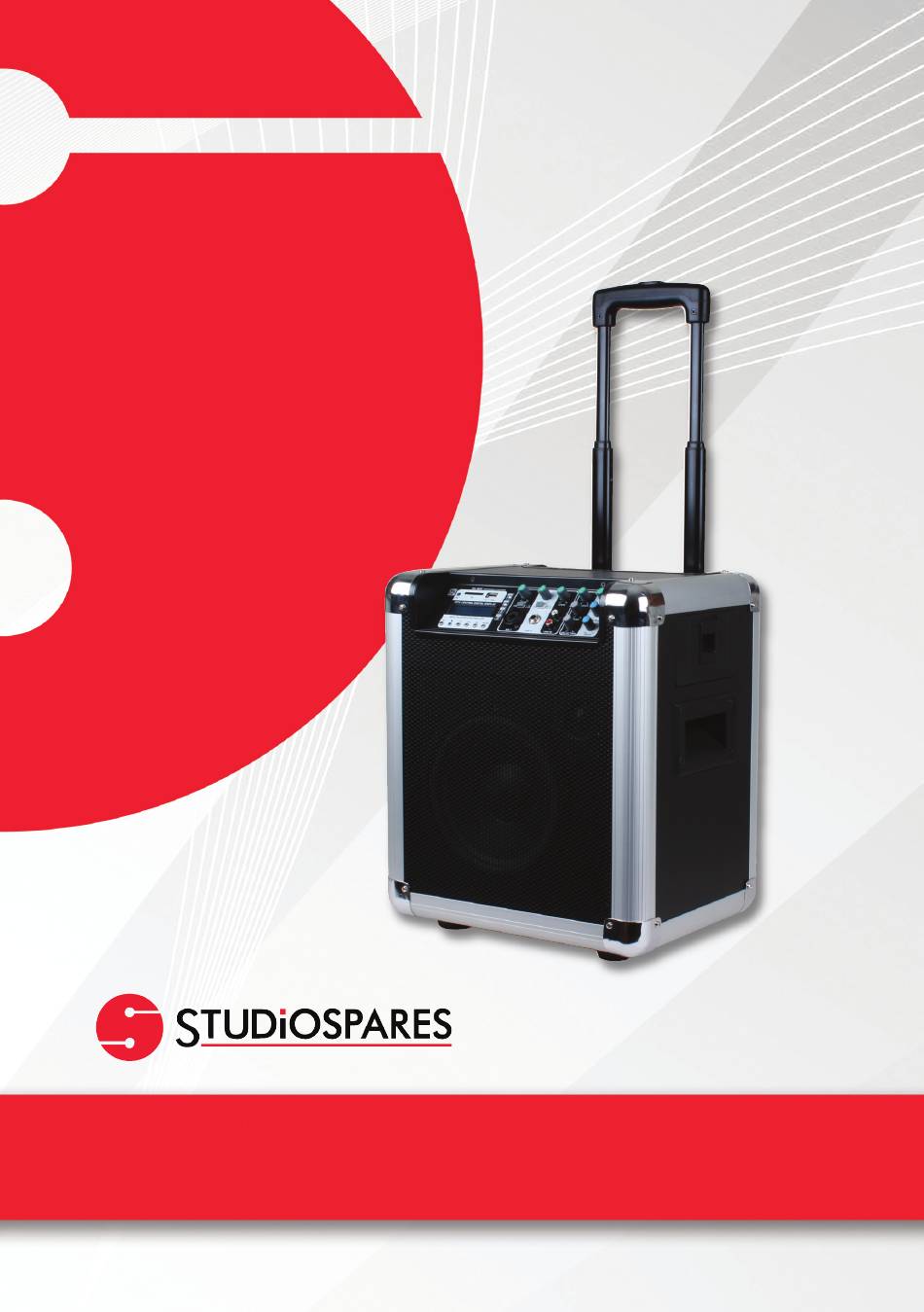

- Page 1 USER MANUAL Portable PA iPA8 System...
- Page 2 IMPORTANT SAFETY SYMBOLS This symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death. This symbol is used in the service documentation to indicate a specific component that can be replaced only by the component specified in the service documentation for safety reasons.
- Page 3 Ventilation Do not block ventilation areas. Failure to do so could result in the apparatus overheating which can lead to an electrical fire. Always install in accordance with the manufacturer's instructions. Object and Liquid Entry Ensure small objects do not fall into and (or) liquids do not enter the internal casing of the apparatus.
- Page 4 It can be powered either by the mains, or by the internal battery (which automatically charges from the mains), which can provide up to 4 hours battery life. The IPA8 includes a remote-controlled MP3 Player which can be triggered by inserting either an SD card or a USB drive to the unit.
- Page 5 1. IR (Infrared Receiving) MP3 player remote control receiving port. 2. SD The slot on the left is for SD card. 3. USB The right port is for USB device connection. 4. Keys Allows you to play and pause the player Stops player playback Press this key to repeat all songs in numerical order To move the player tothe previous song...
- Page 6 Adjust the control slowly for best results. 10. EQ Section The IPA8 features a 2-band equaliser which effects the entirety of the main output. Both bands provide 15dB of boost or cut. If the EQ knob is left in the centre, the EQ is inactive.
- Page 7 12. Power On This power switch turns the unit off and on. The LED display on the front panel will illuminate when the unit is on. 13. Battery Level LEDs These 5 LED lights monitor the battery level of the unit. When all 4 LEDs (numbered 3,2,1 and Low), are lit, the unit is fully charged.
- Page 8 964 North Circular Road, Staples Corner, London, NW2 7JR. www.studiospares.com...
