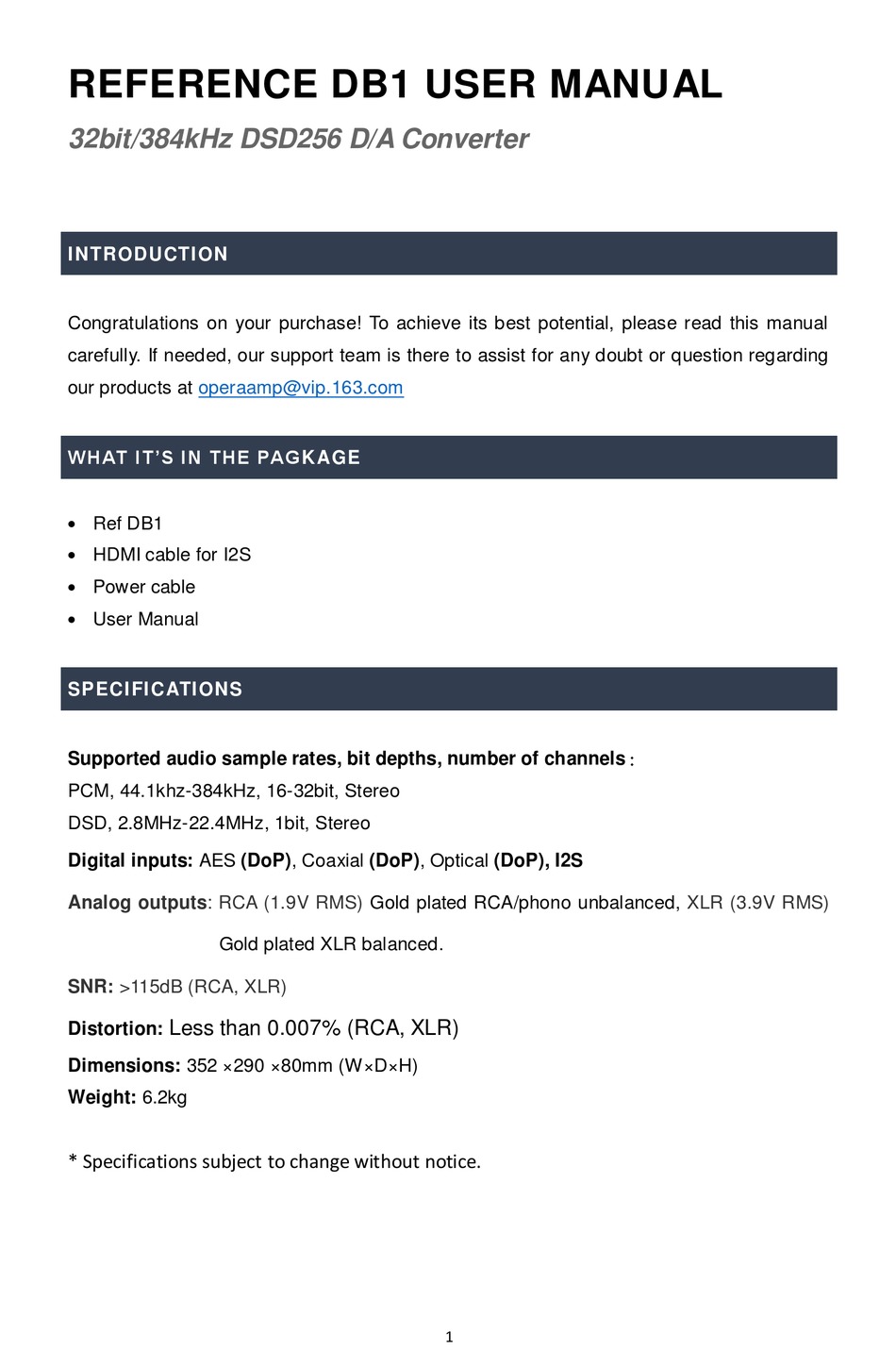

REFERENCE DB1 USER MANUAL
32bit/384kHz DSD256 D/A Converter
I NTRODUCTI ON
Congratulations on your purchase! To achieve its best potential, please read this manual
carefully. If needed, our support team is there to assist for any doubt or question regarding
our products at
operaamp@vip.163.com
WHAT I T'S I N THE PAGKAGE
Ref DB1
HDMI cable for I2S
Power cable
User Manual
SP ECI FI CATI ONS
Supported audio sample rates, bit depths, number of channels：
PCM, 44.1khz-384kHz, 16-32bit, Stereo
DSD, 2.8MHz-22.4MHz, 1bit, Stereo
Digital inputs: AES (DoP), Coaxial (DoP), Optical (DoP), I2S
Analog outputs: RCA (1.9V RMS)
Gold plated RCA/phono unbalanced,
XLR (3.9V RMS)
Gold plated XLR balanced.
SNR: >115dB (RCA, XLR)
Less than 0.007% (RCA, XLR)
Distortion:
Dimensions: 352 ×290 ×80mm (W×D×H)
Weight: 6.2kg
* Specifications subject to change without notice.
1
Advertisement
Table of Contents
Summary of Contents for Opera CONSONANCE REFERENCE DB1
- Page 1 REFERENCE DB1 USER MANUAL 32bit/384kHz DSD256 D/A Converter I NTRODUCTI ON Congratulations on your purchase! To achieve its best potential, please read this manual carefully. If needed, our support team is there to assist for any doubt or question regarding our products at operaamp@vip.163.com WHAT I T’S I N THE PAGKAGE...
- Page 2 FRONT OVERVI EW ○ Power Switch：The switch is on the left and the red LED is on, which is turn off and charging. The switch is on the right side, the green LED is on, and it is working on the battery supply. ○...
- Page 3 This warranty shall not apply to any Opera audio product which shall have been repaired or altered outside of our factory in any way so as to affect its stability, nor which has been subject to misuse, negligence or accident.
