Lightwave LW822 Quick Start Manual

Dimmer
In-line
Quick Start Guide
Model No. LW822

Before you start

You will need
Safe place in which to situate the Dimmer
Suitable electrical screwdrivers
Knowledge of how to safely turn off/on
mains electricity
Your Link or Link Plus and smartphone

Hints and tips

Get the best out of your install
www.lightwaverf.com

Installing yourself?

Please note that all Lightwave products can be legally
DIY installed in your own home; however, if in doubt,
always consult a qualified electrician.
It is important to install this product in accordance with
these instructions. Failure to do so may risk personal safety,
could create a fire hazard and will also void your warranty.
If conducting an insulation resistance test, any hard-wired
Lightwave devices must be disconnected from the mains,
or damage to the unit may occur.
Help video & further guidance
For additional guidance, and to watch a video that will help
guide you through the installation process, please visit the
support section on www.lightwaverf.com

LED Lamp compatibility

Lightwave in-line dimmers are designed to work with the
majority of dimmable LEDs, but, as every lamp can behave
differently, it is advisable to choose variants that have been
tested and proven to work well. If you plan to use LEDs, we
strongly recommend that you consult our compatibility chart
(see www.lightwaverf.com). The LEDs must be dimmable (not
all varieties are), and you should not exceed the maximum
loading recommendations provided on the compatibility
chart or damage could occur.
Loading
The In-line Dimmer can be used to dim lighting loads of up to
200W (incandescent). For LED loading limits please refer to
the maximum number of lamps recommended by type on our
compatibility charts (see www.lightwaverf.com).
Environmentally
friendly disposal
Old electrical appliances must
not be disposed of together with
residual waste, but have to be
disposed of separately. The disposal
at the communal collecting point
via private persons is for free.
The owner of old appliances is
responsible to bring the appliances
to these collecting points or to
similar collection points. With this
little personal effort, you contribute
to recycle valuable raw materials and
the treatment of toxic substances.
In the box

Specification

RF frequency:
434 MHz
Input rating:
230V~ 50Hz.
Output rating:
200W max

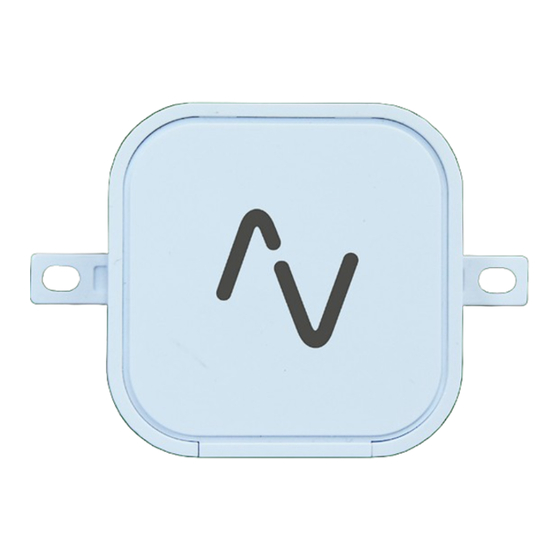

LW822 In-line Dimmer
Device class:
Class 0 (requires housing)
Standby Energy Use:
Less than 1W
Warranty:
2 year standard warranty
Location
The In-line dimmer is a class 0 device which means that
it should be housed in a suitable dry location or electrical
housing to minimise the risk of contact with live electrical
wires. The Lightwave LW824 Waterproof housing can be
used to situate the Dimmer in an external environment. If in
doubt, always consult an electrician.
Range
Lightwave devices have an excellent communication range
within a typical home, however, if you encounter any range
issues, try to ensure that large metal objects or bodies of
water (e.g. radiators) are not positioned in front of the device
or in between the device and the Lightwave Link / Link Plus
or controller.

EU Declaration of Conformity

Product: In-line Dimmer Conformity is shown by
Model/Type: LW822 compliance with the applicable
Manufacturer: LightwaveRF
requirements of the following
documents:
Address: Innovation Campus
Birmingham, Faraday Wharf,
Reference and date:
Holt Street, Birmingham, B7 4BB
EN301489-3 V1.6.1: (EMC),
EN300220-2 V3.1.1 (RF),
This declaration is issued under
EN62479:2010 (RF Exposure),
the sole responsibility of the
EN60669-2-5:2013 (Safety),
LighwaveRF. The object of the
BS1363-2:1995 (UK Safety)
declaration described above is in
conformity with the relevant union Signed for and on behalf of:
harmonisation legislation.
Place of Issue: Birmingham
Date of Issue: 20th August 2017
Directive 2011/65/EU ROHS,
Name: John Shermer
Directive 2014/53/EU: (The Radio
Position: CTO
Equipment Directive)
