Orenco MVP-SSF PTRO Operation Instructions

MVP-SSF PTRO/DMRO

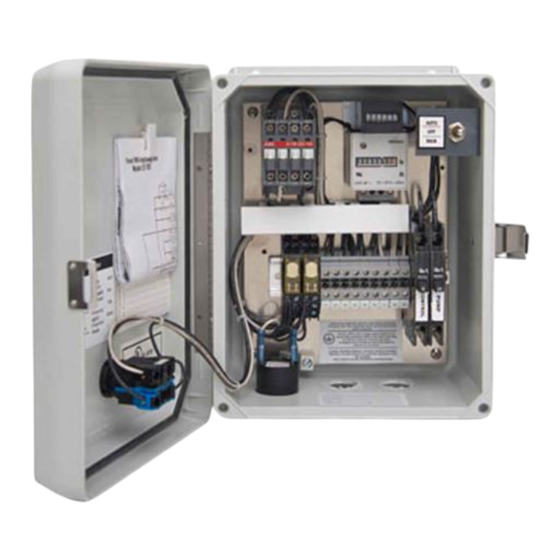

Orenco's Most Versatile Panel (MVP) line of control panels includes an easy-to-use programmable logic unit that
incorporates many timing and logic functions. This panel will accommodate timed dose septic tank systems and either
time dosed or on-demand sand filter systems. The panel's default mode of operation for the sand filter pumping is on-
demand. This document describes each mode of operation.
Alarm and Data Screens:
Alarm and data screens have been included with the panel to assist with panel monitoring and troubleshooting. The
following alarm and data screens have been included in your panel, look for the √ to determine if the screen will be
displayed for timed dosed or on-demand modes. Navigation between the screens is accomplished by using the up and
down arrow keys. See "Screen Navigation"
Alarm Screens†
1 Sand filter high level alarm
2 Septic tank high level alarm
3 Sand filter low level alarm
4 Septic tank low level alarm
Data Screens
5 Sand filter float status and timer mode (default screen, see fig 1)
6 Septic tank float status
7 Sand filter pump cycles at top of screen and pump run time beneath
8 Septic tank pump cycles at top of screen and pump run time beneath
9 Sand filter high level alarms
10 Septic tank high level alarms at top of screen and low level alarms beneath
11 Sand filter override cycles at top of screen and timer float events beneath
12 Septic tank override cycles
13 Power faults at top of screen and time in service beneath
14 Sand filter pump cycles at top of screen and pump run time beneath
15 Septic tank pump cycles at top of screen and pump run time beneath
16 Sand filter high level alarms
17 Septic tank high level alarms at top of screen and low level alarms beneath
18 Sand filter override cycles at top of screen and timer float events beneath
19 Septic tank override cycles
20 Power faults at top of screen and time in service since last reset
† Alarm screens will only be displayed when alarms are active and include a date and time stamp of when the alarm started.
* Screens with "T" in the lower right corner have totalized values for the data. Screens with "R" in the lower right corner have resettable data and display the
accumulated values since the last reset. To reset the accumulated values, hold the silence button on the panel for 10 seconds.
®
Orenco Systems
EIN-CP-OP-2113
Operation Instructions
section for more details.
•
, Inc. 814 Airway Avenue, Sutherlin, Oregon 97479, USA
•
800-348-9843
Rev. 9.0 © 02/22/18
DCN: EIN-CP-OP-2113
Rev: 9.0
Date: 02/22/18
√ √
√ √
√ √
√ √
√ √
√ √
√ √ T
√ √ T
√ √ T
√ √ T
√ T
√ √ T
√ √ T
√ √ R
√ √ R
√ √ R
√ √ R
√ R
√ √ R
√ √ R
• •
541-459-4449 www.orenco.com
Page 1 of 4
