Logik L32SBIN16 Instruction Manual
  1. Manuals
  2. Brands
  3. Logik Manuals
  4. Subwoofer
  5. L32SBIN16
  6. Instruction manual

Logik L32SBIN16 Instruction Manual

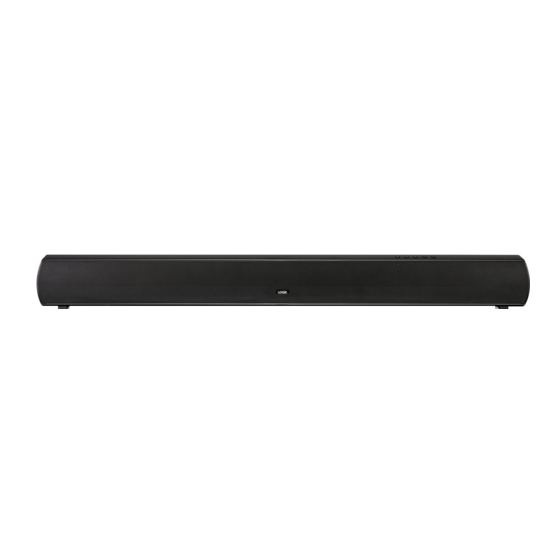

2.1ch soundbar with built-in subwoofer
Hide thumbs
Table of Contents

Advertisement

Quick Links

2.1CH Soundbar with
Built-in Subwoofer
Instruction Manual
L32SBIN16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L32SBIN16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Logik L32SBIN16

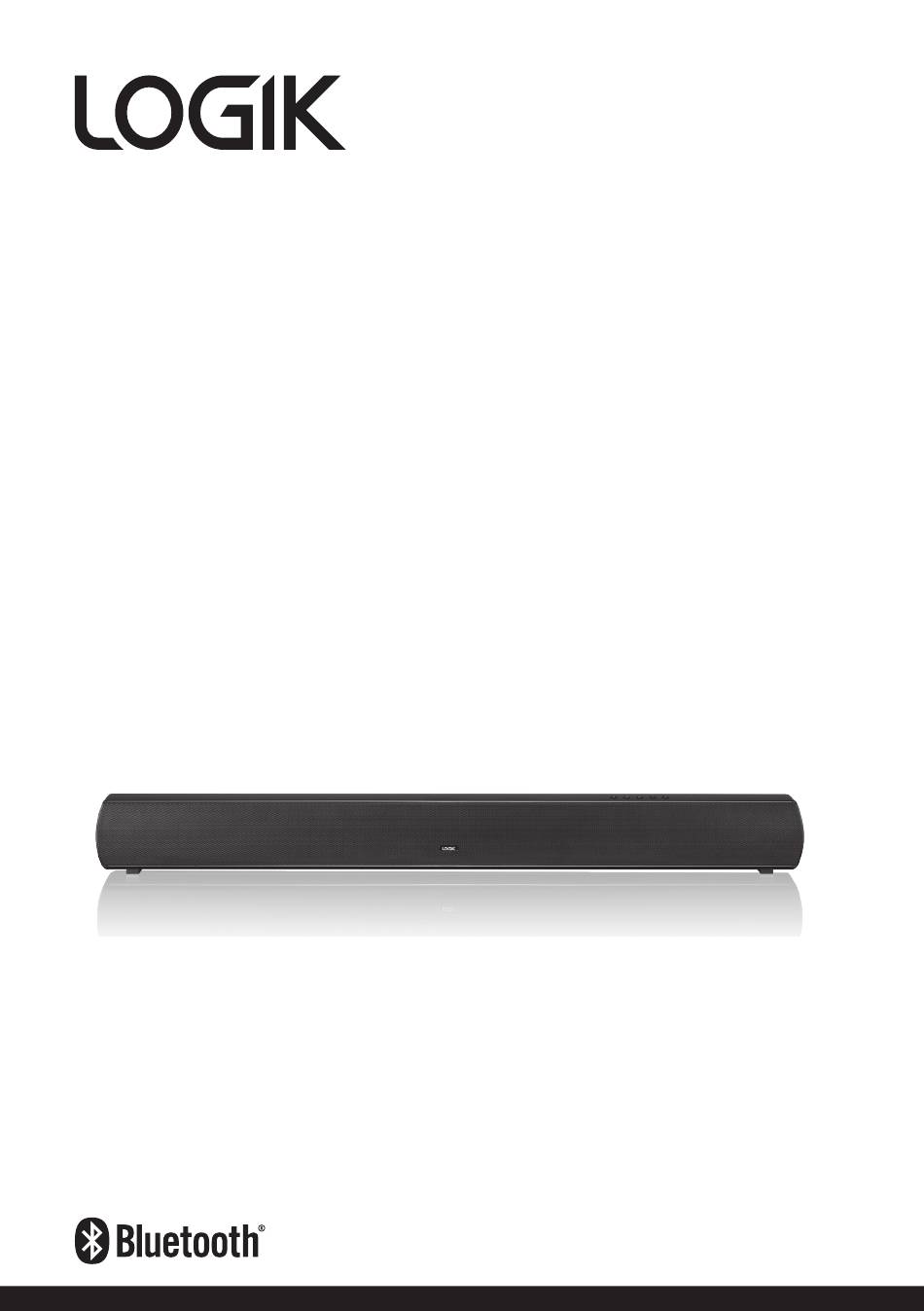

  • Page 1 2.1CH Soundbar with Built-in Subwoofer Instruction Manual L32SBIN16...

  • Page 3: Table Of Contents

    Contents Safety Warnings ............................. 4 Unpacking .............................. 6 Product Overview ..........................7 Front View .....................................7 Top View ....................................7 Rear View ....................................7 Remote Control ............................8 Remove the Plastic Strip from the Remote Control ................8 Battery Replacement for the Remote Control ..................9 Remote Control Operation Range ......................10 Wall Mounting .............................10 Connections ............................12...

  • Page 4: Safety Warnings

    Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not obstruct the ventilation vents.
  • Page 5 • Do not expose the battery to direct sunlight • This equipment is a Class II or sources of excessive heat. or double insulated electrical appliance. It has been designed in • Do not ingest the battery, Chemical Burn such a way that it does not require a Hazard.

  • Page 6: Unpacking

    Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 7: Product Overview

    Product Overview Front View 2 3 4 5 1. POWER Indicator 4. Optical Indicator Light up in Standby mode. Light up orange in Optical mode. Light up once while selecting 2. AUX Indicator MOVIE EQ effect. Light up green in AUX mode. 5.

  • Page 8: Remote Control

    Remote Control Button 9. CUSTOM Button Switch the unit between On and Press to select the default EQ setting. Standby mode. 10. MUTE Button 2. OPTICAL Button Silence the unit or restore the sound. Press to select OPTICAL mode. 11. BT Button 3.

  • Page 9: Battery Replacement For The Remote Control

    Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery. 1. Slide and hold the battery release tab in the direction of the arrow. 2. Pull out the battery holder and remove the old battery. 3.

  • Page 10: Remote Control Operation Range

    Remote Control Operation Range • The remote control sensor at the front unit is sensitive to the remote control’s commands up to a maximum of 6 metres away and within a maximum of a 60° arc. 30° 30° • Please note that the operating distance may vary depending on the brightness of the room.
  • Page 11 3. Drill 2 parallel holes (Ø ~6 mm each according to wall type) in the wall. Fix two screws onto the wall. They should be parallel to each other. The distance between the two screws should be 657 mm. Wall mounting with dowels and screws 657 mm ø...

  • Page 12: Connections

    Connections This section involves various methods of connecting the product to other external components. Ensure all audio connections of the unit are connected before connecting to the mains power socket. After the unit is connected to an external device, audio will only be heard from the soundbar while the connected device is used as a source output.

  • Page 13: Method 2: Using The Aux Connection

    Method 2: Using the AUX Connection Use the 3.5 mm to 3.5 mm stereo audio cable (included) to connect the AUDIO OUT / HEADPHONE socket of the external device (e.g. TV, DVD player, etc.)to the unit’s AUX socket. Please ensure that the output volume is turned up in order for the soundbar to operate.

  • Page 14: Method 3: Connecting To An External Device

    Method 3: Connecting to an external device Use the 3.5 mm to RCA stereo audio cable (not included) to connect the AUDIO OUT sockets (L/R) of an external device to the unit’s AUX socket. 1. Press button on the unit or remote control to switch on the unit. 2.

  • Page 15: General Operation

    General Operation When you first connect the main unit to the mains socket, the main unit will be in Standby mode. The POWER indicator will light up red. • Press the button on the main unit or remote control to switch the main unit on. The status indicator of the last used mode will light up.

  • Page 16: Adjusting The Bass/Treble Level In Custom Eq Mode

    The unit is now in pairing mode. 2. Activate your Bluetooth® device and select the search mode. 3. “L32SBIN16” will appear on your Bluetooth® device. Select “L32SBIN16” and enter “0000” for password if necessary. 4. On successful pairing, you will hear “Paired“ from the unit, and the Bluetooth® indicator will light up steadily.

  • Page 17: Listen To Music From Bluetooth® Device

    • If there is an existing connection, press PAIR button on the remote control to re-activate the pairing mode, the existing connection will be interrupted. • If no other Bluetooth® device pairs with this player within two minutes, the player will recover its previous connection. •...

  • Page 18: Hints And Tips

    I cannot find • Ensure that the unit is switched on. “L32SBIN16” on • Ensure that the Bluetooth® function is activated on your my Bluetooth® Bluetooth® device. device • The unit has a Bluetooth® function that can receive a signal within 8 metres.

  • Page 19: Specifications

    Specifications Model L32SBIN16 Main Unit Power Supply AC 220 – 240V ~50/60 Hz Main Unit Power Consumption 30 W USB Service Port 500 mA (for service use only) Do NOT use for other purpose Amplifier Output Power 15 W rms × 2 + 30 W rms Bluetooth®...
  • Page 20 All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite, Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-L32SBIN16-191211V8...
