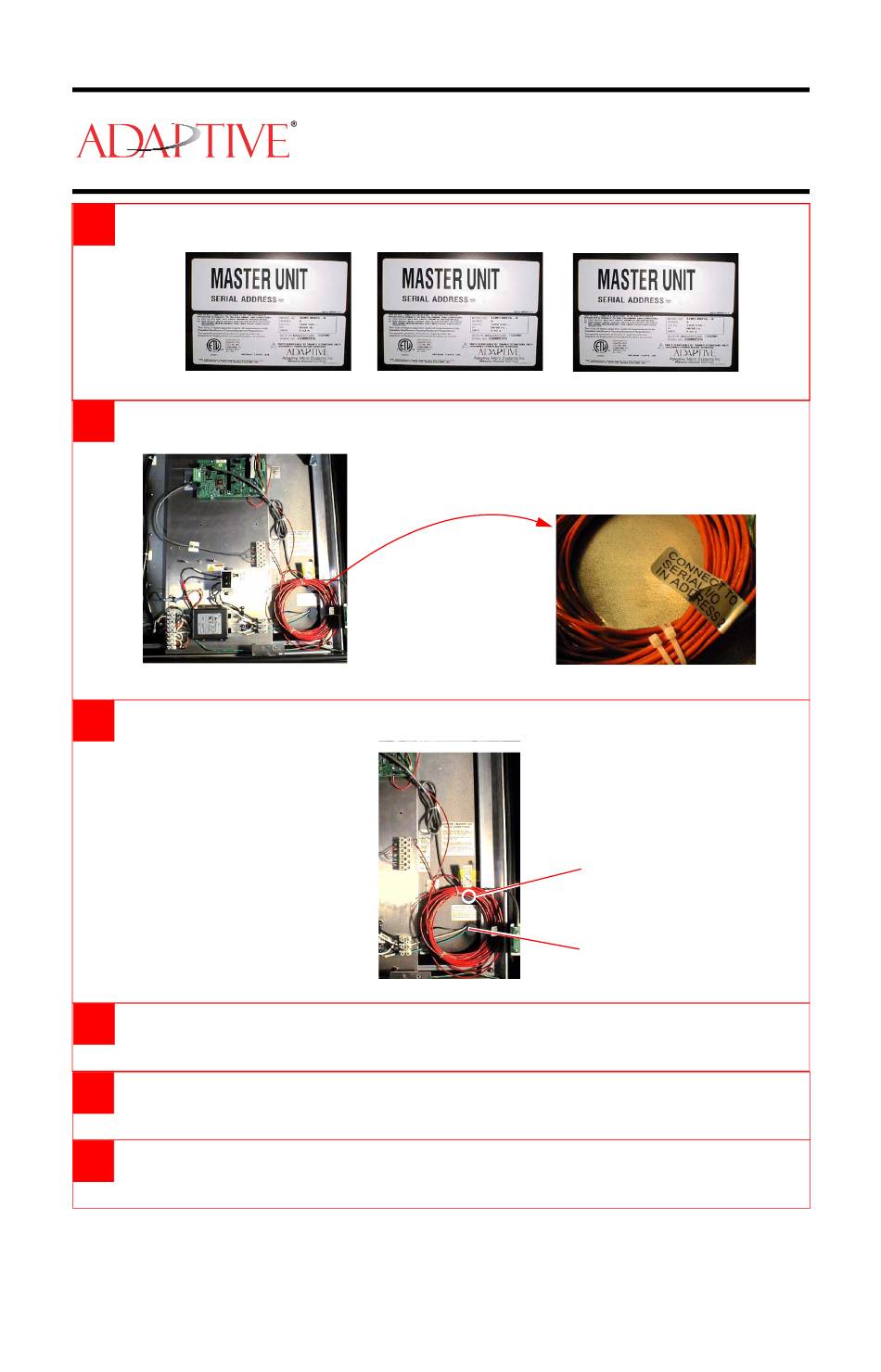

Adaptive AlphaEclipse 2500 Read This First

R
EAD THIS FIRST
1

Locate the SERIAL ADDRESS label on the back of each sign.

The SERIAL ADDRESS number will increase by one for each sign (1, 2, 3, and so on):
2

Open the sign with SERIAL ADDRESS = 1.

Locate the 30-foot Serial I/O cable in the lower left side of the sign.
3
Run the Serial I/O cable out through the sign's communications conduit opening.
Then close the sign.
NOTE: Do not route the Serial I/O
cable in the same conduit
as the power wires.
4

Open the sign labeled with SERIAL ADDRESS = 2.

Using the communications conduit opening, run the Serial I/O cable between the two signs.

5
Connect the signs as shown on the next page.
6
Repeat steps 3, 4, and 5 for each remaining sign.
AlphaEclipse 2500/2600/3500 Signs
Multiple Master Configuration
1
http://www.adaptivedisplays.com/support/eclipse
2
Serial I/O cable
Communications conduit opening
Power wires
3
