Summary of Contents for UME OverUnity

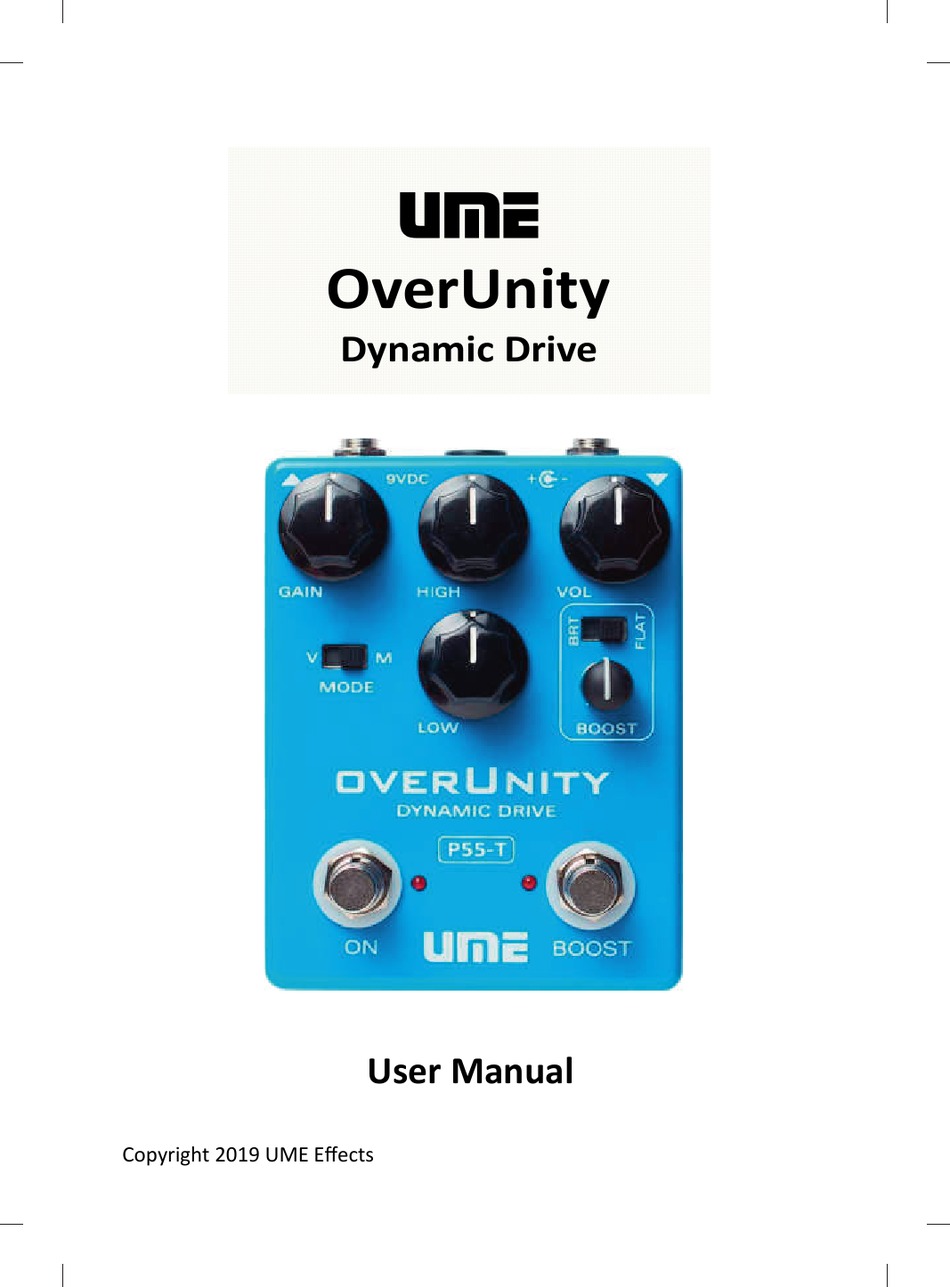

- Page 1 OverUnity Dynamic Drive User Manual Copyright 2019 UME Effects...
- Page 2 Precau ons Loca on Using the unit in the following loca ons can result in a malfunc on. • Where there is prolonged use in direct sunlight • Loca ons of extreme temperature or humidity • Excessively dusty or dirty loca ons •...
- Page 3 Be careful not to let metal objects get into the equipment. If something does slip into the equipment, unplug the AC adaptor from the wall outlet. Then contact UME Effects support at support@umeeffects.com or the store where the equipment was purchased.
- Page 4 Features Features include: All analog signal path Gain op ons ranging from a clean dynamic boost to classic saturated overdrive tones Two switchable compression/clipping curves, vintage and modern Standard 9Vdc opera on with internal voltage dou- bler for greater headroom ...
- Page 5 Controls INSIDE VIEW...
- Page 6 7. ON LED: This LED indicates that the OverUnity pedal is turned on. 8. ON SWITCH: This switch turns the OverUnity pedal on and off. 9. INPUT: This 1/4” jack allows you to plug your guitar into the pedal.
- Page 7 15. BATTERY: The ba ery compartment is located inside the pedal housing for connec ng a standard 9V DC ba ery (not included). 16. BUFFER-TRUE BYPASS SWITCH : The OverUnity pedal design allows for either buffered or true bypass of the input signal when the pedal is off.
- Page 8 Specifica ons: Jacks: 1x INPUT, 1x OUTPUT, 1x DC9V Input impedance: 500k-ohms Output impedance: 10k-ohms pedal on, 100K pedal off with buffer enabled. Power supply: 9V ba ery or 9Vdc adapter (not supplied) Current consump on: 18mA Dimensions (W x D x H): 93 x 125 x 55mm / 3.66 x 4.92 x 2.17 inches Weight: 380g /0.84lbs.
