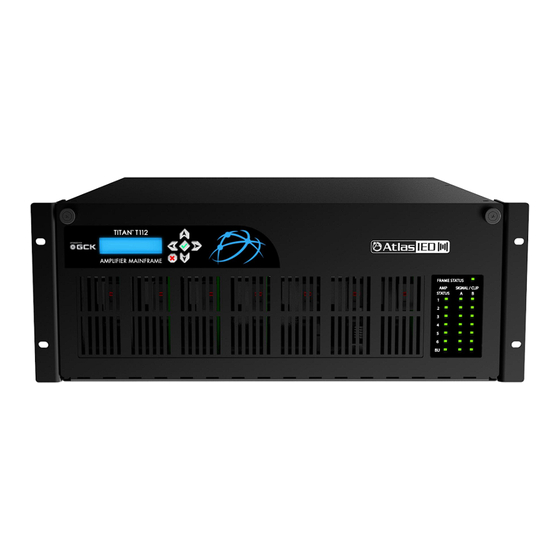

Atlas LED GCK TitanONE T112 Operation User's Manual

Stand-alone

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

T112 Stand-Alone

User Manual

TitanONE T112 Stand-Alone Operation

©2017 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. The Atlas "Circle A", Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC.

All other trademarks are the property of their respective owners. All specs are subject to change without notice. Doc: 1225C Ver:1.0 6/25/2018

User Manual

Version: 1.0

Date: 25 June 2018

Document Number: 1225C

Table of Contents

Need help?

Do you have a question about the GCK TitanONE T112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas LED GCK TitanONE T112

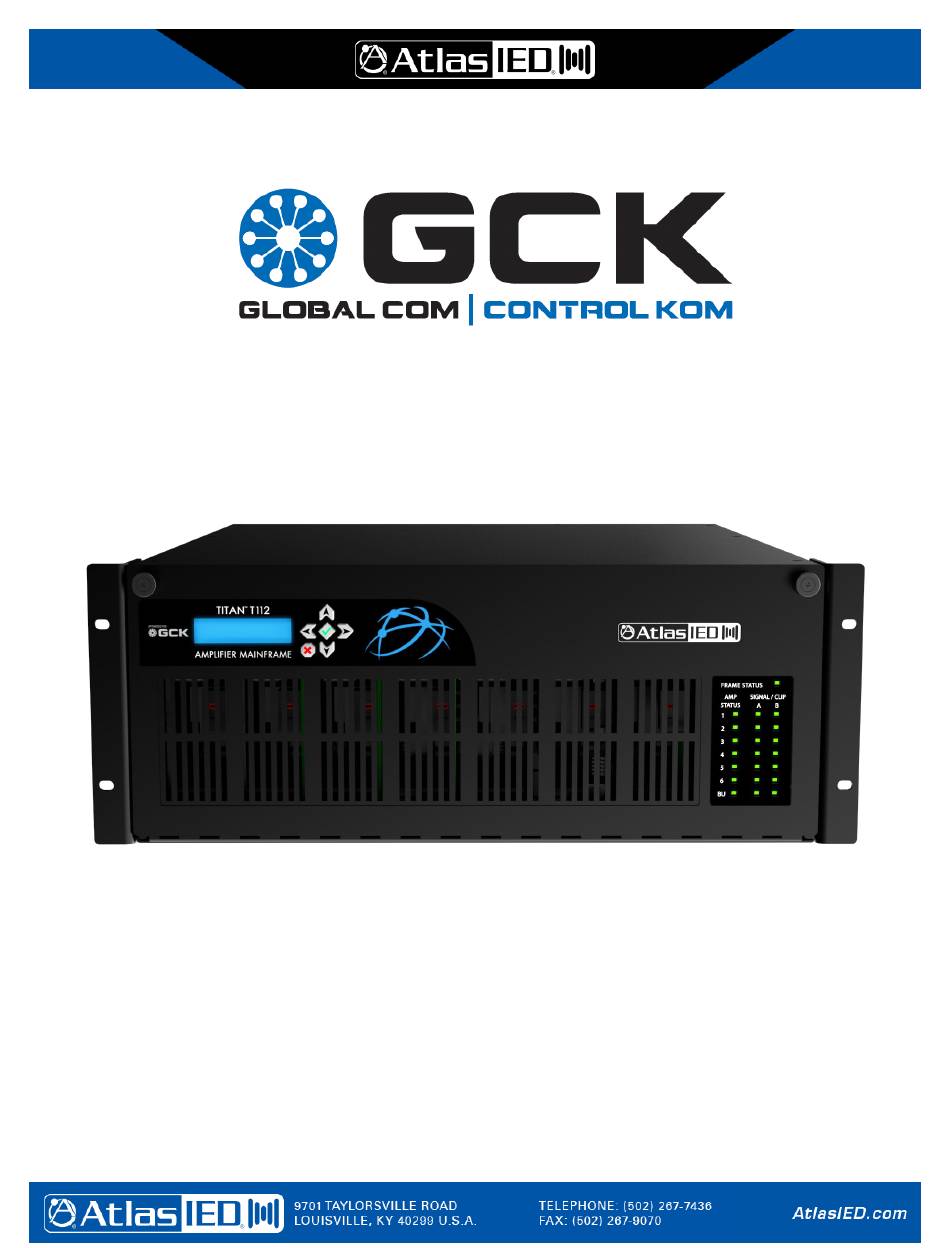

Page 1 T112 Stand-Alone User Manual TitanONE T112 Stand-Alone Operation User Manual Version: 1.0 Date: 25 June 2018 Document Number: 1225C ©2017 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. The Atlas “Circle A”, Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.
Page 2: Copyright Information
T112 Stand-Alone User Manual Copyright Information ® Copyright 2018, Innovative Electronic Designs, LLC. All Rights Reserved If this document is distributed with software that includes an end user agreement, this document, as well as the software described in it, is furnished under license and may be used or copied only in accordance with the terms of such license. Except as permitted by any such license, no part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, storage in an information retrieval system, or otherwise, without the prior written permission of Innovative Electronic Designs, LLC.
Page 3: Version History
T112 Stand-Alone User Manual only). Please make sure your request includes the “Model number” and the “Build number” associated with the software of your IED device. Re: OSS Management Innovative Electronic Designs, LLC 9701 Taylorsville Road Louisville, KY 40299 United States of America The open source software is distributed in the hope it will be useful, but WITHOUT ANY WARRANTY;...
Page 4: Table Of Contents
T112 Stand-Alone User Manual Table of Contents Sound Masking Settings Window ....17 Copyright Information ............2 4. Configure Analog Input Screen ......18 Version History ..............3 Analog Input EQ Settings Window ....19 End User License Agreement ......... 5 5.
Page 5: End User License Agreement
T112 Stand-Alone User Manual End User License Agreement Software License Agreement and Limited Warranty THIS IS A LEGAL AGREEMENT BETWEEN THE USER (“YOU”) AND INNOVATIVE ELECTRONIC DESIGNS (“IED”) RELATING TO COPYRIGHTED IED SOFTWARE, COPYRIGHTED THIRD-PARTY SOFTWARE, AND DOCUMENTATION (COLLECTIVELY “SOFTWARE”) PROVIDED WITH IED AUDIO COMPONENTS (“PRODUCTS”) OBTAINED FROM IED OR ITS AUTHORIZED CONTRACTORS.
Page 6: T112 Stand-Alone Graphical User Interface Overview
T112 Stand-Alone User Manual T112 STAND-ALONE OPERATION USER MANUAL T112 Stand-Alone Graphical User Interface Overview Introduction One way to use the TitanONE T112 is as part of a system where it is configured and controlled by GCK. However, it is also possible to user the T112 in a stand-alone application.
Page 7: T112 Main Screen Features And Operation
T112 Stand-Alone User Manual T112 Main Screen Features and Operation The main is the home base for the GUI from which all other screens are accessed. Below is a screenshot of the main screen with sections of the screen marked. Each of these sections is described below. ...
Page 8 T112 Stand-Alone User Manual  Amp Card Status & Control Panels (6 total) There is one of these sections for each of the six primary amplifier cards slots in the frame. The items in this area are:  Slot Used Control Slider control to indicate whether this slot is filled with an amplifier (or line driver) card or not.
Page 9 T112 Stand-Alone User Manual  Type Displays the amplifier type detected for that slot.  Temp Displays the amplifier temperature (Celsius) for the amplifier in that slot.  Configure Channels (A and B) Icons Clicking on one of these gear icons jumps to the Amplifier Configuration Channel screen for the selected channel (see Chapter 3).
Page 10 T112 Stand-Alone User Manual  Frame Status Indicator This somewhat mirrors the same LED on the front of the T112 hardware. The colors on these indicators have the following meaning:  Solid Green – unit is powered up and running normally. ...
Page 11 T112 Stand-Alone User Manual Network Settings Launch Button (13) Clicking anywhere in this button/panel will jump to the Network Settings Screen (see Chapter 9). Configure Analog Inputs Panel (14) On this panel, one can click on the gear icon for any of the 12 analog audio inputs of the T112 frame to jump to the Configure Analog Input screen for that input (see Chapter ©2017 Atlas Sound L.P.
Page 12: Amplifier Channel Configuration Screen
T112 Stand-Alone User Manual Amplifier Channel Configuration Screen The Amplifier Channel Configuration Screen can be accessed for any of the 12 channels in the system 1A, 1B, 2A, 2B, etc. and appears as shown below. The sections on this screen and the indicators/controls are described below. /...
Page 13 T112 Stand-Alone User Manual  Priority Input Trigger Panel This panel is used to determine how/when the priority input audio becomes active. The Auto Detect control is used to enable audio detection on the priority input source signal and use that to active the priority audio (and duck the non-priority audio).
Page 14 T112 Stand-Alone User Manual  Sound Masking Settings Panel Each channel can have its own sound masking noise mixed in on top of non-priority or priority input audio. The controls in this section are used to enable masking noise for this amplifier channel. ...
Page 15: Eq Settings Window
T112 Stand-Alone User Manual EQ Settings Window The EQ settings can be adjusted via the EQ Settings pop-up window, such as the example shown below. The areas in this window are described below. The X at top right is used to close this pop-up. The settings are saved when the save button is pressed on the amplifier channel configuration screen from which this pop-up was launched (or are discarded if Cancel is pressed instead).
Page 16 T112 Stand-Alone User Manual Make All Flat Button Pressing this button prompts to do the operation first with a Yes/No prompt box. If Yes is selected, then all bands are set to 0 dB level. Filter type “None” and bandwidth 1.0 Octaves. Note, this operation is not reversible directly, but will not be saved if one presses the Cancel button on the Amplifier Channel Configuration screen that this launched from.
Page 17: Sound Masking Settings Window
T112 Stand-Alone User Manual Sound Masking Settings Window The sound masking settings for each amplifier channel are configured in a pop-up window such as the one shown below. If one wishes to copy the settings from another channel into this one, this is done by selecting the channel in the top left box and then pressing the copy button.
Page 18: Configure Analog Input Screen
T112 Stand-Alone User Manual Configure Analog Input Screen Each of the 12 analog audio inputs on the T112 frame may be configured via the screen such as shown below. The indicated features are described below.  Input Level Panel One can adjust lower level line inputs by as much +20 dB using the control in this panel. One may either click and drag the box in the slider control or enter a value in the edit box below it.
Page 19: Analog Input Eq Settings Window
T112 Stand-Alone User Manual Analog Input EQ Settings Window There are five bands of parametric equalization available on each analog input. These can be adjusted via the controls on shown in the example below, and explained below that. Frequency Response Graph In this area, an approximation of the frequency response (level) is shown.
Page 20 T112 Stand-Alone User Manual Make All Flat Button Pressing this button prompts to do the operation first with a Yes/No prompt box. If Yes is selected, then all bands are set to 0 dB level. Filter type “None” and bandwidth 1.0 Octaves. Note, this operation is not reversible directly, but will not be saved if one presses the Cancel button on the Amplifier Channel Configuration screen that this launched from.
Page 21: Configure Logic Inputs Screen
T112 Stand-Alone User Manual Configure Logic Inputs Screen This chapter is reserved for future features related to the Logic Inputs of the T112. About Window The About window has basic information about the T112 frame and its firmware as shown in the figure below right Clicking on the View Licenses icon/label at the bottom brings up a license tree, such as the start shown below.
Page 22: Configure Automated Testing Screen
T112 Stand-Alone User Manual Configure Automated Testing Screen The automated test functions of the T112 are configured via the Auto Test screen. Initially, when this screen is brought up, it appears as below. One should select a test to configure or run from the drop list at the top left, as indicated by the prompting text. Selecting a test changes the window to appear as below.
Page 23 T112 Stand-Alone User Manual Frequency The frequency of the test tone in Hertz. A typical value to test speakers might be 400 Hz or 1000 Hz. A typical value to test speaker lines without being heard by people in the spaces is something near 20 kHz, such as 19,700 Level The level of the test tone in Decibels full-scale (dBfs).
Page 24 T112 Stand-Alone User Manual The columns in the Test Results Grid are as follows: (blank) The first column shows an icon to indicate test success or failure for this point on the most recent test. A summary of the successes and failures are indicated at the top right by the numbers inside the green and yellow circles.
Page 25 T112 Stand-Alone User Manual The Action Buttons on this screen are as follows: Calibrate One clicks on this button to run the test and store the results as the Set values for the test points. One should be sure to save any configuration changes via the Apply button before running.
Page 26 T112 Stand-Alone User Manual Circuit Test/Monitor Test Points Clicking on this button calls up the Circuit Test/Monitor Test Points window as shown below. The controls in this pop-up are the following: Select Test Point Drop List One selects the desired test point via this drop list box. Do Circuit Test A circuit test is where the test tone frequency and level for the current test (back on the Auto Test screen that one just left) is used to generate audio to the amplifier channel associated with this test point and...
Page 27: Ambient Sensor Meter Bridge Window
T112 Stand-Alone User Manual Ambient Sensor Meter Bridge Window The meter bridge is a pop-up window that shows all 24 ambient sensor levels simultaneously. The sensors are hard assigned two per amplifier channel, and appear such as is shown below. The features on this window are described below.
Page 28: System Settings Screen
T112 Stand-Alone User Manual System Settings Screen Access to the System Settings screen is via an additional access code. Clicking on the Settings icon on the main page brings up an access code entry pop-up such as shown at right. The access code is the same as for many other AtlasIED settings on network products: 5022677436 After entering the code and clicking on the Login button, one sees the System...
Page 29 T112 Stand-Alone User Manual Warning: The upload feature is for updating the T112 firmware and supporting files, and requires specially formatted and encrypted files provided by AtlasIED. Users should not attempt using this feature without being directed to do so by AtlasIED Technical Support. The System Settings screen Update tab is shown at right.
