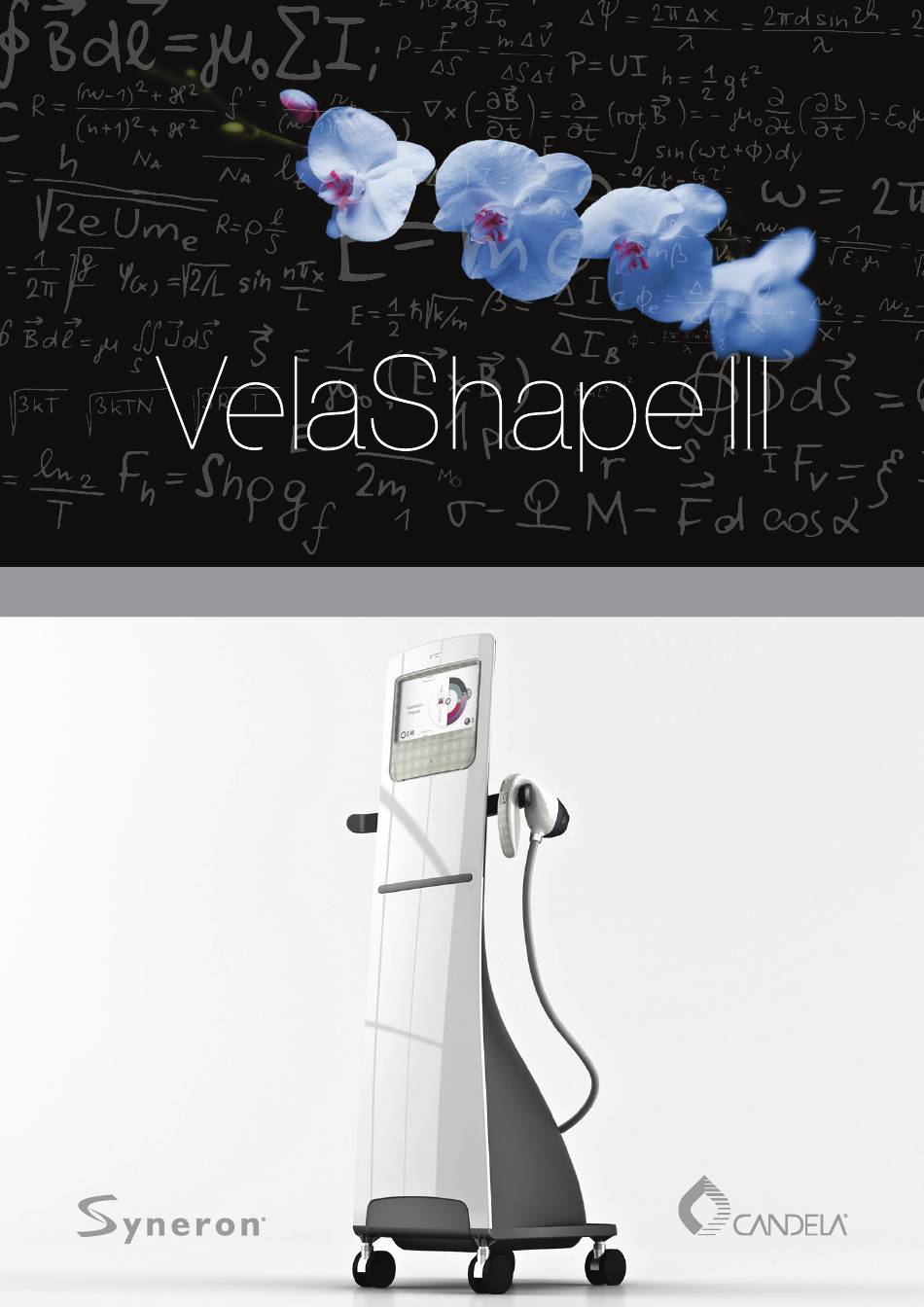

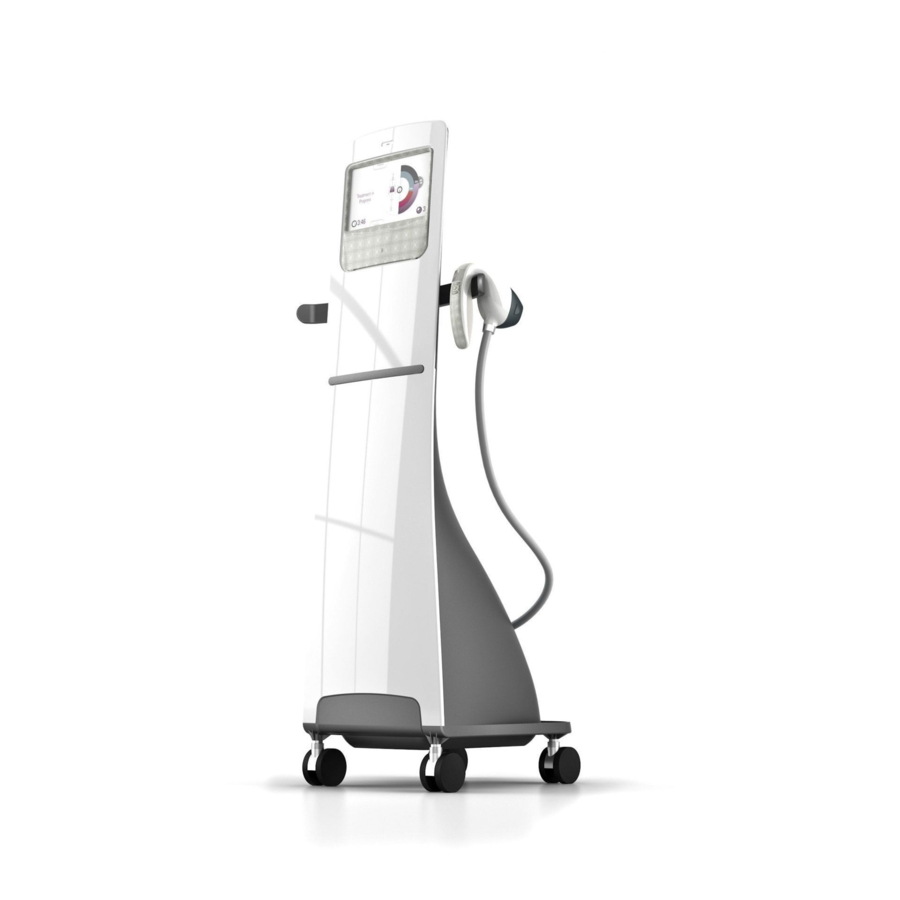

  • Page 1 Service Manual Science. Results. Trust.
  • Page 2 Copyright © 2014 Syneron, Inc. All rights reserved. Syneron, Inc. reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Syneron, Inc. is believed to be accurate and reliable. However, Syneron, Inc.

  • Page 3: Table Of Contents

    Maintenance ........................1-5 1.5.3. Modification of Device ..................... 1-5 1.5.4. Resale Inspection ......................1-5 1.5.5. Communicating with Syneron ..................1-6 1.6. Explanation of Symbols Used in the System and Accessories ..........1-7 1.7. Service Reports ........................1-7 CHAPTER 2 Safety and Regulatory Page 2.1.
  • Page 4 Table of Contents Service Manual VelaShape III 3.4. System Dimensions ........................3-5 3.5. Installation Process ........................3-6 3.6. Moving the System within the Facility ..................3-8 3.7. Moving the System to another Facility ..................3-8 3.8. Electrical Requirements ......................3-8 3.9.
  • Page 5 Service Manual Table of Contents VelaShape III 5.5. IR Thermometer Accuracy Verification Test ................5-18 5.6. Electrical Frequency Setup ..................... 5-19 5.7. Programming the System's Serial Number................5-21 5.8. System Software Upgrade ...................... 5-25 5.8.1. Prepare the System and Applicator ................5-25 5.8.2.
  • Page 6 Table of Contents Service Manual VelaShape III Figure 4-26: Power Supply Cables ...................... 4-21 Figure 4-27: Power Supply Tray Screws ..................... 4-22 Figure 4-28: Power Supply Cage Screws .................... 4-22 Figure 4-29: Solid-State Relay Cables ....................4-23 Figure 4-30: Solid State Relay Screws ....................4-23 Figure 4-31: Vacuum Pump Panel Screws ..................
  • Page 7 Service Manual Table of Contents VelaShape III Figure 5-26: Connect the New Applicator ................... 5-25 Figure 5-27: System Software Upgrade (1) ..................5-26 Figure 5-28: System Software Upgrade (2) ..................5-26 Figure 5-29: System Software Upgrade (3) ..................5-27 Figure 5-30: System Software Upgrade (4) ..................5-28 Figure 5-31: System Software Upgrade (5) ..................
  • Page 8 Table of Contents Service Manual VelaShape III TOC-6 PB81501LW...
  • Page 9 Service Manual CHAPTER 1 Introduction...
  • Page 10 Physician Responsibility ..................1-5 1.5.2. Maintenance ....................... 1-5 1.5.3. Modification of Device ..................1-5 1.5.4. Resale Inspection ....................1-5 1.5.5. Communicating with Syneron ................1-6 1.6. Explanation of Symbols Used in the System and Accessories ........1-7 1.7. Service Reports ......................1-7 PB81501LW...

  • Page 11: Scope Of This Manual

    Note While the manual is intended to aid service personnel in the care and service of the equipment, it cannot serve as a substitute for service engineer training, provided by Syneron or its agents. 1.2. Conventions Used in this Manual...

  • Page 12: Contents Of This Manual

    Introduction Service Manual VelaShape III 1.3. Contents of This Manual This service manual includes the following chapters: • Chapter 1: Introduction Provides the scope of the manual and a list of applicable documents. • Chapter 2: Safety and Regulatory Describes safety issues regarding the use, service and maintenance of the VelaShape III system.

  • Page 13: Important Information

    All service must be performed by an authorized service engineer and all parts must be purchased from Syneron. Failure to obtain service and parts through Syneron voids all warranties, express and implied. Please call Syneron or your local representative for details.

  • Page 14: Communicating With Syneron

    VelaShape III 1.5.5. Communicating with Syneron During any communication with the service department at Syneron, or with any of the service depots, it is necessary to mention the serial number of the VelaShape III system being discussed. The serial number may be found on the system's nameplate, adhered to the system's rear panel (see Figure 1-1).

  • Page 15: Explanation Of Symbols Used In The System And Accessories

    Manufacturer Authorized Representative in the European Union 1.7. Service Reports At the end of every service call, fill out a copy of the VelaShape III System Final Test Form (next page) and send it to the Syneron Call Center. PB81501LW...
  • Page 16 Service Manual Final Test Form VelaShape III System S/N: __________________Service Rev. ___________ Customer Loaner Resale Marketing Final Test / Upon Arrival Test Date Originated: ____________ System Damage Upon arrival Yes / No If Yes, Add Damage Description & Cause: _______________________________________________________________ Applicator Display Ensure the OLED screen on applicators panel is illuminated.

  • Page 17: Safety And Regulatory Page

    Service Manual CHAPTER 2 Safety and Regulatory...
  • Page 18 Safety & Regulatory Service Manual VelaShape III Table of Contents Section Page 2.1. Introduction ......................... 2-3 2.2. Safety Precautions ...................... 2-3 2.2.1. General Precautions ................... 2-3 2.2.2. Infrared Energy ....................2-4 2.2.3. Radiofrequency Energy ..................2-5 2.2.4. Working within the System Cabinet ..............2-5 2.3.

  • Page 19: Introduction

    The field service engineer servicing the system should be familiar with the safety information provided in this chapter. Syneron assumes no liability whatsoever for any damage or injury as a result of an application of a product which is not in strict accordance with the instructions provided with the product.

  • Page 20: Infrared Energy

    • Never leave the system turned on, open or unattended during system service. Caution • Only common workshop tools and specific specialized Syneron tools are allowed for servicing the system. • Always check that all parts removed from the system (including fastening hardware) have been reinstalled.

  • Page 21: Radiofrequency Energy

    Service Manual Safety & Regulatory VelaShape III 2.2.3. Radiofrequency Energy The RF energy emits heat via bi-polar electrodes. Full coupling of both electrodes to the skin is necessary before pressing the trigger button. Because of the heating effect by RF energy, highly conductive objects such as superficial metal or conductive implants, rods, plates or pins should be avoided in the treatment area.

  • Page 22: System Safety Features

    Safety & Regulatory Service Manual VelaShape III 2.3. System Safety Features The VelaShape III system incorporates the following safety features: 2.3.1. Main On/Off Power Switch The power Switch ensures that the system cannot be operated unless first turned On. When set to On the system is energized;...

  • Page 23: Specifications

    Service Manual Safety & Regulatory VelaShape III 2.4. Specifications 2.4.1. Output Parameters Console Peak RF Power 150 Watts RF Frequency 1 MHz RF Mode Bi-Polar Light Wavelength 850 nm (-200) to (-390) Millibars Pulsed Vacuum VContour Applicator Up to 1.7 W IR Electrical Power RF Power –...

  • Page 24: Environmental Requirements

    Safety & Regulatory Service Manual VelaShape III 2.4.5. Environmental Requirements 2.4.5.1. Treatment Room • Temperature: 15° – 30°C [59° – 86°F] • Relative humidity: Up to 80% • Air pressure range: 70 – 106 kPa 2.4.5.2. Storage/Transportation • Temperature: 10° – 55°C [50° – 131°F] •...

  • Page 25: Regulatory

    Service Manual Safety & Regulatory VelaShape III 2.5. Regulatory 2.5.1. System Classifications • Electric shock protection: Class A, Group I • Protection against ingress of liquids: Ordinary equipment • Not suitable for use in presence of flammable substances. 2.5.2. Standard Compliances •...

  • Page 26: Electromagnetic Emissions

    Safety & Regulatory Service Manual VelaShape III 2.5.3. Electromagnetic Emissions The VelaShape III system is intended for use in the following electromagnetic environment. The owner of the system and/or the user must ensure that it is operated the correct environment. Emissions Test Compliance CISPR 11: RF Emissions...

  • Page 27: Electromagnetic Immunity

    Service Manual Safety & Regulatory VelaShape III 2.5.4. Electromagnetic Immunity Immunity Test IEC 60601 Test Level Compliance ±2, 4, 6 kV Contact IEC 61000-4-2: Electrostatic ± 6 kV contact ± 8 kV air Discharge (ESD) ±2, 4, 6, 8 kV Air ±...

  • Page 28: Electromagnetic Immunity (Continued)

    Safety & Regulatory Service Manual VelaShape III 2.5.5. Electromagnetic Immunity (continued) IEC 60601 Immunity Test Compliance Guidelines Test Level d =1.17 * SQRT(P) 80 MHz to 800 MHz d =2.33 * SQRT(P) 800 MHz to 2.5 GHz Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended...

  • Page 29: Recommended Separation Distances

    Service Manual Safety & Regulatory VelaShape III 2.5.6. Recommended Separation Distances The following are the recommended separation distances between portable and mobile RF communications equipment and the VelaShape III system. The VelaShape III system is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
  • Page 30 Safety & Regulatory Service Manual VelaShape III 2-14 PB81501LW...

  • Page 31: System Installation Page

    Service Manual CHAPTER 3 System Installation...
  • Page 32 System Installation Service Manual VelaShape III Table of Contents Section Page 3.1. Introduction ......................... 3-3 3.2. Unpacking the System ....................3-3 3.3. Equipment List ......................3-4 3.3.1. Consumable Supplies ..................3-4 3.4. System Dimensions ....................3-5 3.5. Installation Process ..................... 3-6 3.6.

  • Page 33: Introduction

    3.2. Unpacking the System After unpacking the system, Syneron recommends that you retain the shipping box and the internal Styrofoam covers and braces in the event that the system will have to be relocated anytime in the future.

  • Page 34: Equipment List

    ⇒ One pair of protective opaque goggles. ⇒ User Manual. ⇒ Quick-Reference Guide. ⇒ Filter extractor. 3.3.1. Consumable Supplies The following consumable supplies may be ordered from your Syneron distributor: • VelaShape III applicator's covers packs. • VelaSpray Ease bottles. PB81501LW...

  • Page 35: System Dimensions

    Service Manual System Installation VelaShape III 3.4. System Dimensions Space should be allocated with adequate ventilation and free airflow. The working area for the system should be prepared according to the system dimensions presented in Figure 3-1. In order to guarantee proper ventilation, always keep the sides of the system at least 0.5m (20") from the wall or from other obstructions to air flow.

  • Page 36: Installation Process

    System Installation Service Manual VelaShape III 3.5. Installation Process After unpacking the VelaShape III system, install the applicator in the following manner: 1. Refer to Figure 3-2: ensure that the rubber grips are installed on both handles. If they came in the accessories box, slip them on to the handles. 2.

  • Page 37: Figure 3-4: Service Panel

    Service Manual System Installation VelaShape III Refer to Figure 3-4: 4. Unpack the power cable, ensure that it has a proper wall connector (for your country) and connect it to the power connection port on the system's service panel ( ), and plug the other end into the appropriate electrical outlet.

  • Page 38: Moving The System Within The Facility

    System Installation Service Manual VelaShape III 3.6. Moving the System within the Facility 1. Turn the system off and disconnect the power cable. 2. Disconnect the umbilical cable and applicator and place them in a safe location. 3. Release the wheel brakes at the base of the system. 4.

  • Page 39: Environmental Requirements

    Service Manual System Installation VelaShape III It is recommended that the system be connected to a separate power line with separate circuit breakers. Syneron cannot guarantee performance unless the system is connected to a dedicated circuit. Warning • For continued protection against fire, replace the fuses only with those of the same type and rating.
  • Page 40 System Installation Service Manual VelaShape III 3-10 PB81501LW...

  • Page 41: Modules Replacement Page

    Service Manual CHAPTER 4 Modules Replacement...
  • Page 42 Modules Replacement Service Manual VelaShape III Table of Contents Section Page 4.1. Removing the Handle Bar ................... 4-3 4.2. Removing the VelaShape III Covers ................4-4 4.2.1. Removing the Utility Panel Service Door ............4-4 4.2.2. Removing Lower Rear Cover ................4-5 4.2.3.

  • Page 43: Removing The Handle Bar

    Manual Modules Replacement VelaShape III Service 4.1. Removing the Handle Bar Note Removing the handle bar is only necessary when removing/replacing the upper-rear panel. This is not common when servicing the system in the field. Before you remove the handle bar, you must remove the cover with a small, flat screwdriver as shown in Figure 4-1.

  • Page 44: Removing The Velashape Iii Covers

    Modules Replacement Service Manual VelaShape III 4.2. Removing the VelaShape III Covers 4.2.1. Removing the Utility Panel Service Door Refer to Figure 4-3: 1. Lift the utility panel service door to access the four screws located on the door hinges. 2.

  • Page 45: Removing Lower Rear Cover

    Manual Modules Replacement VelaShape III Service 4.2.2. Removing Lower Rear Cover Before moving the rear lower panel you must gently tilt the system on its front facing side to access all the panel screws (this is a two man job). It is best to lay the system down on some plastic sheeting in order to protect the system's surfaces.

  • Page 46: Removing The Front Display Panel

    Modules Replacement Service Manual VelaShape III 4.2.3. Removing the Front Display Panel Before removing the front display you need to remove the two front bezels. Figure 4-5: Front Bezels 1. Use a flat headed screwdriver to remove bezel 2. Do the same to remove bezel 3.

  • Page 47: Removing Front Bottom Panel

    Manual Modules Replacement VelaShape III Service 4.2.4. Removing Front Bottom Panel There are a total of six screws holding the front bottom panel in place. You need to use a 3 mm Allen wrench to remove them. Figure 4-7: Front Bottom Panel Screws 1.

  • Page 48: Removing The Rear Top Panel

    Modules Replacement Service Manual VelaShape III 4.2.5. Removing the Rear Top Panel The rear top panel screws are accessed from the front as shown in Figure 4-8. Figure 4-8: Rear Head Screws Warning Use your hand to secure the panel so it doesn’t fall. 1.

  • Page 49: Replacing The Internal Components

    Manual Modules Replacement VelaShape III Service 4.3. Replacing the Internal Components Note All Allen screws have flat and lock washers. 4.3.1. Removing the System Components Cover The system components cover is meant to protect the inner components while allowing fresh air to pass through to the system components. 1.
  • Page 50 Modules Replacement Service Manual VelaShape III 4. Remove the four Phillips screws from the components panel as shown in Figure 4-10. Figure 4-10: Removing the System Components Cover (2) 5. Slide the cover from its place. 6. Perform steps four and five in reverse order to replace the cover. 4-10 PB81501LW...

  • Page 51: Removing The System Air Filter Cup

    Manual Modules Replacement VelaShape III Service 4.3.2. Removing the System Air Filter Cup The filter cup needs to be cleaned daily to prevent buildup of dust and debris. 1. Remove the central screw from within the filter cup. 2. Remove the filter cup. Note Be sure to leave the filter cup’s O-ring attached to the cup.

  • Page 52: Replacing The Control Panel

    Modules Replacement Service Manual VelaShape III 4.3.3. Replacing the Control Panel The control panel is a standard 10.1 inch Android based tablet computer. 1. Remove the front display panel as shown in section 4.2.3. 2. Remove two of the 2.5 mm Allen screws with washers from the tablet's frame on either the left or right side.

  • Page 53: Replacing The Rf Generator

    Manual Modules Replacement VelaShape III Service 4.3.4. Replacing the RF Generator If the RF generator card malfunctions, it may be disassembled and replaced. 1. Remove the ventilation cage as shown in section 4.3.1. 2. The cables and ports have labels and tags for easy connection, disconnect the cables gently.

  • Page 54: Figure 4-14: Rf Generator Screws (1)

    Modules Replacement Service Manual VelaShape III 4. Once you have the RF generator on the table, locate the ten Philips screws that secure the generator (three on the left and right sides, and two on the front and back) as shown in Figure 4-14 and Figure 4-15. 5.

  • Page 55: 4.3.4.1. Replacing The Rf Generator Card

    Manual Modules Replacement VelaShape III Service 4.3.4.1. Replacing the RF Generator Card Once you’ve opened the RF generator cage screws as covered in Replacing the RF Generator (see Section 4.3.4), you are ready to access and disconnect the RF generator card for replacement.

  • Page 56: Figure 4-17: Rf Card Screws

    Modules Replacement Service Manual VelaShape III Figure 4-17: RF Card Screws Note Be sure to take note of the orientation of the card prior to removing it from its place and replace it in the same direction (as shown in Figure 4-18.

  • Page 57: 4.3.4.2. Replacing The Rf Card Fuses

    Manual Modules Replacement VelaShape III Service 4.3.4.2. Replacing the RF Card Fuses The fuses prevent damage to the RF generator caused by power surges and may require replacement. Figure 4-19: RF Card Fuses 1. Remove the plastic cap enclosing the fuse marked FUB1. 2.

  • Page 58: 4.3.4.3. Replacing The Rf Generator Fans

    Modules Replacement Service Manual VelaShape III 4.3.4.3. Replacing the RF Generator Fans Both fans in the RF generator box are interconnected and must be replaced as a set since the fans share the same harness. Note All screws are held in place by matching nuts. Figure 4-20: RF Generator Fans 1.

  • Page 59: Replacing The Cpu

    Manual Modules Replacement VelaShape III Service 4.3.5. Replacing the CPU The CPU sits in its housing and regulates all system functions. Figure 4-21: CPU Housing Screws 1. To remove the CPU housing cover, unscrew and remove the eleven (11) Allen screws marked by the arrows in Figure 4-21.

  • Page 60: Figure 4-23: Cpu Air Tube

    Modules Replacement Service Manual VelaShape III 3. Pull the air tube off of the barb connected to the card's air pressure sensor (see Figure 4-23). Figure 4-23: CPU Air Tube 4. Remove the four 5.5 mm standoff screws from the corners of the CPU (shown in Figure 4-24).

  • Page 61: Replacing The Power Supply

    Manual Modules Replacement VelaShape III Service 4.3.6. Replacing the Power Supply Warning Always make sure the system is disconnected from the main power cable prior to accessing the power supply. The power supply assembly has no serviceable field aspects, and is replaced as a unit. 1.
  • Page 62 Modules Replacement Service Manual VelaShape III 4. Remove the power supply cage by releasing the 2.5 mm screws shown in Figure 4-27. Figure 4-27: Power Supply Tray Screws 5. Pull the power supply tray out carefully not to pull on any of the wires in the back. 6.

  • Page 63: Replacing The Solid-State Relay

    Manual Modules Replacement VelaShape III Service 4.3.7. Replacing the Solid-State Relay In order to replace the solid-state relay, complete section 4.3.6 (Replacing the power supply). Figure 4-29: Solid-State Relay Cables 1. Tag the locations of each cable for easy connection. 2.

  • Page 64: Replacing The Vacuum Pump

    Modules Replacement Service Manual VelaShape III 4.4. Replacing the Vacuum Pump 1. Access the Power supply as shown in Replacing the power supply and unplug only the yellow stripe ground cable. 2. Access the vacuum pump panel on the opposite side of the system by opening its ten Philips screws (shown in Figure 4-31).
  • Page 65 Manual Modules Replacement VelaShape III Service 5. Disconnect just the grounding cable leading to the pump from the four grounding cables fastened to the frame as shown in Figure 4-33. Leave the other three grounding cables attached to the frame. Figure 4-33: Vacuum Pump Grounding Cable 4-25 PB81501LW...

  • Page 66: Accessing The Vacuum Pump Screws

    Modules Replacement Service Manual VelaShape III 4.4.1. Accessing the Vacuum Pump Screws In order to access the vacuum pump screws, the bottom frame of the system must be removed. 1. Lay the system gently on its back so you can access the bottom of the system. 2.

  • Page 67: Removing The Vacuum Pumps Omega Frame

    Manual Modules Replacement VelaShape III Service 4.4.2. Removing the Vacuum Pumps Omega Frame 1. Use and Allen wrench to open the four screws on both sides of the vacuum pump as shown in Figure 4-35. Figure 4-35: Omega Frame Screws 2.

  • Page 68: Completing Vacuum Pump Removal

    Modules Replacement Service Manual VelaShape III 3. Slide the omega frame to the back of the pump and remove as shown in Figure 4-37. Figure 4-37: Omega Frame Removal 4.4.3. Completing Vacuum Pump Removal 1. Push the O-ring in and pull the tube out on the quick connector for the air pump as shown in Figure 4-38.
  • Page 69 Manual Modules Replacement VelaShape III Service 2. List the system back up and release the four 7 mm nuts with their 3 mm Allen screws (shown in Figure 4-39) from under the system. Figure 4-39: Vacuum Pump Bolts & Screws 3.

  • Page 70: Replacing The Valve Assembly

    Modules Replacement Service Manual VelaShape III 4.5. Replacing the Valve Assembly In order to replace the valve assembly you must complete removing the air pump as shown in Replacing the vacuum pump. 1. Tag and remove all four slip shoe cables from the valve assembly. Figure 4-41: Valve Assembly Cables 2.

  • Page 71: Replacing The Canister

    Manual Modules Replacement VelaShape III Service 4.6. Replacing the Canister The canister regulates the vacuum pressure in the system and works like a vacuum buffer in order to ensure standard operation of the system. To replace the canister, proceed as follows: 1.

  • Page 72: Replacing The Wheels

    Modules Replacement Service Manual VelaShape III 4. Slide the canister out and disconnect the rear air tube from the quick connector in the back of the canister as shown in Figure 4-44. 5. Reverse steps one through four in order to replace the air canister. Figure 4-44: Canister Rear Connection 4.7.

  • Page 73: Replacing Pump Fans

    Manual Modules Replacement VelaShape III Service 4.8. Replacing Pump Fans In order to access the pump fans, you need to remove the rear cover as shown in Removing Lower Rear Cover. Figure 4-45: Pump Fans 1. Preform the steps detailed in Section 4.2.2. 2.

  • Page 74: Replacing The Service Panel

    Modules Replacement Service Manual VelaShape III 6. Use a 3 mm Allen screwdriver to loosen the screws on the pump fans. 7. When replacing a pump fan, make sure the replacement fan gets installed with the label facing down to ensure the proper air flow direction (there is a printed arrow on the side of the fan;...

  • Page 75: Replacing The Power Breaker & Inlet Unit

    Manual Modules Replacement VelaShape III Service 4.9.1. Replacing the Power Breaker & Inlet Unit Note The replacement unit is delivered without fuses; ensure that you have a new pair appropriate glass tube fuses (read the fuse rating on the existing fuses). 1.

  • Page 76: Replacing The Footswitch Port

    Modules Replacement Service Manual VelaShape III 4.9.2. Replacing the Footswitch Port Figure 4-50: Footswitch Port 1. Unscrew the black plastic nut from around the footswitch port. 2. Cut the tie-wraps that hold the footswitch cable in place. 3. Access the CPU as shown in section 4.3.5. 4.

  • Page 77: Replacing The Umbilical Port

    Manual Modules Replacement VelaShape III Service 4.9.3. Replacing the Umbilical Port Figure 4-52: Umbilical Port Screws 1. Remove the four Philips screws from the umbilical port. 2. Push in on the blue O-ring and pull the air tube from the quick connector to release the transparent tube as shown in Figure 4-53.

  • Page 78: 4.10. Replacing The Air Filter Assembly

    Modules Replacement Service Manual VelaShape III 4. Disconnect the red harness from the CPU as shown in Figure 4-54. 5. Cut the tie-wraps that secure the umbilical cables to the main cable group. 6. Reverse steps one through five in order to replace the umbilical port. Figure 4-54: Umbilical CPU Cables 4.10.
  • Page 79 Manual Modules Replacement VelaShape III Service Disconnecting the air pump tubes: Figure 4-56: Disconnecting the Air Pump Tubes 1. Push the black O-rings in to release the tubes and pull them from their places. 2. Unscrew the four Allen screws with their nuts to remove the air filter assembly from its place as shown in Figure 4-57.
  • Page 80 Modules Replacement Service Manual VelaShape III 4-40 PB81501LW...

  • Page 81: Maintenance And Calibrations Page

    Service Manual CHAPTER 5 Maintenance and Calibrations...
  • Page 82 Maintenance & Calibrations Service Manual VelaShape III Table of Contents Section Page 5.1. Calibration Tools ......................5-3 5.2. Overall Functional Tests ..................... 5-6 5.2.1. Prepare the System .................... 5-6 5.2.2. System Cooling Fan Test ................... 5-6 5.2.3. System and Applicator Functional Tests ............5-7 5.3.

  • Page 83: Calibration Tools

    Manual Maintenance & Calibrations VelaShape III Service 5.1. Calibration Tools Figure 5-1 displays most of tools required for proper calibration and testing of the VelaShape III system, followed by the names and purposes of each individual tool (refer to the tool number designations in Figure 5-1): Figure 5-1: Vela Vacuum &...
  • Page 84 Maintenance & Calibrations Service Manual VelaShape III 1. Digital display with quick-connect adapter. 2. Power supply for digital display. 3. Interface adapter and stopper for top vacuum port and dual-connector intake ports (2 units in kit). 4. Digital display interface adapter for system's vacuum pump. 5.
  • Page 85 Maintenance & Calibrations VelaShape III Service Several other tools are required and can be used from the Syneron Universal Power Meter Kit – P/N # AS4597(x), which includes the VelaShape III service software plug [AS7424(x)] for all operational modes: RF, IR and Vacuum.

  • Page 86: Overall Functional Tests

    Maintenance & Calibrations Service Manual VelaShape III 5.2. Overall Functional Tests The purpose of the following tests is to examine the overall functionality of the system and applicator. 5.2.1. Prepare the System 1. Connect the applicator (with a disposable cover attached) to the umbilical cable. 2.

  • Page 87: System And Applicator Functional Tests

    Manual Maintenance & Calibrations VelaShape III Service 5.2.3. System and Applicator Functional Tests The following will test the general operation of the system and applicator, and are to be performed in mode with the screen displayed: User Treatment 1. Initialization Test: when the system is powered on, ensure a single vacuum pulse is heard, and no error messages are displayed after system initialization has completed.
  • Page 88 Maintenance & Calibrations Service Manual VelaShape III Figure 5-4: Functional Tests PB81501LW...

  • Page 89: Vacuum Level And Leakage Tests

    Manual Maintenance & Calibrations VelaShape III Service 5.3. Vacuum Level and Leakage Tests This is a system-wide vacuum level and leakage test is designed for the VelaShape III system. Testing will be done in the following sequence (see Figure 5-5): •...

  • Page 90: Prepare The System

    Maintenance & Calibrations Service Manual VelaShape III 5.3.1. Prepare the System 1. Turn on the VelaShape III system. 2. Enter the screen by ‘pulling’ up the tab on the screen, and Utilities Options Treatment pressing the Utilities icon. 3. Login to the tab and enter the service password to access the Service Mode Test and...

  • Page 91: Absolute Vacuum Level Test: System, Umbilical And Applicator

    Manual Maintenance & Calibrations VelaShape III Service 5.3.2. Absolute Vacuum Level Test: System, Umbilical and Applicator 1. Take the applicator vacuum test cap (see # 5 or # 6 in Figure 5-1) and connect it to the face of the applicator (see Figure 5-8). Ensure that it is connected securely. Figure 5-8: VelaShape III Absolute Vacuum Level Test: Applicator (1) 2.

  • Page 92: Vacuum Leakage Test: System, Umbilical And Applicator

    Maintenance & Calibrations Service Manual VelaShape III 3. Refer to Figure 5-6: charge the vacuum system by first pressing the Pump button, then press the button, and finally press the button. Valve # 1 Valve # 2 4. Observe the vacuum reading on the digital display: the minimum reading should be -.550 (see Figure 5-10).

  • Page 93: Absolute Vacuum Level Test: System And Umbilical

    Manual Maintenance & Calibrations VelaShape III Service 5.3.4. Absolute Vacuum Level Test: System and Umbilical 1. Release the vacuum charge in the system by pressing the button (turning it off). Pump 2. Remove the applicator from the distal end of the umbilical by gently pulling it off. 3.

  • Page 94: Absolute Vacuum Level And Leakage Tests: System Only

    Maintenance & Calibrations Service Manual VelaShape III 5.3.6. Absolute Vacuum Level and Leakage Tests: System Only 1. Release the vacuum charge in the system by pressing the button (turning it off). Pump Refer to Figure 5-12: 2. Open the door to the system's service panel and disconnect the proximal end of the umbilical by pressing the quick-release button and pulling out the connector (view 3.

  • Page 95: Absolute Vacuum Level Test: Applicator With Cover

    Manual Maintenance & Calibrations VelaShape III Service 5.3.7. Absolute Vacuum Level Test: Applicator with Cover 1. Release the vacuum charge in the system by pressing the button (turning it off). Pump 2. Reconnect the umbilical and the applicator back to the system. Insert a functional cover on to the applicator.

  • Page 96: Rf Energy Verification Test

    Maintenance & Calibrations Service Manual VelaShape III 5.4. RF Energy Verification Test Refer to Figure 5-14: 1. Connect the large applicator adapter to the power meter display. 2. Insert the VelaShape III applicator adapter into the large applicator adapter as shown. Figure 5-14: VelaShape III RF Energy Verification (1) 3.
  • Page 97 Manual Maintenance & Calibrations VelaShape III Service Figure 5-15: VelaShape III Test and Calibration Screen 7. Insert the applicator's head (with disposable cover) on to the VelaShape III applicator adapter (see Figure 5-16). 8. Press the footswitch. 9. Press the trigger button and then press the button in the RF Energy box to emit an RF...

  • Page 98: Ir Thermometer Accuracy Verification Test

    Maintenance & Calibrations Service Manual VelaShape III 5.5. IR Thermometer Accuracy Verification Test The IR thermometer accuracy verification test and hotplate accessory are designed to check and verify that the radiant IR thermometer in the VelaShape III applicator accurately displays the temperature of the patient's skin during treatment.

  • Page 99: Electrical Frequency Setup

    Manual Maintenance & Calibrations VelaShape III Service 6. Observe the Treatment screen on the system's control panel (see Figure 5-18); the on- screen temperature indication should display with a tolerance of ± 2°C. 43°C Figure 5-18: VelaShape III Treatment Screen 5.6.
  • Page 100 Maintenance & Calibrations Service Manual VelaShape III 3. Press the Service Mode tab, and enter the appropriate password to access the Test and screen. Calibration 4. Select the desired operating frequency by pressing the 50Hz 60Hz button. 5. Press the Save button to save the operating frequency.

  • Page 101: Programming The System's Serial Number

    Manual Maintenance & Calibrations VelaShape III Service 5.7. Programming the System's Serial Number After replacing the system's CPU board (see Chapter 4), the system's serial number must be programmed in to its flash memory. Required Items: • Software USB flash drive [P/N # AS8669(x)] •...
  • Page 102 Maintenance & Calibrations Service Manual VelaShape III 2. Double-click on the file named "SerialNumber.txt"; the file will open in Notepad (see Figure 5-21). Figure 5-21: Programming the System's Serial Number (2) 3. Replace existing text on the first line with the numerical digits of the system serial number, excluding the first alpha character –...
  • Page 103 Manual Maintenance & Calibrations VelaShape III Service 7. Pull up the Options tab and press the Utilities button. Figure 5-23: Programming the System's Serial Number (4) 8. Press the Maintenance tab and then press the Host Upgrade button. Figure 5-24: Programming the System's Serial Number (5) 9.
  • Page 104 Maintenance & Calibrations Service Manual VelaShape III 10. An Alert pop-up message will appear while the software is being installed. This installation should take no more than 60 seconds. 11. Once the host software is reprogrammed, another Alert pop-up message will appear instructing you to remove the USB flash drive and restart the system.

  • Page 105: System Software Upgrade

    Manual Maintenance & Calibrations VelaShape III Service 5.8. System Software Upgrade The standard VelaShape III software upgrade package is delivered to you with a new applicator – pre-programmed at the factory with the latest applicator software – and a USB flash drive containing: •...
  • Page 106 Maintenance & Calibrations Service Manual VelaShape III 4. Pull up the Options tab, and press the Utilities button. 5. Make a note of the existing , the existing and the GUI S/W Version HC S/W Version existing HC S/W Version (see Figure 5-27).

  • Page 107: Upgrade The Host Software

    Manual Maintenance & Calibrations VelaShape III Service 5.8.2. Upgrade the Host Software 1. Press the tab and then press the button. Maintenance Host Upgrade Figure 5-29: System Software Upgrade (3) 2. A warning message will appear. Press the button; the host software installation will begin automatically.

  • Page 108: Upgrade The Gui Software

    Maintenance & Calibrations Service Manual VelaShape III Note If the Alert pop-up window does not appear, it is normal to see the system display turn off. If this happens wait 30 additional seconds for the system to automatically reset. If the system does not reset automatically, reboot the system by turning the main power switch (on the service panel) off then on again.
  • Page 109 Manual Maintenance & Calibrations VelaShape III Service 4. The GUI software installation will begin automatically. A file progress pop-up bar will fill as the software installation progresses; the installation takes about 30 seconds. Figure 5-31: System Software Upgrade (5) 5. Once the file has uploaded a pop-up window will appear; press the Install button.
  • Page 110 Utilities properly (see Figure 5-33). Figure 5-33: System Software Upgrade (7) 9. Return the old applicator and USB flash drive to Syneron as instructed by your regional service manager. 5-30 PB81501LW...
  • Page 111 Service Manual CHAPTER 6 Troubleshooting...
  • Page 112 Service Manual Troubleshooting VelaShape III Table of Contents Section Page 6.1. Introduction ......................... 6-3 6.1.1. Troubleshooting Guides ..................6-3 PB81501LW...

  • Page 113: Introduction

    Corrective and preventive maintenance must only be performed by a service engineer who has completed Syneron-certified service training on the VelaShape III system. Field calibrations and tests, and the special tools required are discussed in detail in Chapter 5 –...
  • Page 114 Service Manual Troubleshooting VelaShape III Table 6-1: System Errors Shown on System Display Displayed Message Probable Cause Corrective Action 1. Verify proper insertion of disposable cover. 2. Verify there is enough VelaSpray Ease on the treatment area, improving the vacuum seal. 3.
  • Page 115 Troubleshooting Service Manual VelaShape III Table 6-1: System Errors Shown on System Display (continued) Message Probable Cause Corrective Action 1. Ensure the umbilical is fully inserted into applicator, and restart the system. 2. Disconnect & reconnect applicator from the umbilical, and restart the system.
  • Page 116 Service Manual Troubleshooting VelaShape III Table 6-2: System Errors with No Displayed Messages Phase/Error Probable Cause Corrective Actions 1. Restart system. 2. Turn system off, disconnect & reconnect applicator, and restart 1. Software was not properly loaded into system. applicator controller. Applicator Display does not turn 3.

  • Page 117: Spare Parts And Special Tools Page

    Service Manual CHAPTER 7 Spare Parts and Special Tools...
  • Page 118 Service Manual Spare Parts and Special Tools VelaShape III Table of Contents Section Page 7.1. Introduction ......................... 7-3 7.2. Spare Parts Catalog ....................7-3 7.3. Special Tools List ......................7-4 7.4. Spare Parts Illustrations ....................7-4 PB81501LW...

  • Page 119: Spare Parts Catalog

    Part # from Syneron. A list of special tools follows the spare parts catalog table; it displays the tools specially designed by Syneron to assist in the service of the VelaShape III system, and their part numbers. 7.2. Spare Parts Catalog...

  • Page 120: Special Tools List

    Service Manual Spare Parts and Special Tools VelaShape III Item # Figure # Part Description Part # Chassis base MP9005(x) Front bezel MP9006(x) Front decorative bar MP9007(x) Front upper panel MP9008(x) Front lower panel MP9009(x) Figure 7-3 Rear upper panel MP9010(x) Rear handle MP9011(x)
  • Page 121 Spare Parts and Special Tools Service Manual VelaShape III Figure 7-1: Spare Parts Illustration # 1 PB81501LW...
  • Page 122 Service Manual Spare Parts and Special Tools VelaShape III Figure 7-2: Spare Parts Illustration # 2 PB81501LW...
  • Page 123 Spare Parts and Special Tools Service Manual VelaShape III Figure 7-3: Spare Parts Illustration # 3 PB81501LW...
  • Page 124 Service Manual Spare Parts and Special Tools VelaShape III Figure 7-4: Spare Parts Illustration # 4 PB81501LW...
  • Page 125 Spare Parts and Special Tools Service Manual VelaShape III Figure 7-5: Spare Parts Illustration # 5 PB81501LW...
  • Page 126 Service Manual Spare Parts and Special Tools VelaShape III Figure 7-6: Spare Parts Illustration # 6 Does not include attached hardware. 7-10 PB81501LW...
  • Page 127 Spare Parts and Special Tools Service Manual VelaShape III Figure 7-7: Spare Parts Illustration # 7 7-11 PB81501LW...
  • Page 128 Service Manual Spare Parts and Special Tools VelaShape III Figure 7-8: Vela Vacuum & IR Lamp Toolkit Refer to Chapter 5 for a complete discussion of the kit's contents. 7-12 PB81501LW...
  • Page 129 Spare Parts and Special Tools Service Manual VelaShape III Figure 7-9: Universal Power Meter Kit Refer to Chapter 5 for a complete discussion of the kit's contents. 7-13 PB81501LW...
  • Page 130 Service Manual Spare Parts and Special Tools VelaShape III 7-14 PB81501LW...
