DynaMetric C Series Instructions

Telephone recorder patch with beeps and 15db audio gain

Advertisement

Instructions
*TLP-107SY Telephone Recorder Patch with Beeps
and 15db Audio Gain P/N 44160-1 C Series

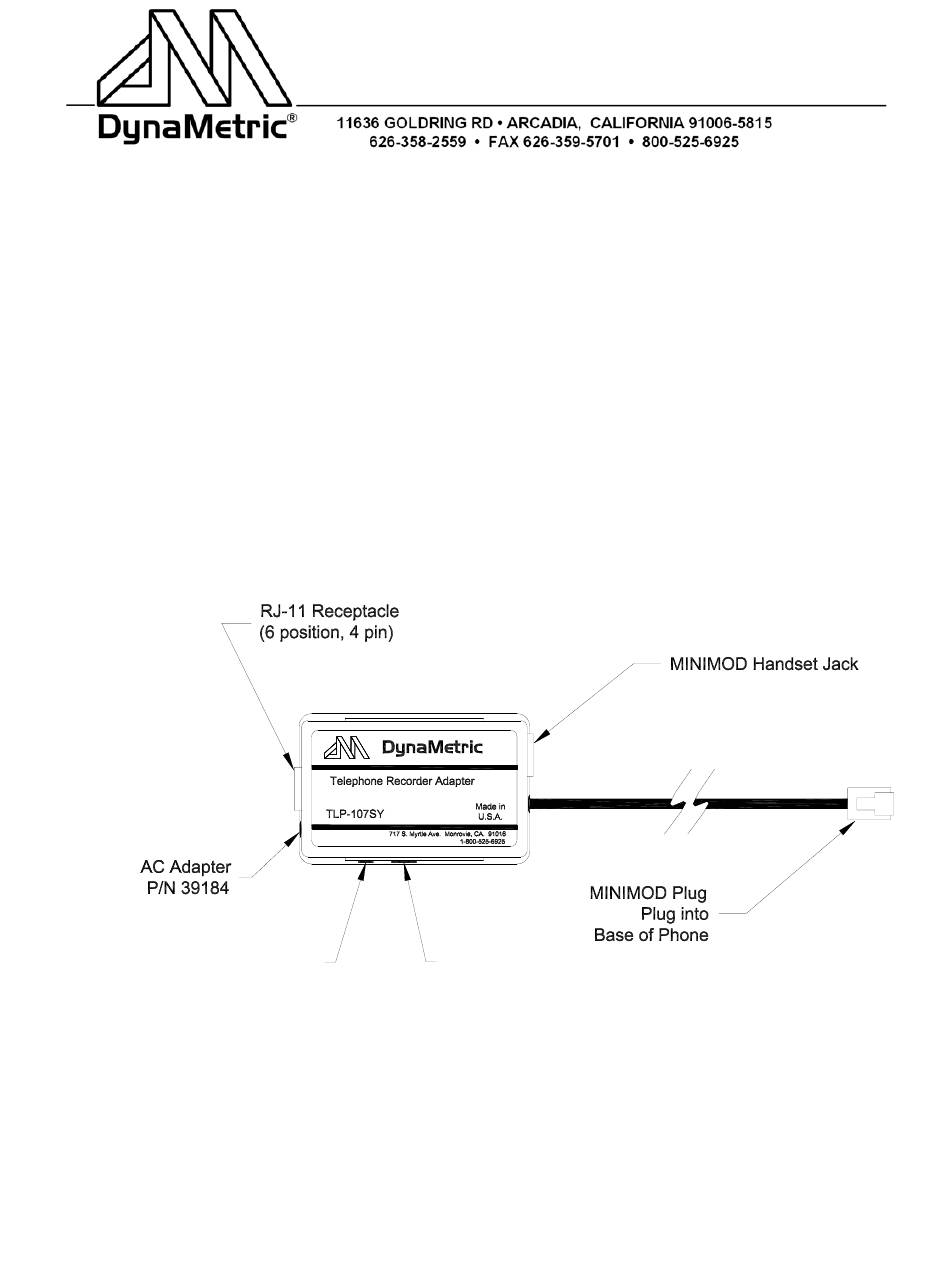

The TLP-107SY provides an analog audio connection to loggers from telephones that
have modular connected handsets. The TLP-107SY provides a clear recording of both
sides of your conversation from almost all telephones whether they are digital or analog.
This unit provides 15db amplification of the audio signal to the recorder for those
recorders that use VOX Control rather than Automatic Gain Control.
The TLP-107SY injects a short beep at approximately 15 second intervals onto the
phone line. The beep is audible in the earphones of all phones connected to the
conversation and is recorded. Beep volume is adjusted using a small screwdriver
through the hole in the bottom of the unit, and may be stopped by turning the volume
control to minimum. The unit is powered by a 6VDC AC adapter supplied with each unit.
Beep Volume Adjust
Polarity Switch
(Hole in Bottom)
(Factory Set)
*Also for: TLP-107SYE
FOR LEGAL USE ONLY
3-20-08
www.DynaMetric.com
Page 1 of 2
©DynaMetric 2001 Doc 43683
