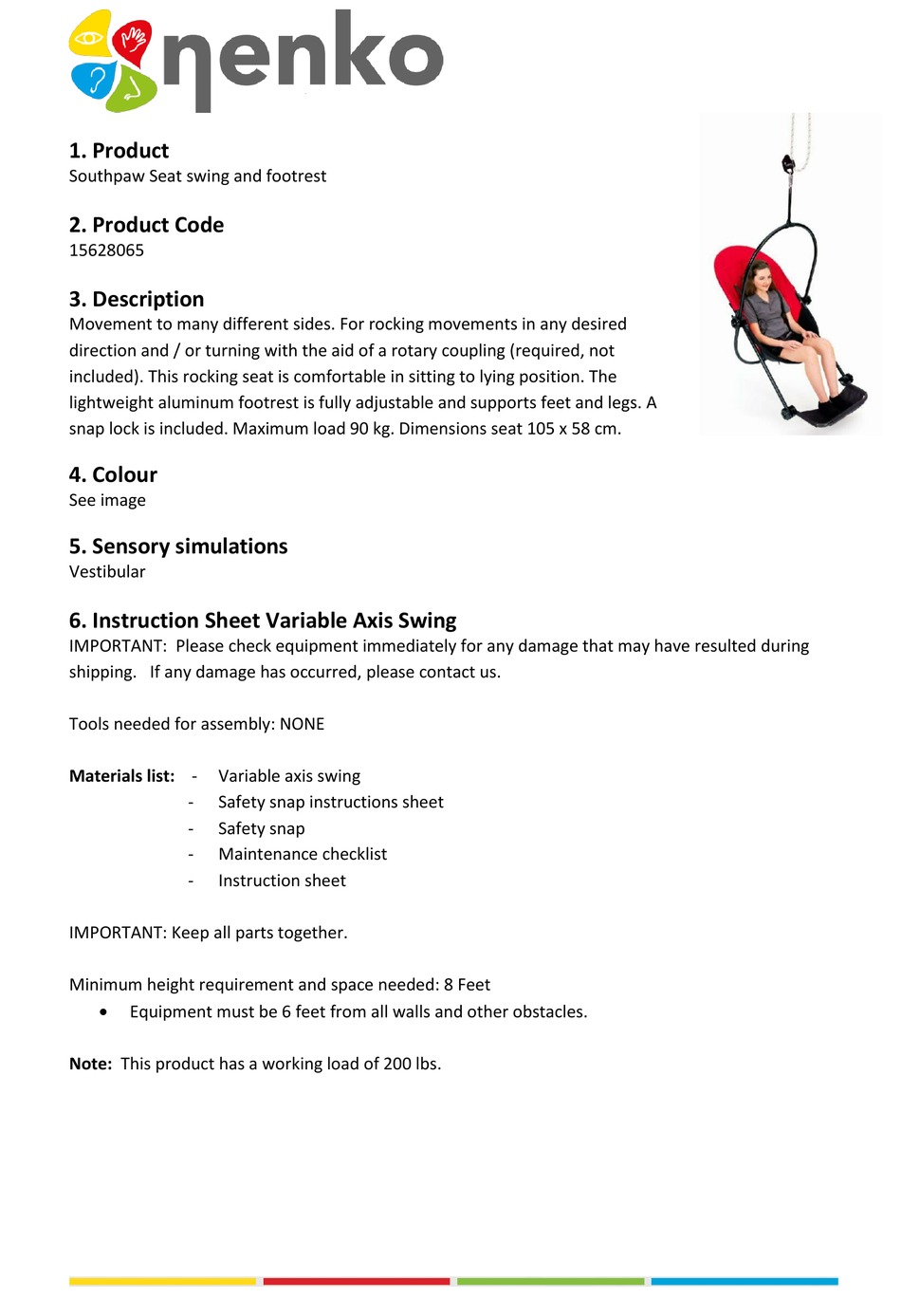

1. Product

Southpaw Seat swing and footrest

2. Product Code

15628065

3. Description

Movement to many different sides. For rocking movements in any desired
direction and / or turning with the aid of a rotary coupling (required, not
included). This rocking seat is comfortable in sitting to lying position. The
lightweight aluminum footrest is fully adjustable and supports feet and legs. A
snap lock is included. Maximum load 90 kg. Dimensions seat 105 x 58 cm.

4. Colour

See image

5. Sensory simulations

Vestibular

6. Instruction Sheet Variable Axis Swing

IMPORTANT: Please check equipment immediately for any damage that may have resulted during
shipping. If any damage has occurred, please contact us.
Tools needed for assembly: NONE
Materials list: -
Variable axis swing
-
Safety snap instructions sheet
-
Safety snap
-
-
Instruction sheet
IMPORTANT: Keep all parts together.
Minimum height requirement and space needed: 8 Feet
Equipment must be 6 feet from all walls and other obstacles.
Note: This product has a working load of 200 lbs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15628065 and is the answer not in the manual?

Questions and answers

Related Manuals for southpaw enterprises 15628065

Summary of Contents for southpaw enterprises 15628065

  • Page 1 1. Product Southpaw Seat swing and footrest 2. Product Code 15628065 3. Description Movement to many different sides. For rocking movements in any desired direction and / or turning with the aid of a rotary coupling (required, not included). This rocking seat is comfortable in sitting to lying position. The lightweight aluminum footrest is fully adjustable and supports feet and legs.
  • Page 2 A Southpaw Height Adjustor (5000) may be needed to adjust your equipment to the correct height for your client. With all Southpaw Enterprises, Inc. Suspended Equipment, a Southpaw Safety Rotational Device (2000) must be used to prevent damage to your equipment, except where specified otherwise.
  • Page 3 Warning: Check ceiling eye bolt for wear and movement. Use a Southpaw Safety Rotational Device to prevent abnormal wear. Floor mats of proper thickness should be positioned appropriately under and around Note: When replacing Safety Snaps or Rotational Devices due to normal wear use only Southpaw replacements.
  • Page 4 7. Instruction Sheet Variable Axis Swing Footrest Materials list: - Variable Axis Swing Footrest Instruction Sheet Maintenance Checklist Attaching the footrest • With your Variable Axis Swing empty, tilt the seat back until it is parallel with the floor. • Remove the rubber end caps from the long straight tubes of the footrest. These will be replaced later.
  • Page 5 Storage procedures • Store out of direct sunlight. • Store where not accessible by client without proper supervision Cleaning instructions Check with your infectious disease department before using these procedures. • Check for client allergies first. • Cover is machine washable - cold water, mild detergent. •...
