The K-4xx and K-8xx series AC power strips provide multiple switched outlets that can be remotely controlled
from one of Dataprobe's many remote control systems or from any device providing a contact closure. The
following models are covered in this manual.
K-820
8 switched outlets, for use on 115 VAC, 20 Amp Service – NEMA N5-20
K-420
4 switched outlets, for use on 115 VAC, 20 Amp Service – NEMA N5-20
K-815
8 switched outlets, for use on 115 VAC, 15 Amp Service – NEMA N5-15
K-415
4 switched outlets, for use on 115 VAC, 15 Amp Service – NEMA N5-15
K-810
8 switched outlets, for use on 115/230 VAC, 12 /10 Amp International – IEC 320
K-410
4 switched outlets, for use on 115/230 VAC, 12 /10 Amp International – IEC 320
Throughout this manual the K-815 will be used to represent for all units, except where a distinct
reference is made.
115/230VAC
Selector Switch
On Side
REF: PWR\K8xx_UL_V020523D.DOC
1 2 3 4 5 6 7 8
Power
1 2 3 4
Power
Technical Support Hotline: (201) 934-5111
Technical Support: 201-934-5111
Main: 201-934-9944

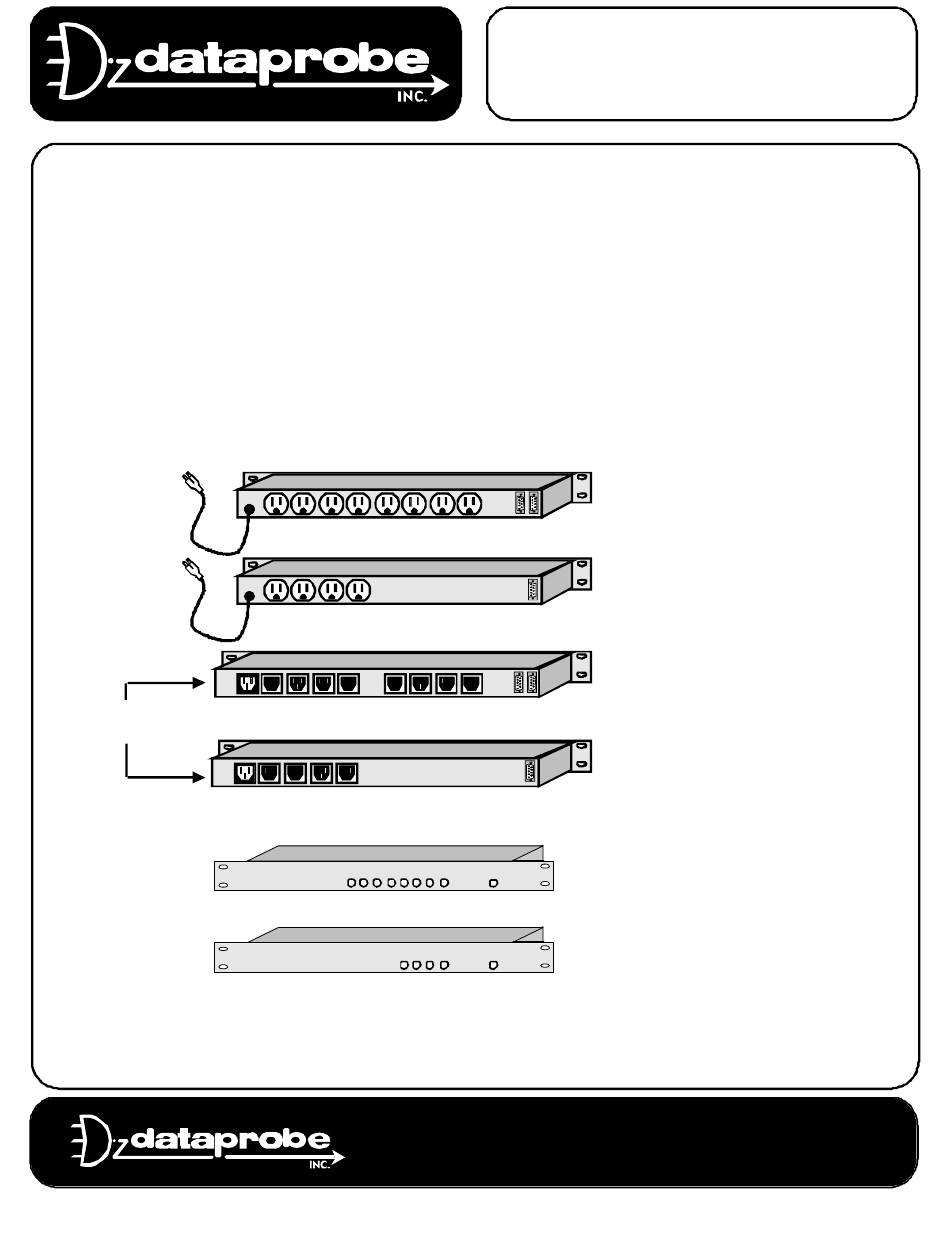

Remote Control Power Strip
Models K-820, K-815, K-810
K-420, K-415 & K-410
K-820 & K-815, 115VAC
8 NEMA Outlets Switched
K-420 & K-415, 115VAC
4 NEMA Outlets Switched
K-810 , 115 / 230 VAC
8 IEC 320 Outlets Switched
K-410 , 115 / 230 VAC
4 IEC 320 Outlets Switched

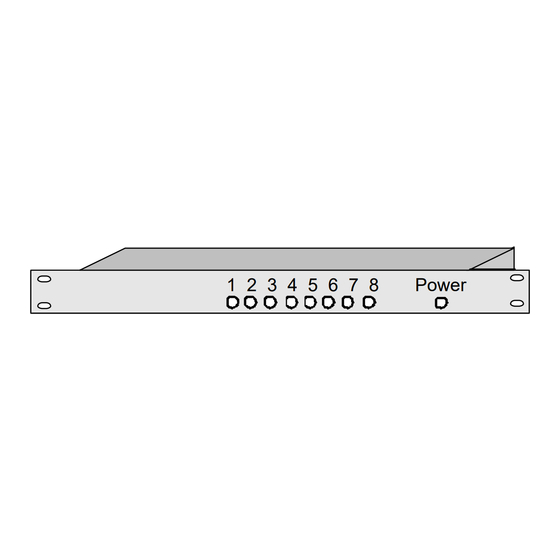

Front Panel
All 8 Outlet Versions
Outlet Status and Power Input Status LEDs
Front Panel
All 4 Outlet Versions
Outlet Status and Power Input Status LEDs
