Summary of Contents for AES 8Streme 7310

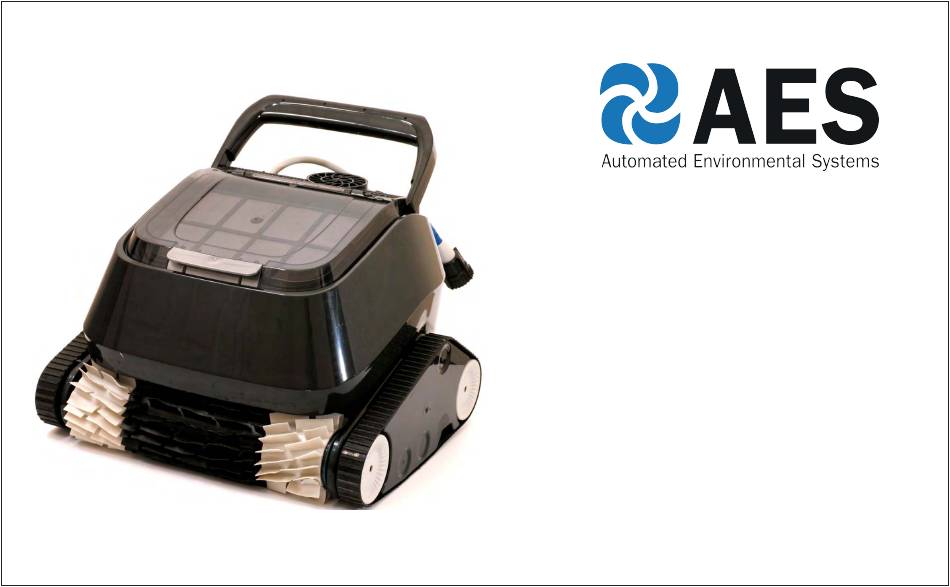

Page 1 Unit 1, 1 Wimbledon Avenue, Brandon Suffolk, IP27 0NZ, 01842 819130 sales@automatedenvironmentalsystems.co.uk I I n n s s t t r r u u c c t t i i o o n m n ma a n n u u a a l l 7310...
Page 2 Congratulations on the purchase of your new Robotic Pool Cleaner by 8Streme. This is a powerful autonomous cleaner arrives to Unit 1, 1 Wimbledon Avenue, Brandon Suffolk, IP27 0NZ, 01842 819130 you ready to plug in and play. Great for pools of any sales@automatedenvironmentalsystems.co.uk shape.
Page 3 1.Product Specifications Maximum Depth: 2.5m / 8ft Maximum Pool Size: 10m x 5m / 33ft x 17 ft Power supply input: 100-130V AC / 200- 230V AC Power supply output: <24VDC Unit 1, 1 Wimbledon Avenue, Brandon 2.!!Warnings!! Suffolk, IP27 0NZ, 01842 819130 2.1 Please review your local pool safety regulations sales@automatedenvironmentalsystems.co.uk...
Page 4 4. Getting Started *Your cleaner comes to you fully assembled in the package. * 1. Place your power supply about approximately at the middle point between both ends of your pool and a few meters/feet away from the edge of the pool. (Fig 4.1) 2.
Page 5 5. Cleaning the filter basket 1. Open the cover on the top of the cleaner to access the filter basket (Fig 5.1). Unit 1, 1 Wimbledon Avenue, Brandon 2. Use both hands to lift up the basket Suffolk, IP27 0NZ, 01842 819130 using the handles at the side of the basket (Fig 5.2).
Page 6 6. Troubleshooting Symptom Possible reason(s) Solution(s) No/not enough power is going to Unplug power supply and take robot out of water. Open basket Pump is running but robot cover and remove basket. Check that there no foreign object in robot is not moving An object is blocking robot's the impeller.
Page 7 Unit 1, 1 Wimbledon Avenue, Brandon Suffolk, IP27 0NZ, 01842 819130 sales@automatedenvironmentalsystems.co.uk...
Page 8 Part description Item Part number 71000 Top shell. Dark grey Debris basket assembly 71010 (parts 16 and 17 included) 71020 Top lid. Smoke Impeller 71040 71050 Pump motor block Pump cover lid. Black 71070 71080 Handle. Black Geared roller tube assembly. 71090 Black 71100...
