SEP E
Fuse replacement
Remove the four screws at the end with the
Micro USB socket.
Remove the plastic end panel.
nErgymEtEr
SEP 044
Half unscrew the top two screws
at the end without the Micro USB
socket. Removing them half way will
allow the main panel to slide out.
Slide the main panel out of the housing.
Advertisement

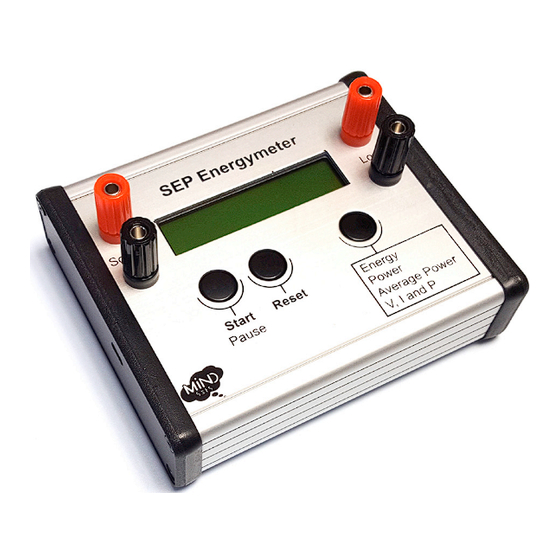

Summary of Contents for Mindsets SEP Energymeter

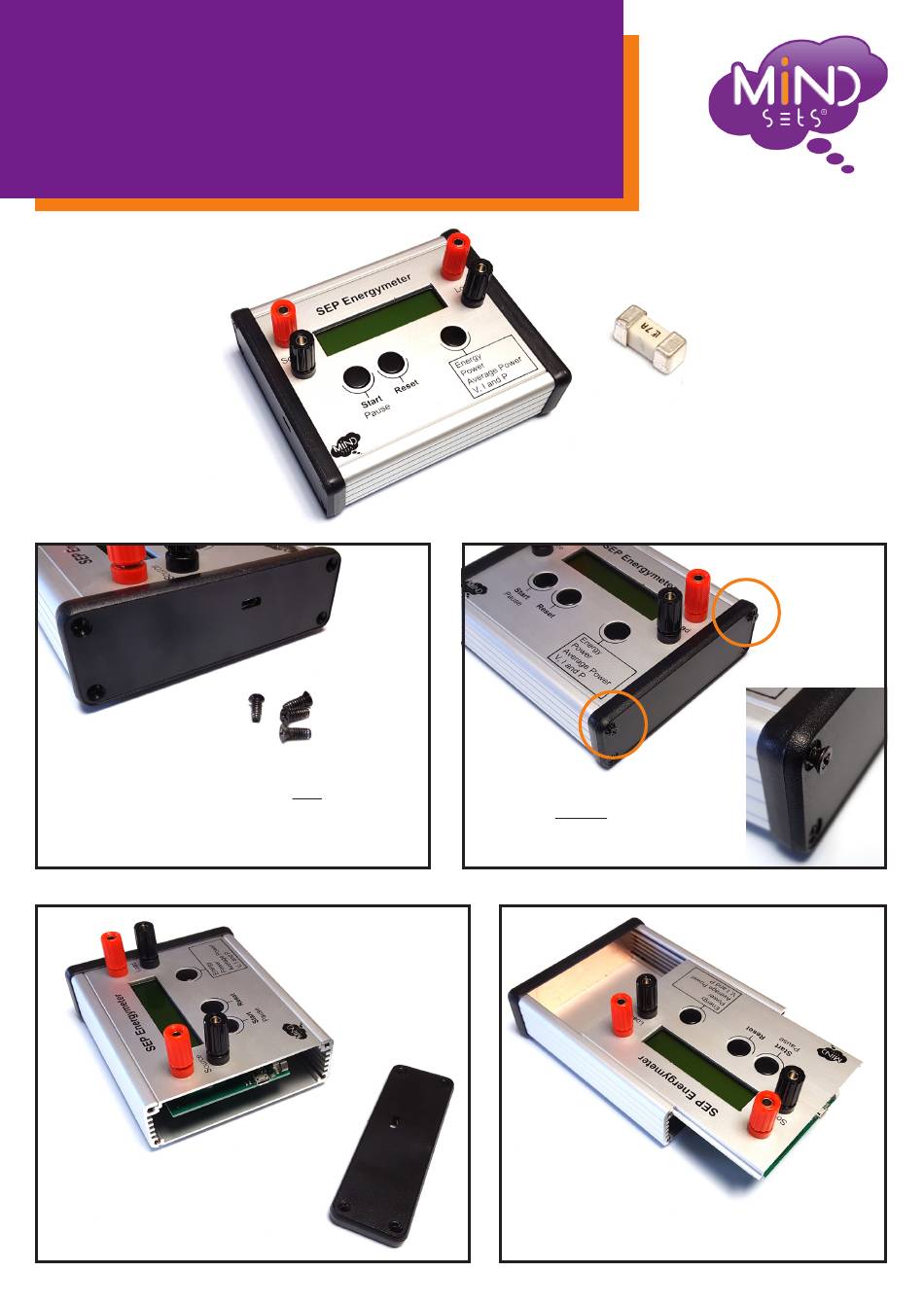

- Page 1 SEP E nErgymEtEr SEP 044 Fuse replacement Remove the four screws at the end with the Half unscrew the top two screws Micro USB socket. at the end without the Micro USB socket. Removing them half way will allow the main panel to slide out. Remove the plastic end panel.
- Page 2 Undo the four steel nuts securing the Circuit board to the metal panel. Note the four washers on the terminal posts. Take care not to lose these. Locate the fuse on the front of the circuit board (circled here in orange). Using a small flat-tip screwdriver or similar;...
- Page 3 Place the circuit board back onto Slide this assembly back into the casing. the four terminal posts and tighten Make sue the upper-most slots are used the four steel nuts to secure. (shown in the orange circle). Make sure this main plate slides all the way in so that the ends are...
