Document 031734-1/Revision A
5.18.5 Cooling Blower
The Searchlight will rapidly overheat without the blower operating potentially damaging the entire
Searchlight. Operation of the Searchlight without the blower should only be considered in critical
emergency situations. Even then, operation should be limited to 60 seconds at a time within a 10
minute period. Even with this limited duty cycle, the Searchlight probably will suffer internal damage,
which can be very expensive to repair. In a life critical emergency, the choice to operate the
Searchlight is a choice that the operating crew must make.
Reliable operation of the blower is vital to the performance and service life of
the Searchlight. If the blower does not operate, it must be repaired or replaced
immediately.
5.18.5.1
Audible Inspection (Daily)
Conduct daily inspections of the blower while the Searchlight is completely assembled and installed
on the aircraft.
•
The aircraft engine should not be running during the inspection so that you can hear the
blower. Instead, operate the blower using the aircraft battery or a quiet auxiliary power unit
(APU).
•
Place the Start/On/Off switch in the On position to turn on the Searchlight blower.
The blower should start rapidly and run smoothly. It should come up to full speed
o
within 2 seconds and sound smooth and even. Let the fan run for 10 to 15 seconds to
be sure that it runs smoothly.
If the blower takes longer than 2 seconds to run at full speed, either the wiring or the
o
blower itself may be faulty and must be checked.
Any change or unevenness in the tone or pitch of the blower may indicate bad
o
bearings or brushes. If the blower does not operate smoothly, it must be removed
and replaced.
•
Turn the Start/On/Off switch to the Off position. The blower should coast smoothly to a stop in
a few seconds.
5.18.5.2
Removal of the Rear Cover
Place the Searchlight on a workbench during this procedure for ease of blower removal and
replacement.
•
If the Searchlight must remain on the aircraft, place the Searchlight in a horizontal position,
and remove the power cable.
•
If the Searchlight will be on a workbench, clean the top of the workbench, and place a soft
material on top of the bench. Position the Searchlight so that it rests on the window
assembly. The rear cover should be approximately at shoulder height. Remove the power
cable.
Source: Spectrolab, Inc.
The document reference is online, please check the correspondence between the online documentation and the printed version.

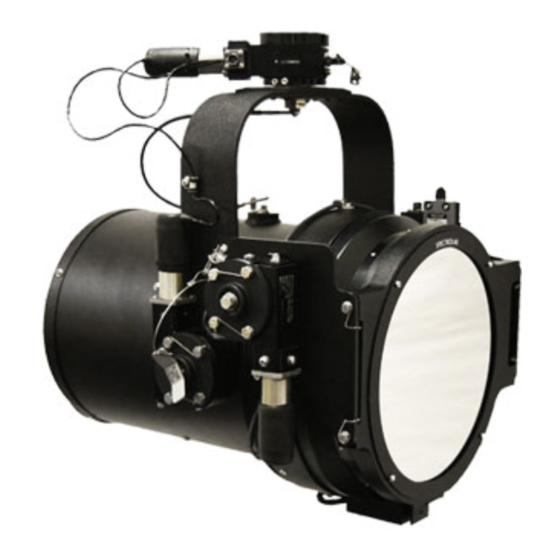

SX-16 Nightsun

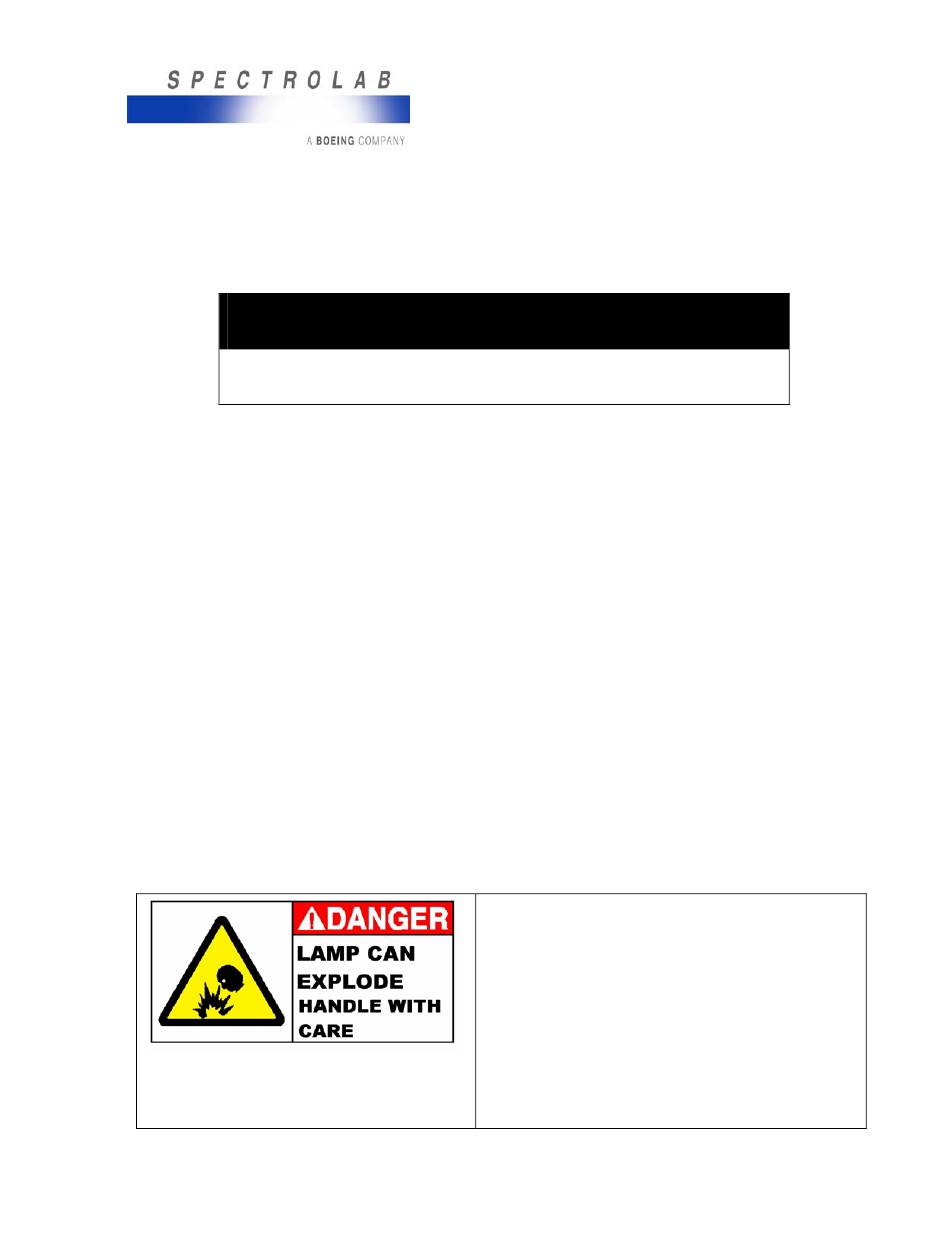

NOTICE
DANGER!
The arc lamp contains pressurized xenon gas at
approximately 85 to 90 psi at room temperature and
up to 370 psi at full operating temperature.
If the lamp is mishandled, it can explode and send
hot, sharp shards of quartz at high-speed in every
direction. These shards can cause serious bodily
injury.
To reduce the risk of serious injury:
•
Remove power from the Searchlight so it
cannot be turned on during maintenance with
front glass removed.
84
®
Searchlight System
Maintenance Manual
031734-1 Revision B
January 27, 2014
