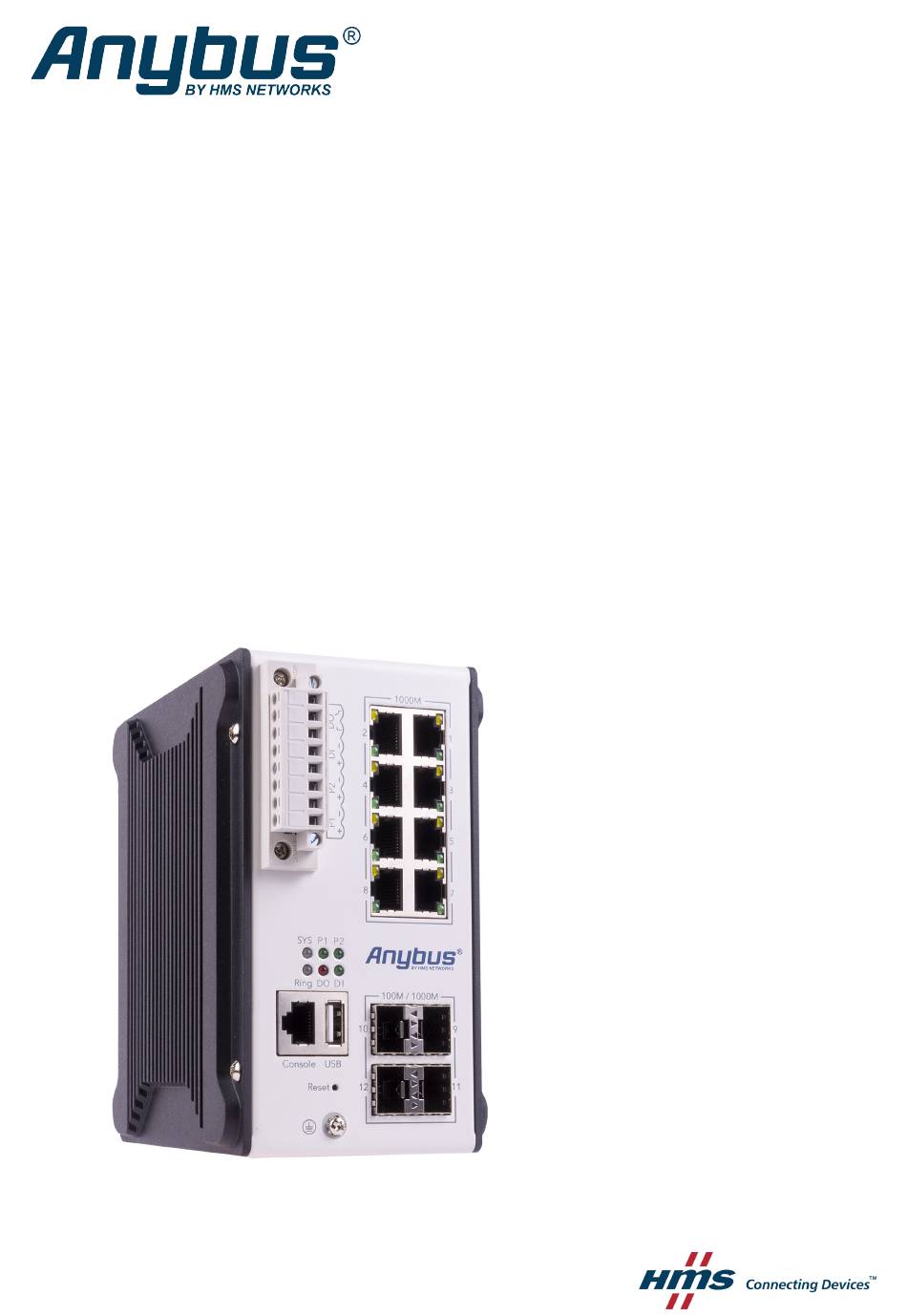

  • Page 1 ® Anybus Managed Industrial L3 Switch USER MANUAL SCM-1202-151 1.1 en-US ENGLISH...
  • Page 2 The effects caused by any direct or indirect use of such aspects of the product are undefined and may include e.g. compatibility issues and stability issues. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 3: Table Of Contents

    Installing Terminal Block....................10 Connecting Digital Output Wires..................11 Connecting Digital Input Wires ..................12 Connecting Power Wires ....................13 Connecting to Ethernet Network ..................14 Connecting to Fiber Network ................... 14 ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 4 Reset To Default ......................111 Factory Reset Button ....................112 Technical Data ......................... 113 Technical Specifications....................113 About DHCP Option 82 ....................115 About Port Trunk......................116 Port Trunk Concept ...................... 116 ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 5 About Ethernet Ring Protection Switching (ERPS) ............120 About Virtual Local Area Network (VLAN)..............121 G About Open Shortest Path First (OSPF)................122 H About Simple Network Management Protocol (SNMP)..........123 ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 6 This page intentionally left blank...

  • Page 7: Preface

    Preface 5 (124) Preface About This Document This manual describes the installation and configuration of Anybus Managed Industrial L3 Switch. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document Conventions Numbered lists indicate tasks that should be carried out in sequence:...

  • Page 8: Safety

    Connecting power with reverse polarity or using the wrong type of power supply may damage the equipment. Make sure that the power supply is connected correctly and of the recommended type. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 9: Preparation

    Support and Resources For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Have the product article number available, to search for the specific product page. You find the product article number on the product cover.

  • Page 10: Installation

    Mount the switch on a DIN rail: Insert the upper end of the DIN rail clip into the DIN rail. Push the bottom of the DIN rail clip into the DIN rail. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 11: Connecting Ground Screw

    Connecting Ground Screw To avoid system damage, the equipment should be connected to ground. Procedure Establish a direct connection between the ground screw and the grounding surface prior to connecting devices. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 12: Terminal Block Connector

    P1, Power Input 1 – P1, Power Input 1 + Installing Terminal Block Procedure Attach the terminal block to the contact on the switch. Fasten the terminal block with the 2 screws included. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 13: Connecting Digital Output Wires

    The fault circuit remains opened until a user-configured event occur. Procedure Connect the Digital Output (DO): Insert the wires into the 2 pin DO contact on the 8 pin terminal block. Tighten the wire-clamp screws. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 14: Connecting Digital Input Wires

    Procedure Connect the Digital Input (DI): Insert the wires into the 2 pin DI - and DI + contact on the 8 pin terminal block. Tighten the wire-clamp screws. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 15: Connecting Power Wires

    Connecting to redundant power supply P2: Insert the positive and negative wires into the P2+ and P2- contact on the 8 pin terminal block. Tighten the wire-clamp screws. Connect the power wires to a DC switching type power supply. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 16: Connecting To Ethernet Network

    14 (124) Connecting to Ethernet Network Optional Connect the switch to an Ethernet network. Connecting to Fiber Network Optional Connect the switch to a network via the SFP port. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 17: Before You Begin Configuration

    The web-based management interface login screen appears. In the login screen, enter user name and password. Click OK. → The web-based management interface welcome page appears. To Do Next Configure the switch. ► ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 18: Web Interface Overview

    The recent changes will otherwise be discarded if the switch is rebooted. 5.3.2 To Logout From the Web Interface To manually logout from the system: In the web interface top menu, click Logout. To confirm, click Yes. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 19: System Information

    Default: blank Switch Object ID. System Description Product name Software Version Latest installed firmware version. MAC Address MAC address of the Ethernet network interface To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 20: User Account

    The default authority allows the user to configure all configuration parameters. For security consideration, please change the password after first login to the web interface. The default switch login user name is admin and the password is admin. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 21 New Password Default: admin Enter a new password here. Confirm Re-enter the new password to confirm it. Password To apply the settings, click Submit. To cancel the changes, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 22 If applicable, enter the Server port. Set communication port of an external RADIUS server as the authentication database. By default, the RADIUS server listens to port 1812. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 23: Ip Settings

    Assign the gateway for the switch here. DNS Server 1 Specifies the IP address of the DNS server 1 and 2 used in user network. DNS Server 2 To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 24 16 bits (two octets). • The groups are separated by colons. • The length of an IPv6 address is 128 bits. • IPv6 address, example: fe80::212:77ff:feff:1acb/64. IPv6 Setting Fig. 6 IPv6 Setting ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 25 The IPv6 neighbor table includes the neighboring node IPv6 address, Interface, MAC Address, and the current state of the entry. The system will update Neighbor Cache automatically. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 26: Date And Time

    Daylight Saving Start When Daylight Saving Time is Enabled, set the Start and End time. Daylight Saving End To apply the settings, click Submit. To cancel the changes, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 27 Set the clock priority 1 (PTP version 2). The lower values take precedence to be selected as the master clock in the best master clock algorithm, 0 = highest priority, 255 = lowest priority. Default: 128 ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 28: Dhcp Server

    P2P: The peer-to-peer mechanism used in the boundary clock mode. Default: E2E To apply the settings, click Submit. DHCP Server 5.8.1 DHCP Server Setting Fig. 9 DHCP Server Setting ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 29 Configure the Excluded Address settings: Excluded Address List Enter a IP address and click Add. To remove an IP address from the list, click Remove. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 30 The IP address that will assign to the device with the Binding MAC address. Enter the IP address and click Add. To remove a binding rule from the list, click Remove. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 31 IP Address Enter the IP address that will assign to the device with the Binding MAC address. Click Add. To remove a binding rule from the list, click Remove. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 32 The DHCP packets from client will be modified by the policy and forwarded to DHCP server through the gateway port. Helper Address Enter a DHCP Server IP address and click Add. To remove a binding rule from the list, select the checkbox and click Remove. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 33 Keeps the original option 82 field and forwards to server. Drop Drops the option 82 field and do not add any option 82 field. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 34 The first byte is "00", the second and the third byte "01-00" is formed by the port VLAN ID, and the last byte "01" is formed by the port number. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 35 The MAC address of the relay agent. • A combination of IP address and MAC address of the relay agent. • A user-defined string. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 36 IP address that was assigned by switch. MAC Address MAC address that was assigned by switch. Leased Time Remains Remains time for the IP address leased To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 37: Ethernet Port

    Disable: The flow control of the corresponding port on the switch will work automatically. Default: Disable Description The description of the interface. To apply the settings, click Submit. To cancel the changes, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 38 SFP module via SFP DDM section. The real-time diagnostic parameters can be monitored to alert the system when the transceiver specified operating limits are exceeded and compliance cannot be ensured. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 39 Group ID is the ID for the port trunk group. Ports with same group ID are in the same group. Default: 0 Type Static and LACP. Each Trunk Group can only support Static or LACP. Default: Blank ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 40 Load distribution is based on the destination IP address. src-dst-ip Load distribution is based on the source and destination IP address. To apply the settings, click Submit. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 41 Link Down Ports When LACP is enabled, member ports of LACP group which are not linked up are shown in the Link Down column. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 42 Default value, Egress rule: 0 kbps (0 stands for disabling the rate control for the port.) Valid values are increments of 64 kbps from 64-1 000 000 kbps. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 43 Set enable to control Destination Lookup Failure packets. Default: Disable Multicast Set enable to control Multicast Packets. Default: Disable Rate(Packet/Sec) Rate limit value 0-262142 packet/sec. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 44 Enter the size of the Maximum Transmission Unit (MTU). The default value is 1,518 bytes. The maximum Jumbo Frame size is 9,216 bytes. To apply the settings, click Submit. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 45 Customer Domain: Largest • Provider Domain: In between (e.g., 3) • Operator Domain: Smallest Domain Name Enter a Domain Name. Maximum: 43 characters To add the settings, click Add. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 46 To add the settings, click Add. Domain Table Fig. 27 Domain Table The Domain Table shows the Domain entry. To remove the list, click Remove Selected. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 47 To remove the list, select the list and click Remove Selected. Endpoint Table Fig. 29 Endpoint Table View the endpoint entry. To remove the list, select the list and click Remove Selected. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 48: Redundancy

    This is the convenient of the GUI design. When you configure the value through the CLI or SNMP, you may need to type the value directly. Follow the n x 4096 rules for the Bridge Priority. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 49 Enter a value between 4 and 30 seconds. This value is the time that a port waits before changing Time from Spanning Tree Protocol learning and listening states to forwarding state. To apply the settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 50 BPDU Guard is used to protect the Layer 2 Spanning Tree Protocol (STP) Topology from BPDU related attacks. Enable or Disable the BPDU Guard function. To apply the settings, click Submit. To cancel settings, click Cancel ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 51 Forward Delay of BPDU sent from the root switch. Port Status View the port Role, Port State, Path Cost, Port Priority, Link Type, Edge Port and Aggregated (ID/ Type). To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 52 The name for the Region. Maximum length: 32 characters. Revision The revision for the Region. Range: 0-65535 Default: 0 To apply the settings, click Submit. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 53 Enabled MSTP and linked up ports within the instance are listed in the Instance ID table. The ports that do not belong to the Instance, or the ports not MSTP activated are not shown. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 54 When the non-bridge device connects an admin edge port, this port will be in blocking state and turn to forwarding state in 4 seconds. To apply the settings, click Submit. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 55 Forward Delay of BPDU sent from the root switch based on the Instance ID. Port Status View Port, Role, Port State, Path Cost, Port Priority, Link Type and the Edge Port within the instance. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 56 Map the VLAN to Instance. Instance ID Select the Instance ID and click Add. The available number is 1-15. VLAN Group Type the VLAN ID that user wants mapping to the instance. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 57 To apply the settings, click Submit. To delete a ring, select the ring and click Remove Selected. To clear settings, select the ring and click Clear Selected. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 58 The period of the WTR time can be configured by the operator in 1 minute steps between 1 and 12 minutes with a default value of 5 minutes. To apply the settings, click Submit. To cancel settings, click Cancel. 5.10.4 ERPS Status Fig. 38 ERPS Status ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 59 Remaining WTB timeout in milliseconds. (ms) Running or not Running status Guard Timer State Guard Timer Period Guard Timer timeout in milliseconds. (ms) Guard Timer Remain Remaining Guard Timer timeout in milliseconds. (ms) ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 60: Vlan

    Remember that the port attached by the administrator should be the member port of the management VLAN; otherwise the administrator can not access the switch via the network. The switch supports max 256 VLAN groups. Fig. 39 VLAN Setting ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 61 Assign the Egress rule of the ports to U or T. To apply the settings, click Submit. To delete a ring, select the ring and click Remove Selected. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 62 802.1Q Tunnel Uplink: As the egress port, that is, the middle switch port. Configures Q in Q tunneling for an uplink port to another device within the service provider network. • 802.1Q Tunnel Uplink-Add-PVID: Assign second VLAN tag for specify VLANs. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 63 Static: Shows that this is a manually configured static VLAN. This VLAN is not workable yet. Dynamic: The VLAN is learnt by GVRP. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 64 Enter the VLAN ID and the Private VLAN Type for each VLAN you want to configure. To apply the settings, click Submit. 5.11.5 PVLAN Port Setting Port Configuration Fig. 43 PVLAN Port Setting ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 65 Primary VLAN is included the Primary VLAN Type is assigned in the Private VLAN Configuration section. To apply the settings, click Submit. 5.11.6 PVLAN Status Fig. 44 PVLAN Status View the Private VLAN status information. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 66 LV state. Leave All Timers Default: 1000 Controls the period to initiate the garbage collection of registered VLAN. The timer is required on a per-Port, per-GARP Participant basis ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 67: Quality Of Service (Qos)

    The priority here always the higher queue will be processed first, except the higher queue is empty. Weighted Round Robin This scheme allows users to assign new weight ratio from 1 to 10 for each class where 10 is scheme the highest ratio. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 68 The traffic injected to the port follows the queue level to be forwarded, but the outgoing traffic does not bring the queue level to next switch. To apply the settings, click Submit. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 69 COS 7 → Queue 7 For each value in the CoS column, select the queue from the Queue drop-down list. To apply the settings, click Submit. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 70 16 to 23 24 to 31 32 to 39 40 to 47 48 to 55 56 to 63 To apply the settings, click Submit. To cancel settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 71: Multicast

    Query Maximum The response time for querier detects to confirm there are no more directly connected group Response Time members on a LAN. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 72 The IGMP Snooping Table show multicast IP address, VLAN ID from the multicast group, and the interface member ports of the multicast group (256 multicast groups). To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 73 GMRP Setting Configure the GMRP settings: GMRP Global Select Enable or Disable and click Submit. Setting GMRP Port Select to Enable or Disable GMP Port Setting and click Submit. Setting ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 74: Routing

    Count the static entries that user configured. Count Dynamic Entry Count the ARP table dynamically learnt. Count To apply the settings, click Submit. To reload the information in the ARP Table, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 75 Configure the IP Table settings: Interface Select the interface. The alias IP and its subnet mask Alias IP Address (A.B.C.D/M) To add the interface, click Add. To delete the interface, click Remove Selected. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 76 The destination address netmask of static route entry. Gateway The gateway IP address of static route entry. Distance The distance of static route entry. To add the settings, click Add. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 77 Interface Show the VLAN Interface wherever the network connected to or learnt from. Status Shows the entry status is active or not. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 78 Example: 192.168.10.0/24. To add a routing network, enter the network address and click Add. To delete the selected network address, click Remove Selected. To reload the RIP information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 79 Interface The IP interface. RIP Version RIP version of IP interface. (RIPv1, RIPv2 or Both) To apply the settings, click Submit. To reload the RIP interface configuration, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 80 Routing for Enter the Network Address and the Area ID and click Add. Network To delete the network address and area, click Remove Selected. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 81 The Retransmit time specifies the number of seconds between link state advertisement transmissions. The default value is 5 seconds. To apply the settings, click Submit. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 82 Represents whether the specified Area is a stub area or not. The possible values are No Defined, No Summary and Summary. Summary is used to advertise summary routes To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 83 Shows the learnt IP interface of the next hops. Interface Shows the connected local interface. To reload the information, click Reload. OSPF Database Fig. 63 OSPF Database Page To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 84 This is the virtual IP of the VRRP domain. This is the Gateway IP of the clients. To add a the settings, click Add. A new entry is created in the Virtual Router Interface section. Virtual Router Interface Configure the Virtual Router Interface settings: ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 85 While the VRRP Master link is failure, the VRRP Backup will take over its job immediately VRRP MAC This field indicates the VRRP MAC in this configuration entry. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 86: Snmp

    A security level is the permitted level of security within a security model. A combination of a security model and a security level determines which security mechanism is used for an SNMP packet. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 87 DES Password Enter the password for SNMP v3 user DES Encryption. To add a the settings, click Add. To delete the settings, click Remove. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 88 Version Select the SNMP trap version type, v1 or v2c. To add a the settings, click Add. To delete the settings, click Remove. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 89: Security

    Fig. 69 MAC Filter Group To add a MAC Filter Group, enter a name and click Add. To delete a group, click Delete. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 90 Permit: Permit traffic from specified sources. Deny: Deny traffic from those sources. To add a the settings, click Add. To delete the setting, click Delete. IP Filter Fig. 70 IP Filter ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 91 The source port of L4 protocol (TCP/UDP) Destination IP The destination IP address of the packet. Destination The mask of the IP address. Wildcard Destination Port The destination port of L4 protocol (TCP/UDP). ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 92 Filters attached to the ports on the switch. View Filter Attach List: Port The port number. MAC Filter The filter attached MAC address IP Filter The filter attached IP address ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 93 IEEE 802.1X is the protocol that provides authentication to obtain access to IEEE 802 LANs. It is port-base network access control. The switch can control which connection is available or not. Fig. 73 802.1X Setting ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 94 Secondary Radius Server could be set in case of the primary radius server down. Server IP 802.1X Local User Add Account/Password for local authentication. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 95 After configuring the Radius Server or Local user list, you need to configure the authentication mode, authentication behavior, applied VLAN for each port and permitted communication. Fig. 74 802.1X Port Setting Fig. 75 802.1X Timeout Setting ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 96 To send EAP Request to supplicant to request re-authentication, click Re-authenticate Selected. • To reset the configurable 802.1X parameters of selected port to the default values, click Default Selected. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 97 Observe the port status for Port control, Authorized Status, Authorized Supplicant and Open Control Direction from each port. Fig. 76 802.1X Port Status To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 98: Warning

    The switch supports 1 DI. Relay trigger when DI states change to Hi or Low. To apply the settings, click Submit. To cancel the settings, click Cancel. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 99 Ring Event Ring Status has changed or backup path is activated. SFP Event SFP transceiver state is abnormal. To apply the settings, click Submit. To cancel the settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 100 The port is connected to another device. Down The port is disconnected. Both Link status is changed. To apply the settings, click Submit. To cancel the settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 101 Syslog server User assigned. Both Both Local Mode and Remote Mode are enabled. To apply the settings, click Submit. To cancel the settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 102 Email 4 To The fourth email address to receive email alert from the switch. Max. 40 characters. To apply the settings, click Submit. To cancel the settings, click Cancel. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 103: Diagnostics

    The VLAN ID of neighbor device on the same network segment. To apply the settings, click Submit. To cancel the settings, click Cancel. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 104 The MAC Address Table can be shown based on the MAC Address Type and based on the Port. To delete an address, select the checkbox and click Remove. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 105 Fig. 84 Port Statistics To clear the settings, select the port checkbox and click Clear Selected. To clear all settings, click Clear All. To reload the information, click Reload. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 106 Analyze the traffic of all the monitored ports at this port, without affecting the flow of traffic on the port being monitored. Only one RX/TX of the destination port can be selected. To apply the settings, click Submit. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 107 Fig. 87 Ping To start the ping, enter the Destination IP address of the target device and click Ping. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 108: Verify Operation

    Any failure in port link, ping, power, DO or DI State by SW control Alarm No failure occurs Green On Detected Digital Input Digital Input No Digital Input Ethernet LED Indicators Fig. 89 RJ45 connector LED indicator ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 109: Sfp Port Led Indicators

    Status Description SFP Port Green On Link established Green blinking Packets transmitting/receiving Green Off Link is inactive Amber On Link Speed 1 Gbit/s Amber Off Link speed 100 Mbit/s ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 110: Maintenance And Troubleshooting

    To restore settings: Click Choose File and browse the target folder, then select the configuration file and click Upload. To back-up settings in a configuration file: Click Save and browse where to save the file. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 111 To restore the settings from a configuration file: Click Restore and then browse and load the backup configuration file from the USB memory. To save the settings in a configuration file to the USB memory: Click Save to USB. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 112: Firmware Upgrade

    Maintenance and Troubleshooting 110 (124) Firmware Upgrade Download the latest firmware at www.anybus.com/support. When a firmware upgrade is finished, the system will automatically reboot. Before performing a firmware upgrade, inform attached network users. When a firmware upgrade is finished and the switch is rebooted, check that the Software Version number is updated in the System >...

  • Page 113: Reset To Default

    A pop-up message appears, click OK to accept. In the web interface top menu, click Reboot. To reboot the switch, click OK. Result → For the changes to take effect, the system auto reboots the switch. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 114: Factory Reset Button

    Use a pointed object (such as a ballpoint pen) to press and hold the reset button for >10 seconds. Result → Once the reset button is released, the switch reboot automatically. → When the switch has successfully rebooted, the SYS LED turns green. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 115: Technical Data

    Standards IEC60950-1 Compliance, EN61000-6-2/EN61000-6-4, CISPR 22, FCC part 15B Class A, EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5, EN61000-4-6 CS, EN61000-4-8 Magnetic Field, EN50121-4 For more information, refer to datasheet at www.anybus.com/support. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 116 This page intentionally left blank...

  • Page 117: A About Dhcp Option 82

    IP and the DHCP Option 82 server. The Circuit ID is a 4-byte number generated by the Ethernet switch—a combination of physical port number and VLAN ID. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 118: B About Port Trunk

    802.1Q VLAN will be reset. • Multicast Filtering will be reset. • Port Lock will be reset and disabled. • Set Device IP will be reset. • Mirror will be reset. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 119: C About Connectivity Fault Management (Cfm)

    Each MEP transmits a periodic multicast Continuity Check Message inward towards the other MEPs. The switch support Hardware CCM transition. The transition/receiving interval can up to 3.3ms to support detection Gigabit Ethernet cooper interface in 10 ms. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 120: D About Redundancy

    MSTP is a direct extension of RSTP that can provide an independent spanning tree for different VLANs. It simplifies network management by limiting the size of each region, and prevents VLAN members from being segmented from the group. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 121 To configure the MSTP setting, the STP Mode of the RSTP Settings page should be changed to MSTP mode first. After enabled MSTP mode, user can go to the MSTP Settings page. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 122: E About Ethernet Ring Protection Switching (Erps)

    Node will be responsible for unblocking its end of the RPL to allow RPL to be used as a backup link. The RPL is the backup link when one link failure occurs. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 123: F About Virtual Local Area Network (Vlan)

    The uplink port is usually the primary VLAN. A primary VLAN contains promiscuous ports that can communicate with the Secondary VLANs. Secondary VLAN The client ports are usually defined within secondary VLAN. The secondary VLAN includes Isolated VLAN and Community VLAN. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 124: G About Open Shortest Path First (Ospf)

    The routers/routing switches within the same area update its routing table. Any change in routers/routing switches information is flooded to all routers/routing switches in the same area. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...

  • Page 125: H About Simple Network Management Protocol (Snmp)

    An agent is a management software module that resides in a managed switch. An agent translates the local management information from the managed device into a SNMP compatible format. The manager is the console through the network. ® SCM-1202-151 1.1 en-US Anybus Managed Industrial L3 Switch User Manual...
  • Page 126 last page © 2020 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-151 1.1 en-US / 2020-02-11 / 17125...
