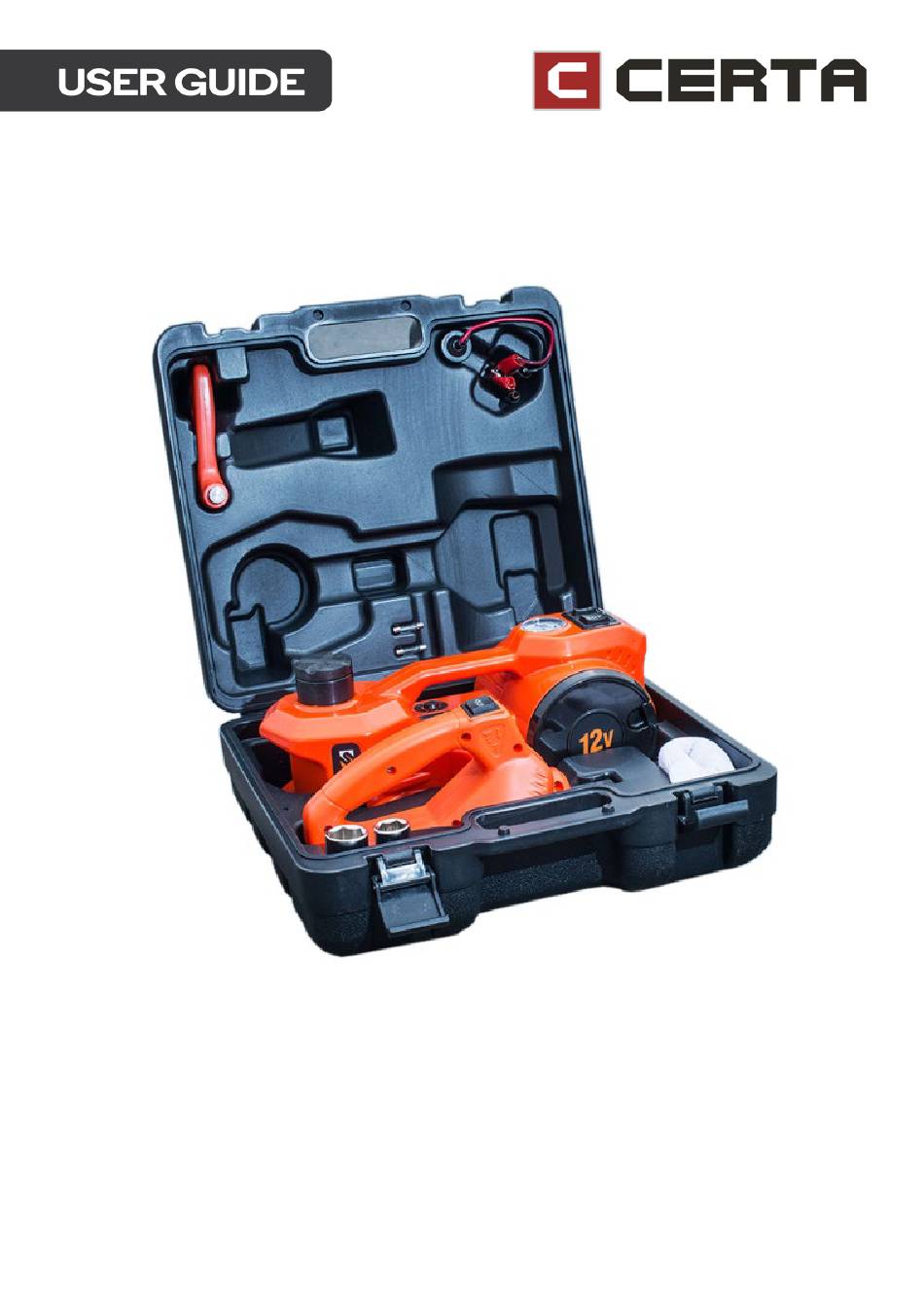

- Page 1 3 IN 1 TYRE REPAIR TOOL KIT WITH ELECTRIC JACK & WRENCH CT3TRTKEJWA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • The material of the cover is plastic, which is easy to break, please handle it with care when using. Then if carrying it, please with the handle, not lifting the pressure rod. • Do not attempt to modify or alter the machine. •... - Page 4 COMPONENTS 2-in-1 electric jack Electric impact wrench Plastic toolbox 12V DC power cable Safety hammer Socket adapters (17-19mm, 21-23mm) Battery clamp connecting cable Inflatable needle and hose connectors Fuse 10 Hex wrench Gloves 1 pair...
- Page 5 OVERVIEW Diagram 1 Pressure rod The lifting mechanism of the jack Handle For transporting the product Base plate Stabilises the load Rubber foot Shockproof and anti-skidding Line winding box For storage of cables and lines...
- Page 6 Diagram 2 Switches See Diagram 3 Toolbox For storage of tools and air hose Pressure gauge Displays the current pressure level Safety valve Unlock the pressure rod in an emergency Protective pad Prevents damage to the car chassis Adjust the height of the pressure rod and Adjusting Screw automobile chassis...
- Page 7 Diagram 3 Directional switch Up/Close/Down Function switch Inflate/Close/Lift Down Air bag Inflation Jack Lift Close...
-
Page 8: Operation
OPERATION Jack function Turn off the car and apply the hand brake. It is recommended that the wheels of the vehicle be chocked. Ensure no one is in the car while the jack is in use. Ensure the switch is in the closed “O” position, then connect the power plug into the car’s dashboard power supply. - Page 9 Figure 1 Choose and apply the correct socket to the wrench head Figure 2 Apply the wrench to wheel nut and press the left side of the switch ( ) to start; the nut will be loosened within 3 seconds. Usage of the safety valve Remove the head of safety valve (see Diagram 2, point 4).
-
Page 10: Specifications
SPECIFICATIONS Electric jack Input voltage DC 12V Rated power 150W Max. current Fuse Power cable length 3.5m Max. loading car weight 3.0T 135-360mm (Common Item) Lifting height range -15-50 ℃ 155-450mm (Update Item) Operable temperature Inflator pump Input voltage DC 12V Inflating speed 35L/min Max. -
Page 11: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution The two switches are not set Set the switches to their correct to the correct position. positions. The power cable is not Press the plug inside the outlet connected securely to the and make sure the LED indicator vehicle’s dashboard power on power cable plug is on. - Page 12 Reduce the load by relocating Load is too heavy. the jack to other lifting points of the vehicle. The jack is leaking hydraulic Unit is defective. Contact fluid internally. Kogan.com The jack motor is The jack has not been used running but does not Set the jack Up/Down switch to for a long time and needs to...
- Page 13 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
