Summary of Contents for Stern PERFECT TIME 2032

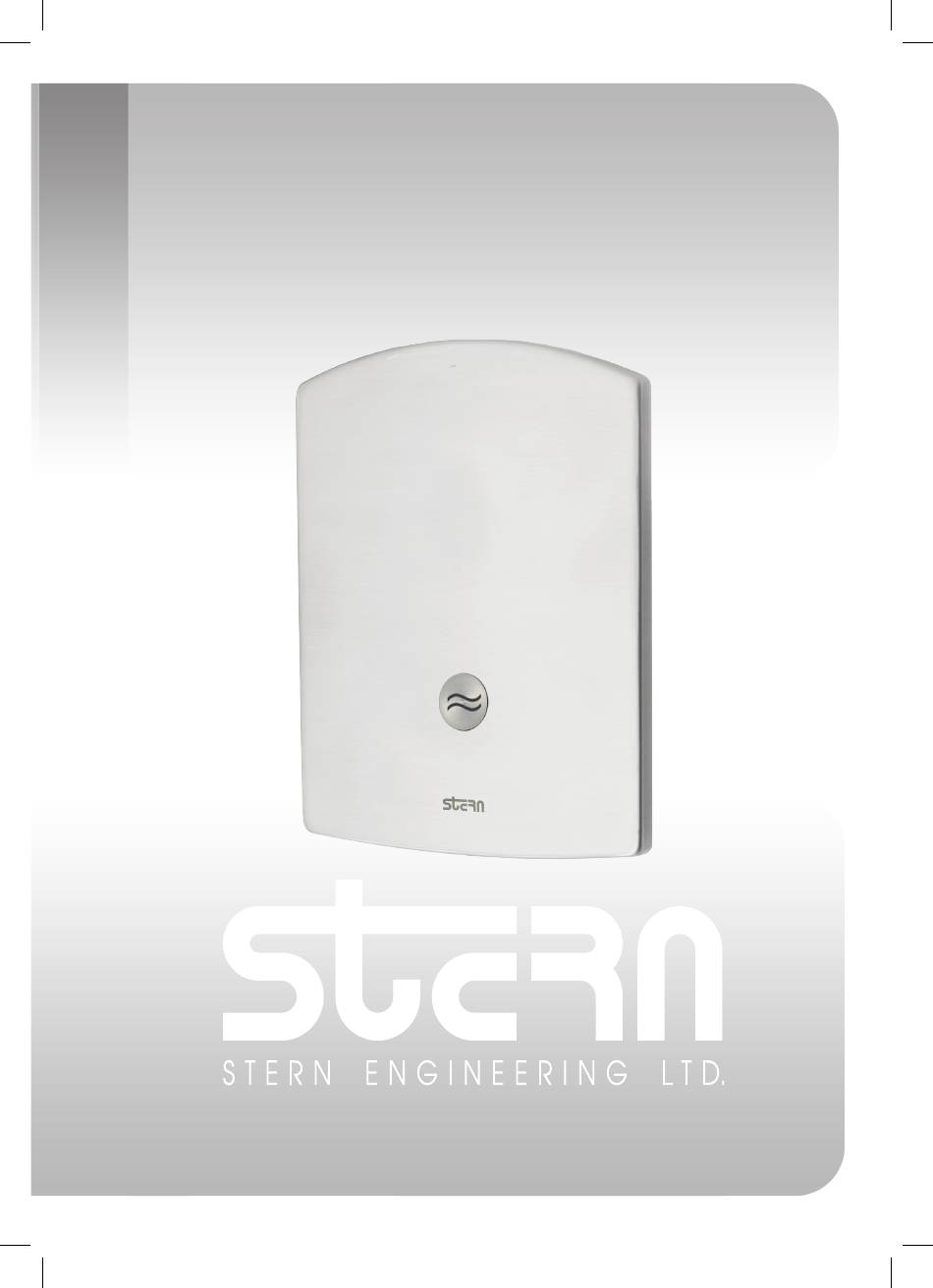

- Page 1 INSTALLATION AND MAINTENANCE GUIDE PERFECT TIME 2032 / 2032 E E L E C T R O N I C T O I L E T F L U S H V A L V E OPERATED BY PIEZO ELECTRIC TECHNOLOGY...
- Page 2 I N DEX TECHNICAL DATA OPERATION PACK CONTENTS PERFECT TIME 2032 PERFECT TIME 2032 E PRE-INSTALLATION INFO INSTALLATION FLOW TIME ADJUSTMENT 24 HS HYGIENE FLUSH BATTERY REPLACEMENT INSTRUCTIONS CARE AND CLEANING LIMITED WARRANTY SERVICE CHECK LIST SPARE PARTS LIST...
-
Page 3: Technical Data
TE CHN ICAL DATA 9V low voltage system Power specification: Power Supply: Internally mounted 9V battery or 9V transformer 1.0-8.0 bar (14.5 – 116.O PSI). Operating water pressure: With water pressure of more than 8 Bars, use a pressure reducing valve for reduction. Default flow rate: Programmable flow time: Maximum 111 seconds... -
Page 4: Pack Contents
5. 4 x Screws 6. 1 x Allen key 7. 1 x Battery box with battery Perfect Time 2032 E 1. 1 x Plastic box with concealed flush valve 2. 1 x Wall cover plate with the electronic unit 3. -
Page 5: Pre-Installation Info
Adjust it using the four screws provided. 7) If your model is Perfect Time 2032 E, place the transformer cable near the electricity plug and thread the transformer’s wire to the box. -
Page 6: Installation
10) Turn on the water supply. Make sure that there is no water leakage. 11) If your model is Perfect Time 2032 stick the battery box inside the product box using the two sided adhesive foam tape. The cable connection must point down. - Page 7 (LED) will let you know when you have passed between one level to the other. The default flow time in Perfect Time 2032 is 2.4 sec. Each adjusting level has a number of steps to arrive to the next level. The duration of each step is different at each level.
- Page 8 4 times and 5 times to leave the adjusting mode. When that occurs, the activation button of the Perfect Time 2032 will be adjusted to the desired flow time. 8) If you need to perform steps at adjusting level 2, wait after you see the LED blinking twice and then, perform the needed quantity of steps (with a maximum of 100 steps of 0.1 second).
- Page 9 7) The LED will blink five times to leave the adjusting mode. When that occurs, the button at the Perfect Time 2032 will perform now a 24 hours hygiene flush. Important: •...
-
Page 10: Battery Replacement
This product is covered by a limited warranty of two years from date of purchase. During this period, STERN undertakes, at its option, to repair or replace any faults caused by defective materials or manufacturer defaults that may arise (see Stern Warranty). -
Page 11: Service Checklist
S ER VICE CHEC K LI ST Check the flow time. See page 5. Check the connection between the piezo button connector, the power to the solenoid and the solenoid connector. Check that the battery box is correctly connected. No water is coming Check the solenoid valve. - Page 12 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel Tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com Tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com www.sternfaucets.com www.sternfaucets.com...
