AuthenTrend ATKey.Pro User Manual

Fingerprint enabled security key
Hide thumbs Also See for ATKey.Pro:
Table of Contents

Advertisement

Quick Links

ATKey.Pro User Guide
rev: 1.6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATKey.Pro and is the answer not in the manual?

Questions and answers

Related Manuals for AuthenTrend ATKey.Pro

Summary of Contents for AuthenTrend ATKey.Pro

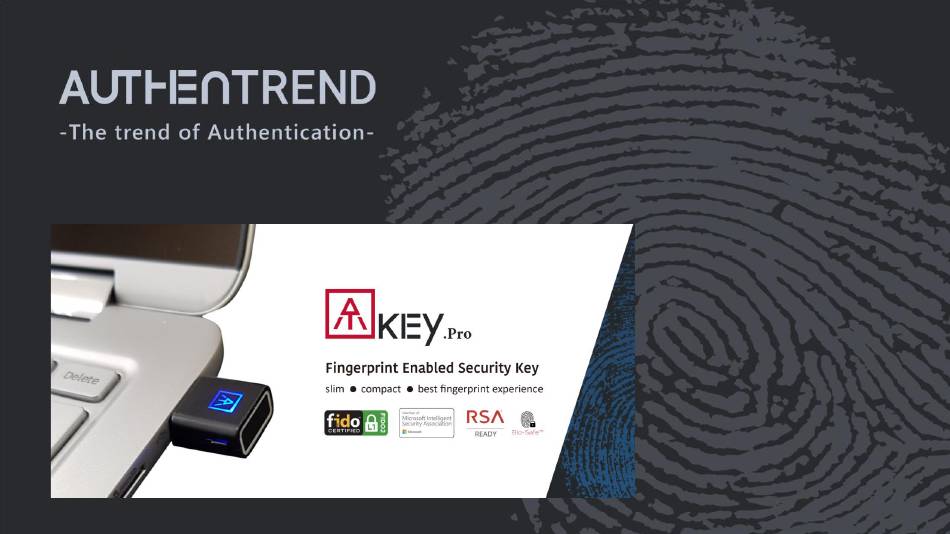

  • Page 1 ATKey.Pro User Guide rev: 1.6...

  • Page 2: Table Of Contents

    | Table of Content • About ATKey.Pro ………………………………… Page 3 • Outlook ……………………………………………… Page 4 • Functionalities …………………………………… Page 5 • Fingerprint enrollment ………………………. Page 6 • APP – ATKey for Windows ………………….. Page 9 • Non-Windows 10 Users ……………………… Page 11 •...

  • Page 3: About Atkey.pro

    Fingerprint enabled USB security key • HID device, no driver needs • Portable key for any Windows, Mac or Chromebook • Up to 10x fingerprints, matching < 1 sec., FAR < 1/50,000, FRR < 2 % • FIDO2 certificate https://authentrend.com/atkey-pro/...

  • Page 4: Outlook

    | Outlook Fingerprint sensor Tri-color LED/Logo Click-able button Keycode • Each key has his own unique keycode • It’s equal to serial number Silicon keychain • Check keycode for production records, customer service and warranty Secure MCU Crypto engine FIPS 140-2 level3 validated MCU...

  • Page 5: Functionalities

    | Functionalities * Please visit video for below 3 steps: https://youtu.be/-9ZCtPG-1J0 Step 1 Step 2 Step 3 Enroll fingerprint to ATKey Register ATKey to device or Service Fingerprint matching for authentication Azure AD Passwordless logon https://youtu.be/Q1CylOa8lV8 FIDO2 Passwordless login Microsoft account or other FIDO2 authentication via Browsers on Windows , Mac and Chromebook...

  • Page 6: Fingerprint Enrollment

    Standalone enrollment Enroll from Windows Settings • • • Insert ATKey.Pro into USB port If your OS is Windows 10 build 1903 or later Download “ATKey for Windows” app from • Check Youtube video here for the detail: versions, you can manage ATKey as security key Windows Store to manage ATKey: •...
  • Page 7 Windows Settings => Account => Sign-in options => Security Key => Click “Manage”, • Setup “Security Key touch fingerprint sensor to setup Fingerprint” • Type-in PIN code, following screen hint to enroll fingerprint, until “All Set!” Add “Security Key PIN” first; this PIN code will write into ATKey.Pro...
  • Page 8 Click “Process” [firmware 1.00.5 or previous version] [firmware 1.00.6 or later version] Cyan LED is flashing Blue LED is flashing Remove ATKey.Pro and re-insert to Remove ATKey.Pro and re-insert to USB port USB port Cyan LED is flashing Blue LED is flashing...

  • Page 9: App - Atkey For Windows

    Launch “ATKey for Windows” app (version 2.0.57.0 or later version) • Click “Add and Register ATKey” – please make sure ATKey.Pro inserts to USB port and LED shows blue ON around 12 times touch/enroll to finish ONE fingerprint enrollment Verify enrolled fingerprint to confirm Click to refresh the page ATKey.Pro fingerprint enrolled and...
  • Page 10 • “Check for Update” • Select encrypted firmware image to upgrade manually • Please wait till 100% done, then plug ATKey.Pro off USB port; re-insert to USB port, waiting ~15 sec to boot to new firmware (LED from White to Blue ON).

  • Page 11: Non-Windows 10 Users

    | for non-Windows Users • If you are using non-Windows 10, or your Windows 10 is earlier than build 1903 • Enroll fingerprint into ATKey.Pro via • Standalone enrollment • Or Chrome Canary (https://www.google.com/chrome/canary/) • Here is quick guide for Chrome Canary: User presence needs - touch dongle by any finger From “Settings”...
  • Page 12 | for non-Windows Users • If you are using non-Windows 10, or your Windows 10 is earlier than build 1903 • Enroll fingerprint into ATKey.Pro via • Standalone enrollment • Or Chrome Canary (https://www.google.com/chrome/canary/) • Here is quick guide for Chrome Canary: •...

  • Page 13: Fingerprint Highlights

    For fingerprint enrollment, users need to touch sensor continuously around 12 times to complete the “template”. • Following FIDO2 spec., adding PIN code into ATKey.Pro is preferred; user can add PIN code into ATKey.Pro through Windows Settings (1903 or later builds) or adding from ATKey for Windows (2.0.58.0 or later version) •...

  • Page 14: Windows Hello

    | App “ATKey for Windows” – Windows Hello • ATKey management – Companion with Windows (Windows Hello login via CDF) • If your Windows 10 joined Azure AD, please ignore this page since FIDO2 is ready for Azure AD login, it may conflict with Windows Hello Guidelines for Windows Hello: •...
  • Page 15 | App “ATKey for Windows” – add/delete fingerprints • ATKey management – Add/Delete fingerprints, fingerprint sensor calibration • If you feel something wrong of fingerprint, • Here will delete all enrolled fingerprints, “OK” • Enroll new fingerprint in by ~12 times touch, doing Calibration to re-calibrate the sensor to delete them following UI message;...

  • Page 16: Fido2: Azure Ad

    | ATKey for Azure AD Passwordless login (Admin-Backend) • Does your company/org. license Azure AD? • If yes, does your authentication policy allow “add method” including “security key”? • Please check below links to learn how to enable security key for Azure AD: •...
  • Page 17 | ATKey for Azure AD Passwordless login (Client) User registration and management of FIDO2 security keys Browse to https://myprofile.microsoft.com Sign in by ID/Password or app Click Security Info • If the user already has at least one Azure Multi-Factor Authentication method registered, they can immediately register a FIDO2 security key.

  • Page 18: Fido2: Microsoft Account

    • For Password-less login to Microsoft account - Windows 10 build 1809 or later version via Edge/Chrome browser, USB mode: • You can login to add ATKey.Pro as security key for your Windows account from here: https://account.microsoft.com/account • Login by ID/Password first •...
  • Page 19 | ATKey for FIDO2 online login • You can find all your registered keys, click “Manage your sign-in methods” • Sign-out to logon by security key (password-less) Use security key Fingerprint verified to login...

  • Page 20: Fido U2F

    | ATKey for FIDO U2F • (e.g.) Google account – add ATKey.Pro as security to Google account: • ATKey.Pro is FIDO U2F ready, it can be a security key for 2 factor authentication. • Here are FIDO2 U2F ready service: •...
  • Page 21 If you want to login your google account with ATKey.Pro later, please uncheck “Don’t ask again on this computer” (default is checked). But if you checked and login, but you want to use ATKey.Pro as 2 factor to login again, please revoke all “device you trust” as below:...
  • Page 22 Take notes or leverage password to encrypted and store credentials into for your different kind of web services management SaaS to store them on ATKey.Pro instead of public cloud; login web party cloud …. But is it secure? services via fingerprint matching, secure and convenience.
  • Page 23 | Bio-Safe™ - how it works? • Please check or download user steps to setup Bio-Safe™ with ATKey.Pro: https://www.authentrend.com/download/ATKey.Pro_Bio-Safe_user_steps.pdf • Before start, please make sure below things are ready: Check and upgrade firmware of ATKey.Pro to 1.00.9 or later version ATKey.Pro is ready with fingerprint enrolled...

  • Page 24: Led

    | LED white cyan blue green Standalone enrollment Flashing Touch your enrolled User touch needs (but (flashing from slow to fast, fingerprint to verify any finger is ok) then done by GREEN meaning enrolled fingerprint verified PASS); Fingerprint calibration (white flashing, done back to blue) •...
  • Page 25 | Certificate and Regulation...
  • Page 26 Thank You!! www.authentrend.com contact@authentrned.com...
