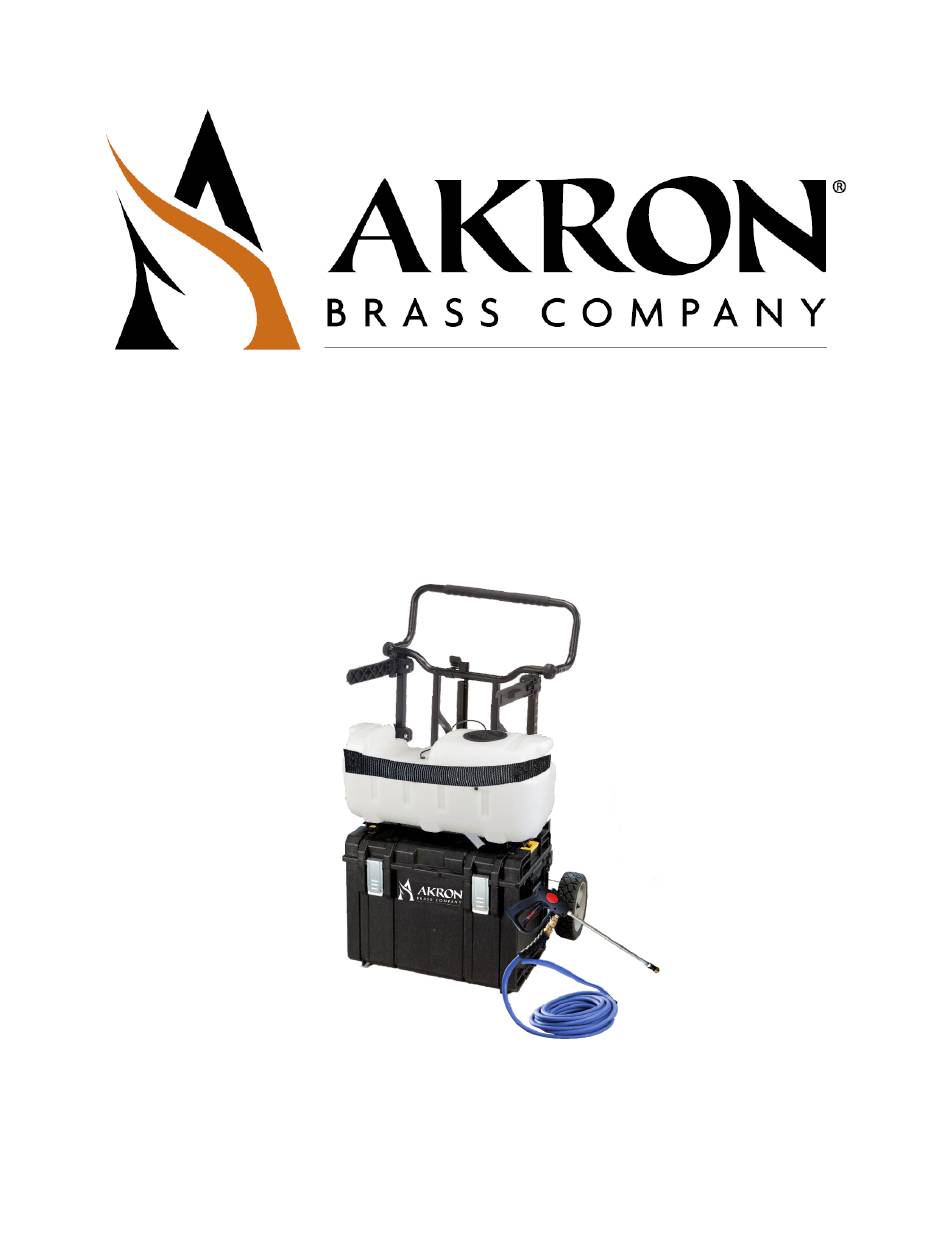

FS100

PORTABLE SPRAYER SYSTEM

INSTALLATION, OPERATING,

& MAINTENANCE INSTRUCTIONS

FSG-MNL-00219

Table of Contents

Need help?

Do you have a question about the FS100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Akron FS100

Page 2: Table Of Contents
FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 TABLE OF CONTENTS 1. General Safety ................3 2. System Specifications ..............8 3. System Components ..............9 4. Initial System Setup ..............12 5. General Operation ..............14 6. Maintenance Instructions ............18 7.
Page 3: General Safety
Keep a fire extinguisher nearby. General warnings • o Read and fully understand the Akron FS100™ Portable Sprayer System Manual prior to using the sprayer. o Read and fully understand Akron-approved product labels prior to using any liquid product with the Akron FS100™ Portable Sprayer System.
Page 4 The Akron FS100™ Portable Sprayer System should never be used in a hazardous environment. o The Akron FS100™ Portable Sprayer System should never be used in an area containing volatile chemicals or in any area containing volatile or explosive levels of gas, vapor, or particulates.
Page 5 Akron Brass. o Do not attempt to modify this sprayer. Use only with manufacturer’s original parts. Alterations or modifications void your Akron FS100™ Portable Sprayer System warranty, agency approvals, and create safety hazards. Akron Brass, Inc.
Page 6 • The Akron FS100™ Portable Sprayer System shipping weight is 90 lbs. and 130 lbs. with battery. Move and lift the shipping container using the appropriate method.
Page 7 See technical data in this and all other equipment instruction manuals. Read fluid and solvent manufacturer’s SDSs and recommendations prior to use. SAFETY LABELS Familiarize yourself with these labels and their locations on the Akron FS100™ Portable Sprayer System. Figure 1 101-00353-000 Figure 2 101-00355-000 Akron Brass, Inc.
Page 8 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 Figure 3 101-00356-000 Figure 4 101-00357-000 Figure 5 101-00359-000 Akron Brass, Inc. 343 Venture Blvd. Wooster, OH 44961 www.akronbrass.com...
Page 9: System Specifications
FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 2. SYSTEM SPECIFICATIONS MECHANICAL Dimensions 44"H x 27"W x 23"D – with cart 26.5”H x 23”W x 14”D – without cart Weight – Empty Unit Weight with user supplied battery: 130 lb Unit Weight (without cart) with battery: 100 lb Weight –...
Page 10: System Components
INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 3. SYSTEM COMPONENTS Call Akron Technical Service for Help With Parts 800-228-1161 Figure 6 System Component Illustration. Not all parts illustrated are available from Akron for spare parts. SPARE COMPONENTS WAND ASSEMBLY 038-00112-000 PUMP ASSEMBLY...
Page 11 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 EXTENSION CORD This system does not include an extension cord. To use the installed battery maintainer/charger, a 3-prong receptacle is installed. When using an extension cord, ensure it is in good condition. Inspect cords periodically and replace if damaged.
Page 12 INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 4. INTIAL UNIT SETUP The FS100™ System includes all the necessary components for operation, EXCEPT the battery. Use the following instructions to help procure and install a suitable battery and conduct an initial operating test. Battery Requirements...
Page 13 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 7. Turn the system back ON. 8. Using the wand, depress the handle to spray the liquid. Adjust the nozzle to test different spray patterns. 9. Depress and release the handle several times to make sure the spray pressure is consistent each time and that the liquid stops flowing as expected.
Page 14: General Operation
FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 5. GENERAL OPERATION Before starting operation, a nozzle should be selected based upon the desired application. The system includes three different styles and they can easily be swapped out by using a wrench.
Page 15 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 4. FILLING UP RESERVOIR • BEFORE STARTING, CHECK TO ENSURE THE RESERVOIR IS EMPTY. • IF THE RESERVOIR IS NOT EMPTY, REMOVE EXCESS LIQUID AND FLUSH THE SYSTEM WITH WATER.
Page 16 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 6. POWER REQUIREMENTS THE SYSTEM EITHER OPERATES FROM THE INSTALLED 12VDC BATTERY OR WHEN PLUGGED INTO A STANDARD GFCI 120VAC OUTLET VIA THE INTEGRATED BATTERY CHARGER. UNIT SHOULD BE TURNED OFF WHEN NOT SPRAYING.
Page 17 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 9. TURNING OFF SYSTEM WHEN YOU HAVE FINISHED OPERATING THE SYSTEM, FLIP THE SWITCH TO THE OFF POSITION. THIS DEACTIVATES THE PUMP. WITH THE WAND POINTED IN A SAFE DIRECTION, RELIEVE PRESSURE IN THE SYSTEM BY PULLING THE WAND TRIGGER.
Page 18: Maintenance Instructions
FSG-MNL-00219 6. MAINTENANCE INSTRUCTIONS For the Akron FS100™ Sprayer to remain functional, the equipment should be cleaned on a regular basis. In addition to general exterior cleaning of the unit, there are THREE user-serviceable areas: sprayer nozzle, piston pump intake strainer, and piston pump seals and check valves.
Page 19 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 PISTON PUMP INTAKE STRAINER A low-pressure in-line liquid strainer is mounted to the inlet of the piston pump. The strainer protects the pump from debris that might accumulate in the 5-gallon liquid reservoir. The strainer has a composite, non-metallic housing with a stainless-steel mesh strainer element.
Page 20: Troubleshooting Instructions
Do NOT use a chemical in the unit that is not chemically compatible. If you encounter the issues listed below, use the suggested troubleshooting methods. If you encounter an issue that is not addressed in this manual, contact the Akron customer service center. Excessive liquid dripping or leaking...
Page 21 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 8. BATTERY CHARGER – GENERAL OPERATION, INSTALLATION, AND MAINTENANCE FULLY AUTOMATIC AND INSTALLED IN THE PUMP ENCLOSURE. REFER TO BATTERY CHARGER MANUAL INCLUDED WITH THE UNIT. Akron Brass, Inc. 343 Venture Blvd.
Page 22: Chemical Compatibility List
The FS100 provides a means to apply a cleaning agent, but Akron Brass makes no warranties or representations regarding the effectiveness of the selected cleaning agent for disinfection or decontamination purposes.
Page 23 The list below is intended to provide guidance to the user about the active ingredients found in over the counter disinfectants that are suitable for use with the FS100 and its components. This list is intended to provide the user / AHJ guidance for selection of their preferred agent. Any deviation from this list will void the warranty as it may cause damage to the sprayer system and/or create risk to the user.
Page 24 FS100™ PORTABLE SPRAYER SYSTEM INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 Thoroughly inspect both the inside and outside of the sprayer and examine the components before each use. Check for cracked and deteriorated hoses, leaks, clogged nozzles, and missing or damaged parts. If damaged, have the product repaired before use.
Page 25: Warranty Statement
INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS FSG-MNL-00219 WARRANTY STATEMENT REFER TO WARRANTY STATEMENT ON AKRON BRASS WEBSITE: https://www.akronbrass.com/customer-support-warranty/ Akron FS100™ Portable Sprayer System carries a one (1) year warranty on parts only. Revision History Revision Reason Updated 05/22/2020 - A New Instruction Akron Brass, Inc.
